ALIBI ALI-CD5021VSS Quick Installation And User Manual

ALI-CD5021VSS 1080p HD-TVI
Extreme Outdoor IR Dome Camera
Quick Installation and User Guide
The ALI-CD5021VSS camera feature a 1/2.9" Sony® CMOS image sensor that delivers HD-TVI high-
definition video resolution up to 1080p over RG59 coax or any standard analog CCTV cabling. This video
camera is ideal for security applications that require vandal proof, high resolution video in extreme
temperature ranges, and where salt water mist is present.
Features
/ " Sony® CMOS image sensor
1
2.9
•
HD-TVI technology produces 1080p HD video over cable in lengths up to 1640 feet
•
2.8 ~ 12 mm vari-focal lens (up to 8x zoom)
•
True day/night (ICR) captures sharp, clear images in low light and at night
•
HLC, D-WDR, 3D-DNR and Defog features
•
OSD (On-Screen Display) controls for customizing camera settings
•
-49 °F ~ 122 °F temperature operating range
•
IP67 weather-rated with ANSI 316 grade stainless steel housing
•

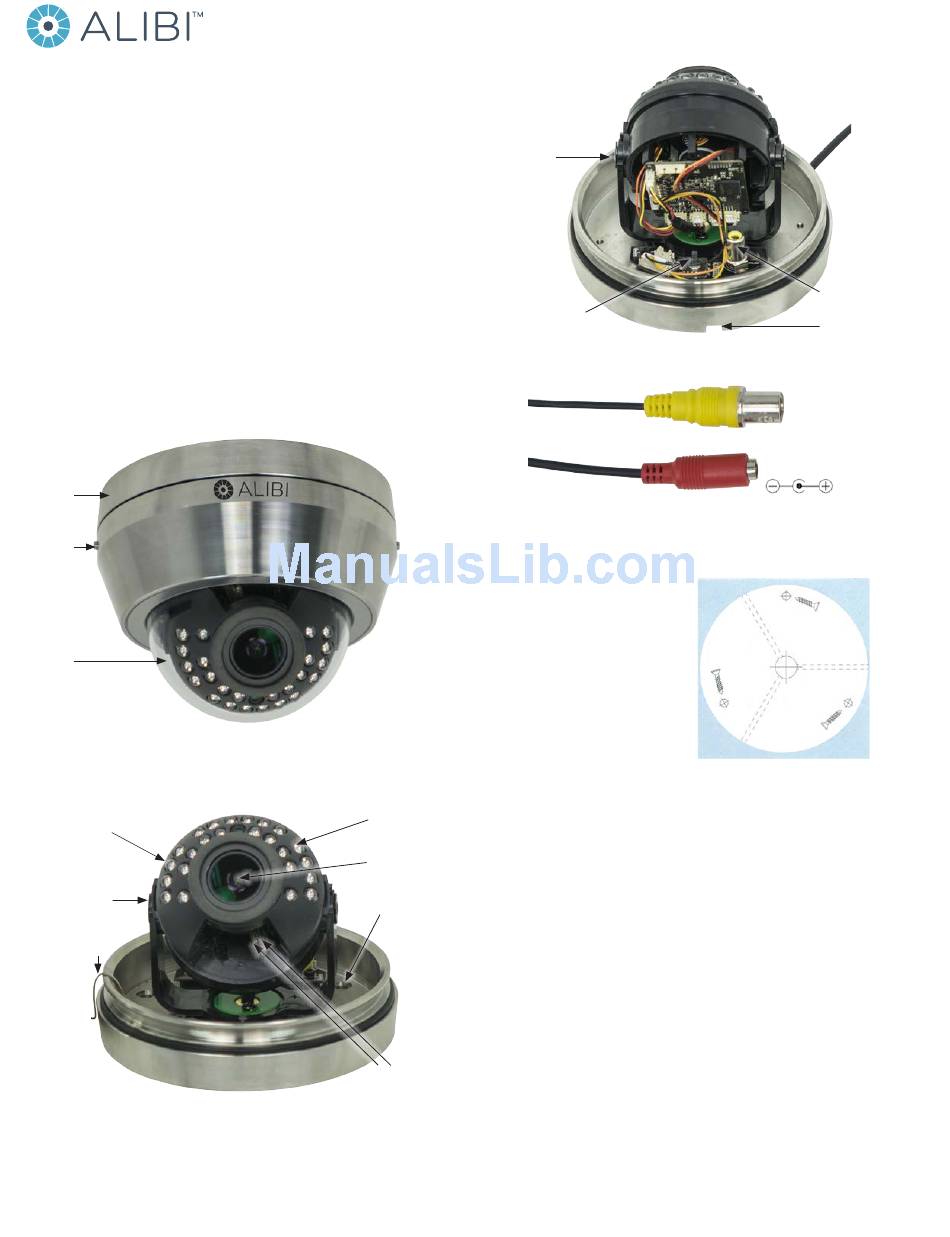

Camera
mounting
base
Dome
screw (2)
Camera
dome
cover
assembly
ALI-CD5021VSS camera
Camera
module
assembly
Gimbal
mount
Dome
tether
cable
Camera front view (with dome removed)
www.observint.com
1
Gimbal tilt
pivot point
set screw (2)
joystick
What's in the box
Camera assembly
•
Mounting screws with rubber seals (3)
•
Wall inserts (3)
•
Hex L-wrench
•
Drill template (see right image)
•
This installation guide
•
What you need
IR LED array
To install the camera, you will need:
Vari-focal lens
12 Vdc power source. See Specifications for wattage requirement.
•
(2.8 ~ 12 mm)
Silicone sealant
•
Tools for mounting the camera
Mounting
•
screw hole (3)
Different fasteners may be required for mounting the camera
•
Phillips #2 screwdriver
•
Protective covering for the drop cable connectors. These connectors are not waterproof.
•
Video and power extension cables. Video extension cable can be up to 1640 ft (500 m) long.
•
CCTV video setup monitor (optional)
•
Step 1. Install the camera
The camera includes hardware to install it directly to a mounting surface. Camera drop cables can be routed
through the mounting surface or through a cable channel in the base.
Focus - zoom
Before installation:
adjustments
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
OSD
Camera back view (with dome removed)
ALI-CD5021VSS Camera drop cable connectors
Drop
cable
RCA jack for setup
monitor cable
Cable channel
HD-TVI video
BNC Connector
Power
Connector
ALI-CD5021VSS_CQ
4/8/15
