ALIBI ALI-NS3022R Quick Installation Manual

ALI-NS3022R IP 2.1 MP IR Bullet Camera

Quick Installation Guide

This document guides you through the basic steps to install and initially configure the ALI-NS3022R
camera. The ALI-NS3022R camera features:
1/2.8" progressive scan CMOS
•
Up to 1920 × 1080 resolution
•
2.8 - 12 mm motorized varifocal lens
•
120 dB True Day/Night (ICR), 3D DNR
•
-22˚F ~ 140˚F operating range
•
Smart IR array, 100 ft range, 850 nm
•
Video analytics: Tamper detection, Line crossing, Intrusion Detection
•
For more information about the software features of this camera, please refer to the ALI-IP Camera V2
Software User Manual.

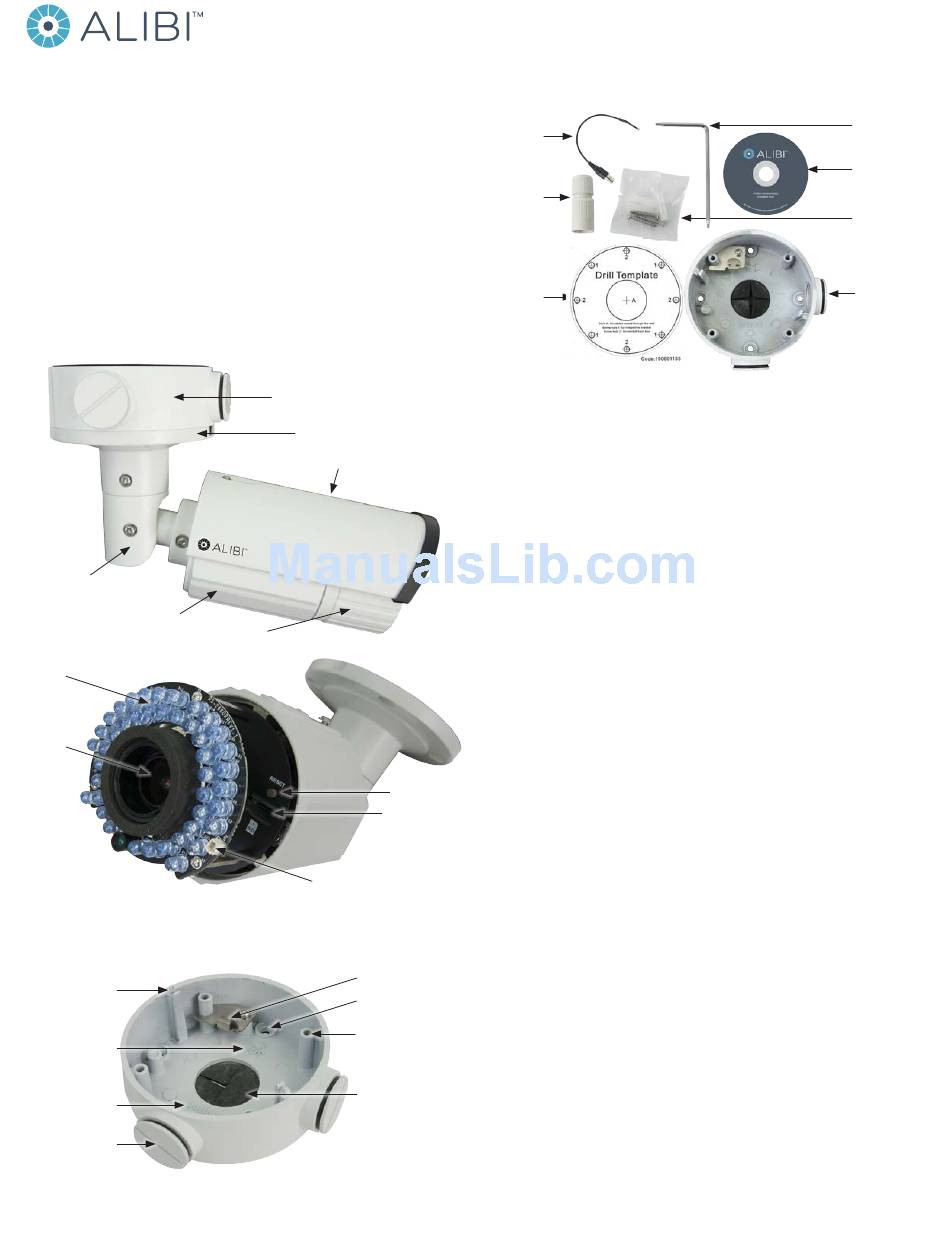

Articulated
mounting
bracket
Camera body
IR array
Lens
Camera with sun shield and lens cover removed
* Press the RESET button for 10 seconds when the camera is powering on or rebooting to restore the
default settings, including the user name, password, IP address, the port number, etc.
Camera base
locator pins
Top (up)
Bottom (down)
Conduit port (2)
Junction box detail
www.observint.com
1
Junction box assembly
(see detail below)
Camera mounting base
Sun Shield
Lens cover
Reset button
SD card slot
Video test cable connector
Safety cable hook
Mounting screw
hole (4)
Hole for camera
mounting screw (3)
Cable access
through mounting
surface
What's in the box
Your camera includes these items:
Video test
cable
Weatherproof
LAN coupling
Surface
mount drill
template
Before installing the camera
Make sure the device in the package is in good condition and all the assembly parts are included.
•
Make sure all the related equipment is power-off during the installation.
•
Check the specification of the products for the installation environment.
•
Make sure the power supply is matched with your required voltage to avoid damage.
•
Make sure that the wall is strong enough to withstand three times (12 lb) the weight of the camera.
•
Dust or grease on the lens cover will cause IR reflection. Please do not remove the dome cover film
•
until the installation is finished. If there is dust or grease on the lens cover, clean the it with a clean
soft cloth and isopropyl alcohol.
Step 1. Install a microSD card
A microSD card installed in the camera provides local storage for log information, capture files, and
recorded video. This information can be downloaded to a network PC by accessing the camera web
interface with Microsoft Internet Explorer (see "Step 5. Login to the camera" on page 3). microSD cards
can be as large as 128GB. To install a microSD card in the camera:
1. Loosen the sun shield set screw, then lift off the sun shield.
2. Remove the lens cover from the camera body by unscrewing it counterclockwise (observing it from
the lens end).
3. Insert a microSD card into the slot shown in the photo to the left.
4. Push the microSD card into the slot until it clicks into place.
5. Reattach the lens cover and the sun shield.
Step 2. Install the camera
The camera includes hardware to install it directly to a mounting surface or to the Junction box provided.
The camera can be installed on a ceiling (horizontal surface) or wall (vertical surface). To install the camera,
do one of the following:
To mount the camera directly onto a mounting surface
1. Determine the best fasteners for securing the camera to mounting surface. The mounting hardware
provided is suitable for most surfaces.
2. Using the Drill Template provided, mark the location of the mounting screw holes. If mounting the
camera onto a vertical surface, orient the Drill Template so it is vertical, as shown in the photo above
(see What's in the box). If the drop cable will be routed through the mounting surface, mark the
location of the hole for the camera drop cables. NOTE: The camera drop cables can also be routed
through the opening in the edge of the camera mounting base.
3. Drill holes for the mounting fasteners, and for the drop cables where needed.
4. Route the network LAN, power, and ALARM and AUDIO peripheral cables to the installation location.
Security
L-wrench
CD-ROM
manuals and
software
Mounting
hardware
packet
Junction box
(top view)
ALI-NS3022R_CQ
10/9/15
