ALIBI ALI-TP3023R Quick Installation Manual

ALI-TP3023R 3MP HD-TVI 260' IR
Outdoor Bullet Camera
Quick Installation Guide
The ALIBI ALI-TP3023R indoor/outdoor HD-TVI bullet cameras include a high sensitivity sensor with the
ability to send HD video across standard coaxial cable. This camera features:
3 MP Megapixel High Performance CMOS
•
260' Smart Full Frame IR
•
2.8 mm wide angle lens with an 84˚ field of view covers a large area
•
WDR Wide Dynamic Range 120 dB
•
Up the Coax (UTC) technology for OSD control
•
-40° to 140°F temperature range
•
IP66 Weather Rated Housing
•
Compatible with ALI-QVR4000/5000/7000 Series recorders (QVR)
•
Can be installed with optional ALI-AJ6 junction box.
•

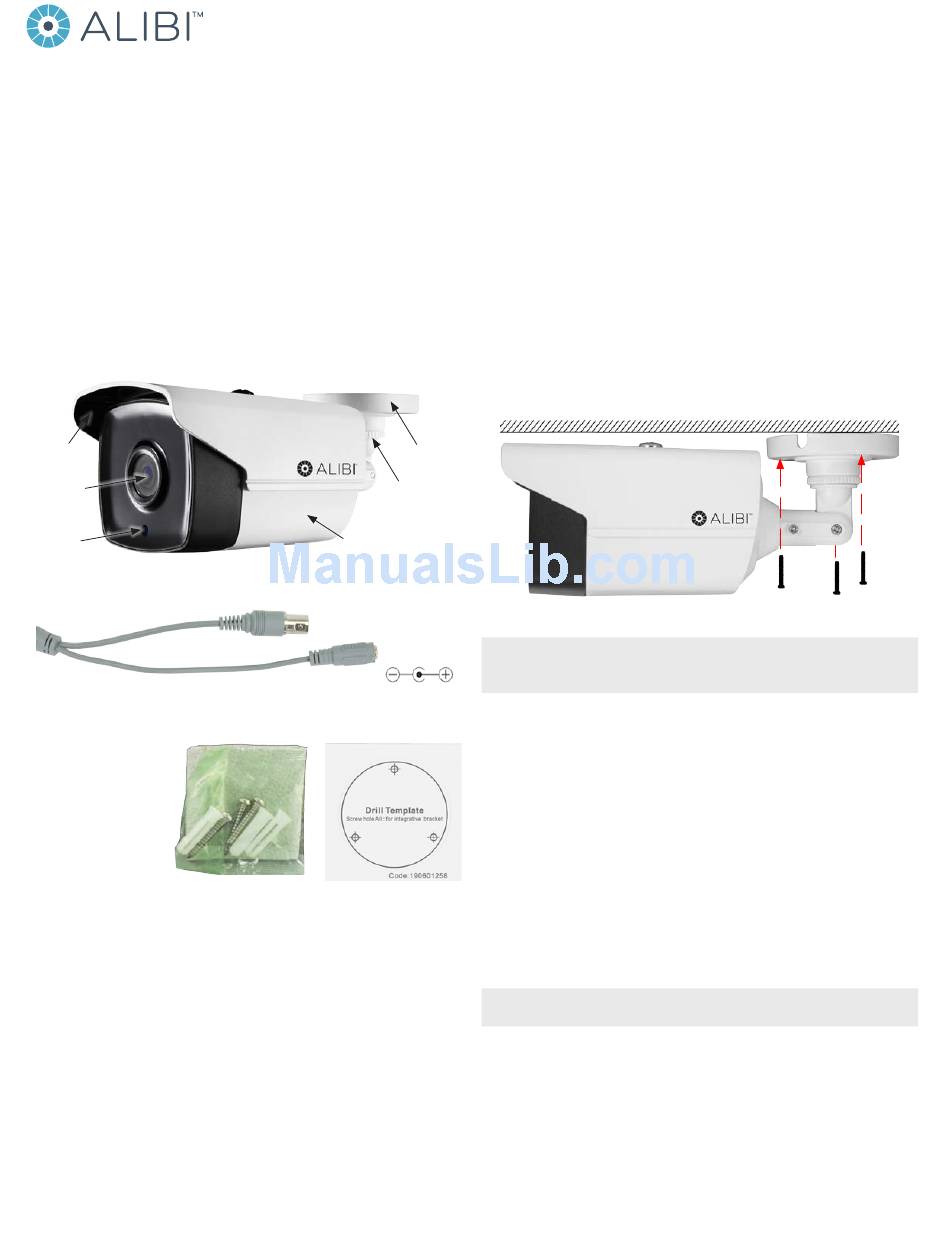

Adjustable
sun shield
Lens
IR LED
ALI-TP3023R camera
Camera drop cable connectors
What's in the box
Camera assembly
•
Mounting hardware
•
Drill template
•
This instruction guide
•
What you need
To install the camera, you will need:
12 Vdc power source. See Specifications for wattage requirement.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Phillips #2 screwdriver
•
Video and power extension cable
•
HD-TVI video setup monitor (optional)
•
Installation
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
www.observint.com
1
•
During installation:
•
•
Mounting the camera
An ALI-TP3023R camera can be mounted directly to a wall or ceiling, or with a junction box. The surface
should support at least three times the weight of the camera and junction box (if used). The video/power
drop cable from the camera can be routed either through mounting surface or through a cable channel in
the mounting base.
•
Mounting
base
Adjustable
mounting
bracket
Camera body
HD-TVI video
BNC connector
Power
Connector
NOTE
1.
2.
3.
4.
5.
6.
NOTE
7.
•
The ALI-AJ6 junction box is shown below. It can be attached to a wall or ceiling. Video and power
extension cables can be routed in through the opening in the back of the box or through the conduit
coupling, and attached to the camera drop cables inside the enclosure.
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
provide the rated voltage and wattage for the camera. See the Specifications section.
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
array shield becomes soiled, clean it only with approved products. See the
Power supply: Camera drop cable: The camera drop cable includes two connectors:
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension
—
cable to an HD-TVI compatible recorder.
Power connector: When applying power, observe the power polarity. See the picture to the
—
left for the connector polarity configuration.
Mounting the camera directly to a wall or ceiling
Typical ceiling mounting
If mounting the camera on a wall, ensure that the cable channel in the mounting base is down.
If mounting the camera on a ceiling, orient the mounting base so that the cable channel is pointing
away from any source of water, dust, and other contaminates.
Using the drill template provided, mark the location of the screws that anchor the mounting base
to the mounting surface. See the note above. If you are routing the drop cable through mounting
surface, also mark the position of the hole for the drop cable.
Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware
provided is appropriate for most surfaces. However, depending on the surface materials, more
appropriate fasteners may be required.
If routing the drop cable through the mounting surface, drill a 5/8" hole in the middle of the drill
template.
Route the drop cable through the hole in the mounting surface, or through the cable channel in the
mounting base, then attach the camera assembly to the surface using the appropriate fasteners.
Connect the camera drop cable to video and power extension cables as required.
Connect the other end of the video extension cable to an HD-TVI compatible video monitoring
device (QVR) digital video recorder.
Drop cable connectors are not waterproof.
Connect the other end of the power extension cable to a 12 Vdc power source. Observe the polarity
of the cable shown in the photo on page 1 of this guide.
Mounting the camera with a junction box
section.
Cleaning
