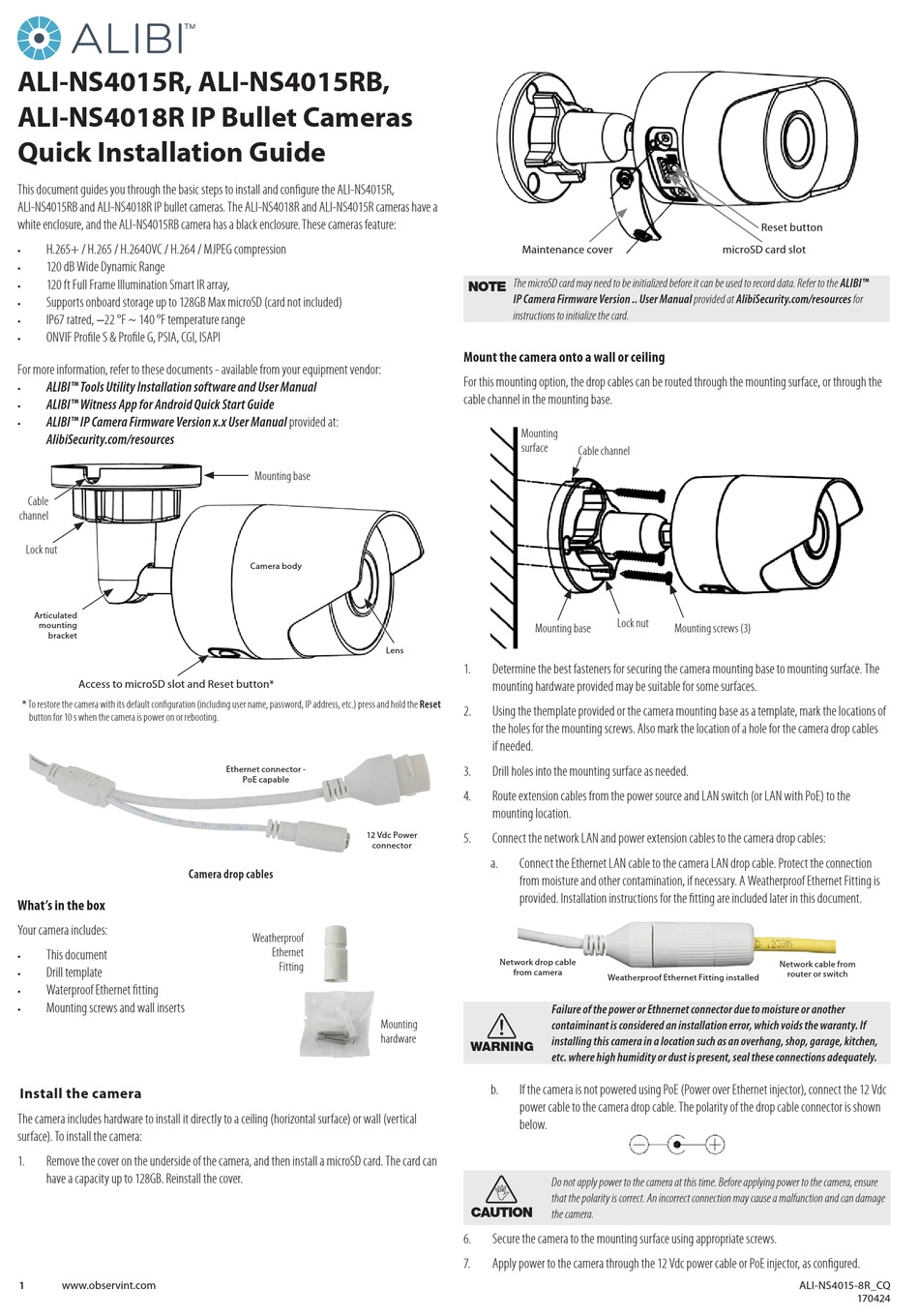

ALI-NS4015R, ALI-NS4015RB,
ALI-NS4018R IP Bullet Cameras
Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-NS4015R,
ALI-NS4015RB and ALI-NS4018R IP bullet cameras. The ALI-NS4018R and ALI-NS4015R cameras have a
white enclosure, and the ALI-NS4015RB camera has a black enclosure. These cameras feature:
H.265+ / H.265 / H.264OVC / H.264 / MJPEG compression
•
120 dB Wide Dynamic Range
•
120 ft Full Frame Illumination Smart IR array,
•
Supports onboard storage up to 128GB Max microSD (card not included)
•
IP67 ratred, −22 °F ~ 140 °F temperature range
•
ONVIF Profile S & Profile G, PSIA, CGI, ISAPI
•
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ Tools Utility Installation software and User Manual
•
ALIBI™ Witness App for Android Quick Start Guide
•
ALIBI™ IP Camera Firmware Version x.x User Manual provided at:
•
AlibiSecurity.com/resources
Cable
channel
Lock nut
Articulated
mounting
bracket
Access to microSD slot and Reset button*
* To restore the camera with its default configuration (including user name, password, IP address, etc.) press and hold the Reset
button for 10 s when the camera is power on or rebooting.
Camera drop cables
What's in the box
Your camera includes:
This document
•
Drill template
•
Waterproof Ethernet fitting
•
Mounting screws and wall inserts
•
Install the camera
The camera includes hardware to install it directly to a ceiling (horizontal surface) or wall (vertical
surface). To install the camera:
1.
Remove the cover on the underside of the camera, and then install a microSD card. The card can
have a capacity up to 128GB. Reinstall the cover.
1
www.observint.com
Mounting base
Camera body
Lens
Ethernet connector -
PoE capable
12 Vdc Power
connector
Weatherproof
Ethernet
Fitting
Mounting
hardware
Maintenance cover
The microSD card may need to be initialized before it can be used to record data. Refer to the ALIBI™
NOTE
IP Camera Firmware Version .. User Manual provided at AlibiSecurity.com/resources for
instructions to initialize the card.
Mount the camera onto a wall or ceiling
For this mounting option, the drop cables can be routed through the mounting surface, or through the
cable channel in the mounting base.
Mounting
surface
Cable channel
Lock nut
Mounting base
1.
Determine the best fasteners for securing the camera mounting base to mounting surface. The
mounting hardware provided may be suitable for some surfaces.
2.
Using the themplate provided or the camera mounting base as a template, mark the locations of
the holes for the mounting screws. Also mark the location of a hole for the camera drop cables
if needed.
3.
Drill holes into the mounting surface as needed.
4.
Route extension cables from the power source and LAN switch (or LAN with PoE) to the
mounting location.
5.
Connect the network LAN and power extension cables to the camera drop cables:
a.
Connect the Ethernet LAN cable to the camera LAN drop cable. Protect the connection
from moisture and other contamination, if necessary. A Weatherproof Ethernet Fitting is
provided. Installation instructions for the fitting are included later in this document.
Network drop cable
from camera
Weatherproof Ethernet Fitting installed
Failure of the power or Ethnernet connector due to moisture or another
!
contaiminant is considered an installation error, which voids the waranty. If
installing this camera in a location such as an overhang, shop, garage, kitchen,
WARNING
etc. where high humidity or dust is present, seal these connections adequately.
b.
If the camera is not powered using PoE (Power over Ethernet injector), connect the 12 Vdc
power cable to the camera drop cable. The polarity of the drop cable connector is shown
below.
Do not apply power to the camera at this time. Before applying power to the camera, ensure
that the polarity is correct. An incorrect connection may cause a malfunction and can damage
CAUTION
the camera.
6.
Secure the camera to the mounting surface using appropriate screws.
7.
Apply power to the camera through the 12 Vdc power cable or PoE injector, as configured.
Reset button
microSD card slot
Mounting screws (3)
Network cable from
router or switch
ALI-NS4015-8R_CQ
170424
