ALIBI ALI-BC5010VF Quick Installation And User Manual

ALI-BC5010VF, ALLI-BC5011VF
HD-TVI 1080P Varifocal 230' IR
Bullet Camera Quick Installation
and User Guide
The ALI-BC5010VF and ALI-BC5011VF cameras feature a Sony Exmor CMOS sensor that delivers 1080p
video resolution and HD-TVI encoding for transmission over CCTV coaxial cable networks. These HD video
camera is ideal for security applications that require a high level of detail and superb night vision. The ALI-
BC5010VF camera includes a 2.8 ~ 12 mm varifocal lens, and the ALI-BC5011VF camera includes a
6 ~ 50 mm varifocal lens.
Features
1 / " 2.1 megapixel Sony Exmor CMOS sensor
2.9
•
0.02 lux (Sens-UP x32)
•
Full HD 1080p
•
3DNR (digital noise reduction) and WDR (wide dynamic range)
•
ICR filter change function
•
Built-in OSD controller and video port·
•
Built-in heater
•
5-axis adjustable mounting bracket
•
Variable-intensity LED technology varies IR intensity by zoom length
•
TVI transmission technology
•
Cable storage within
mounting base
Sun shield
Lens
IR LED
Array

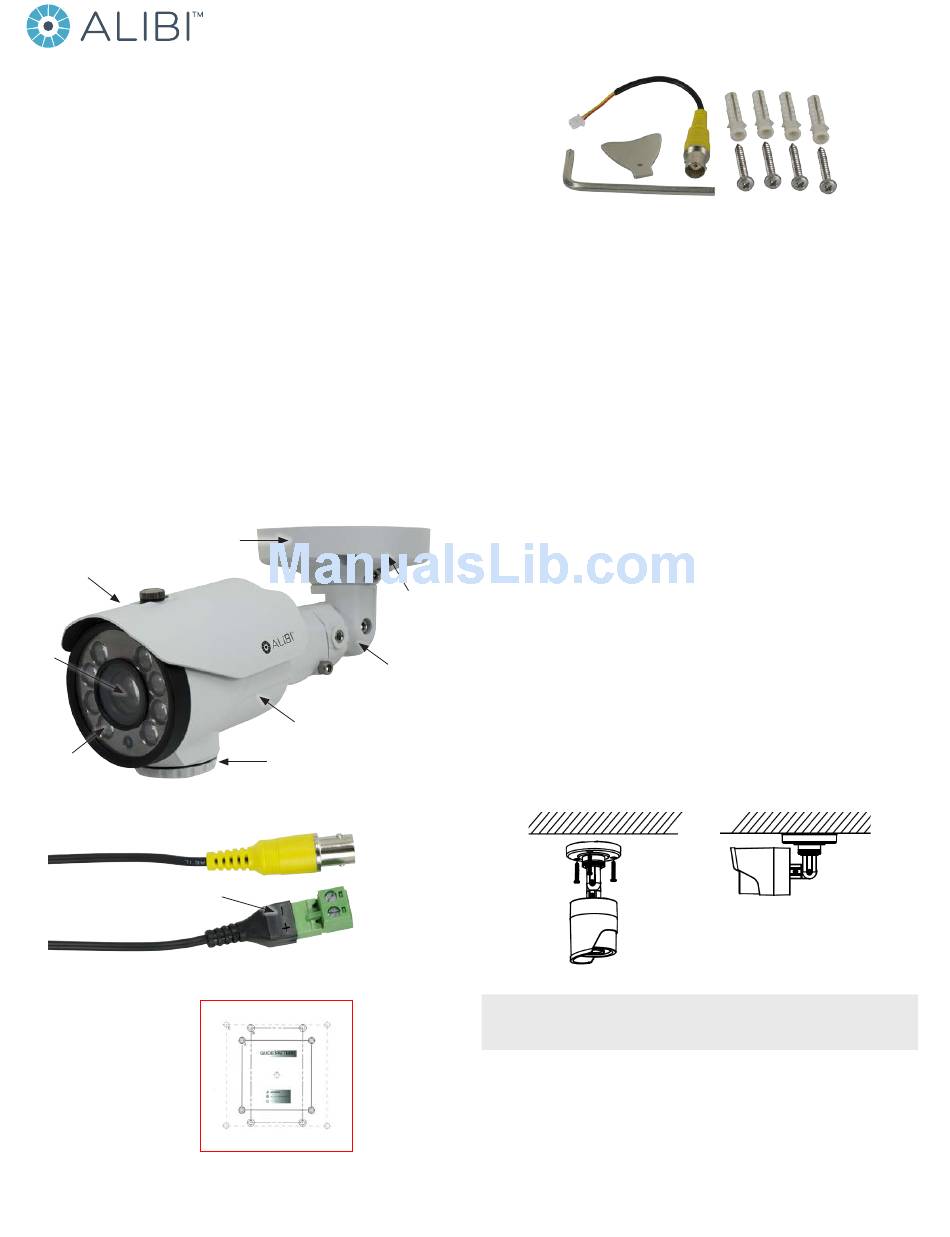

ALI-BC5010VF camera
Terminal identifiers
ALI-BC5010VR, ALI-BC5011VR camera drop cable connectors
What's in the box
Drill template
•
Video test port cable
•
Screwdriver
•
Hex wrench
•
Mounting screws and wall
•
inserts
This quick start guide
•
www.observint.com
1
Mounting
base
5-axis
adjustable
mounting
bracket
Camera body
OSD Controller, video test port,
and lens adjustment controls
HD-TVI video
BNC Connector
Power input
terminals
Video test port cable
Screwdriver
Hex wrench
TOOLS YOU NEED
To install the camera, you will need:
12 Vdc or 24 Vac power source. See Specifications for current requirement.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Video and power extension cables
•
CCTV video setup monitor (optional)
•
INSTALLATION
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
Do not mount the camera in a location where it points at the sun or bright or shiny objects.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
array shield becomes soiled, clean it only with approved products. See the
Monitor impedance: Set the monitor impedance to 75 Ω.
•
Power supply: Camera drop cable: The camera drop cable includes two connectors:
•
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension cable.
—
Power connector: Provides screw down terminals for applying 12 Vdc or 24 Vac power to the
—
camera. When applying 12 Vdc power, observe the power polarity marked on the connector. See
the picture to the left for the connector polarity configuration.
Mounting the camera
These cameras can be mounted on a wall or ceiling that has sufficient strength to support it. The video /
power drop cable from the camera can be routed either through mounting surface or through a cable guide
on the edge of the mounting base. Excess cable can be stored within the mounting base.
Typical ceiling mounting
If mounting the camera on a wall, ensure that the cable guide in the base is down.
NOTE
If mounting the camera on a ceiling, orient the mounting base so that the cable guide is pointing
away from any source of water, dust, and other contaminates.
1. Using the drill template provided, mark the location of the screws that anchor the mounting base to
the mounting surface. Use the "A" marks on the template. If you are routing the drop cable through
mounting surface, also mark the position of the hole for the drop cable.
2. Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware
provided is appropriate for most surfaces. However, depending on the surface materials, more
appropriate fasteners may be required.
Mounting screws, wall inserts
section.
Cleaning
