ALIBI ALI-IPV5060RP Quick Installation Manual

ALI-IPV5060RP 6MP 360° Fisheye
IP Camera Quick Installation Guide
This document guides you through the basic steps to install and configure the ALI-IPV5060RP cameras. The
ALI-IPV5060RP camera features:
1/1.8" progressive scan CMOS
•
6 mega-pixel image sensor
•
Up to 3072 x 2048 resolution, 30 fps
•
360° fisheye panoramic view
•
Multiple viewing modes
•
Internal MicroSD card slot for storage up to 64 GB (card not provided)
•
Virtual PTZ mode
•
50 ft IR range
•
Built-in microphone and speaker
•
For more information about the software features of this camera, please refer to the ALI-IP Camera
Software User Manual.

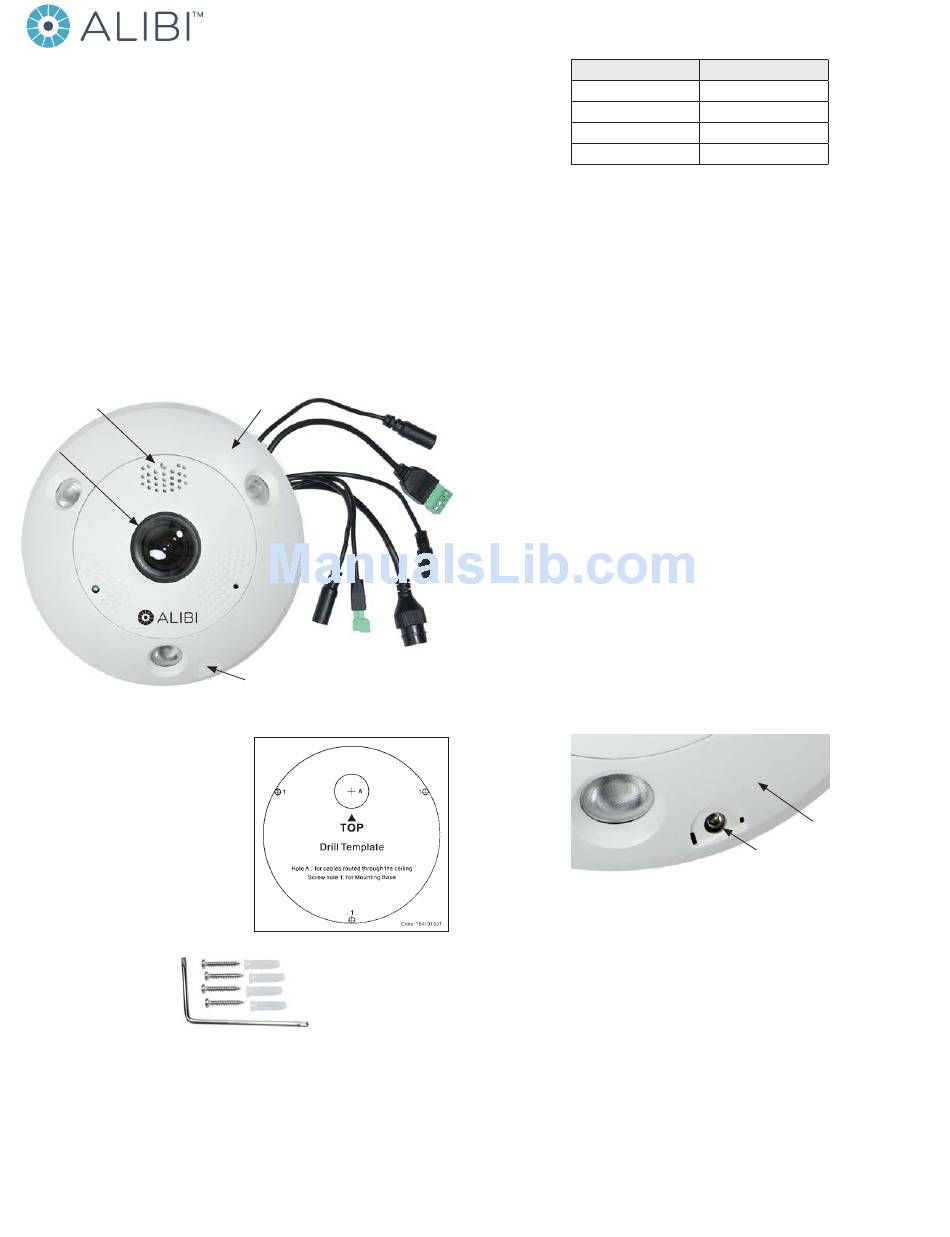

Speaker and microphone
Fisheye Lens
What's in the box
Your camera includes:
PTZ camera assembly
•
Drill template
•
Network drop cable connector jacket
•
Security L-wrench
•
Mounting screws and wall inserts
•
Software and documentation CD
•
Installation and user guide (this document)
•
Security L-wrench and mounting hardware
Optional mounting brackets
The mounting brackets listed below are available for the ALIBI ALI-IPV5060RP camera. For more
information about using these brackets with your camera, refer to the ALI-IPV5060RP 6MP 360° Fisheye
IP Camera Installation and User Guide.
www.observint.com
1
Bezel Audio
LINE IN
12 Vdc
Power
Audio
OUT RS-485
RJ-45 LAN
connector
connector
Bezel lock screw under cover.
Model
ALI-P50AJB
ALI-P50JB
ALI-P50WB
ALI-P5DC
Step 1. Before installing the camera ...
The ALI-IPV5060RP camera can be installed on a ceiling, wall or table, or installed with any of the optional
mounting brackets listed above.
1. Check the package contents and make sure that the device in the package is in good condition and
all the assembly parts are included.
2. Make sure the mounting surface and fasteners are strong enough to withstand at least three times
the weight of the camera assembly and the mounting bracket (if used). For concrete or cement
block walls, use an expansion screw to secure the camera or mounting bracket.
3. Make sure all the equipment that will be attached to the camera is power-off during the installation,
if possible.
4. Check the specification of the products for the installation environment.
5. Make sure the power supply is matched with the camera voltage and wattage specification to avoid
damage.
Alarm
6. Make sure that there are no reflective surface too close to the camera lens. The IR light from the
IN/OUT
camera may reflect back into the lens causing reflection.
7. Do not remove the dome cover film until the installation is finished. Dust or grease on the dome
cover will cause IR reflection. If there is dust or grease on the dome cover, clean the dome cover with
clean soft cloth and isopropyl alcohol.
Step 2. Prepare the camera for installation
Remove the Bezel
1. Remove the camera assembly from the packaging. Do not remove the plastic film from that covers
the lens at this time.
2. Lay the camera on a clean, flat surface with the lens side up.
3. Open the Bezel Lock Screw cover.
4. Use the security L-wrench to fully unscrew the bezel lock screw. NOTE: The bezel lock screw is a
captive screw.
5. Unsnap the cover from the camera assembly.
6. Unsnap the bezel from the camera assembly. If the bezel cannot be separated from the camera
assembly, turn the camera base side up and push a small blade screwdriver into the slots shown in
the photo below to free the three bezel retention tabs from catches on the camera assembly.
Type
Slant Mounting Base Bracket
Junction Box Bracket
Wall Mount Bracket
Ceiling Pendant Mount Bracket
Bezel
Bezel Lock Screw
Shown with cover removed
