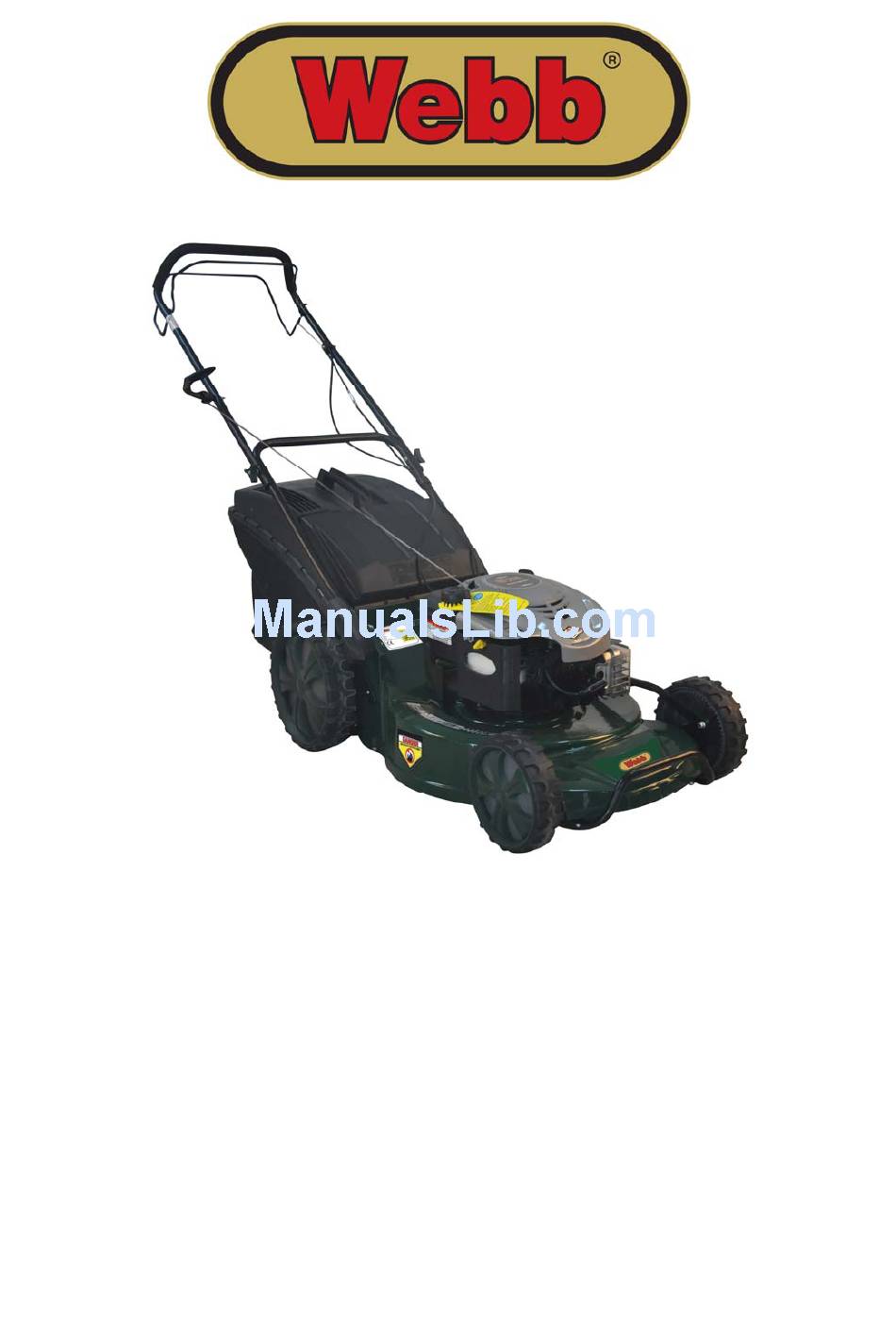

- Page 1 OPERATOR’S MANUAL AND PARTS LIST SELF PROPELLED PETROL LAWNMOWER WER19A Spares & Support: 01793 333212 www.webblawnmowers.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 30/03/2012...
-
Page 2: Table Of Contents
To ensure that you get the best results from your petrol lawnmower please read all of these safety and operating instructions carefully before using this product. TABLE OF CONTENTS PRODUCT SPECIFICATION Product Specifications…………………….1 Safety Rules……………………………….2 Model number WER19A self propelled Assembly/Pre-Operation…………………..3 Petrol engine B&S675EX series 190cc Operation…………………………………..4 Engine speed 300rpm Maintenance……………………………….5... -
Page 3: Safety Rules
1. GENERAL OPERATION AND SAFETY RULES Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. Do not put your hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. -
Page 4: Assembly/Pre-Operation
Before using, always visually inspect to ensure that the blade, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. Never tamper with safety devices. Regularly check that they are operating properly. Keep the machine free of grass, leaves, or other debris build-up. -
Page 5: Operation
• The mower will now recycle the chopped grass into the lawn surface. • To mulch efficiently only cut one third of the length of the grass. SET UP YOUR MOWER IMPORTANT: Unfold the handle carefully so as not to pinch or damage the control cables. 1. - Page 6 BEFORE STARTING ENGINE ADD OIL Before each subsequent use the oil level must be checked and if necessary topped up with SAE30 engine oil. OIL FILLER CAP/DIPSTICK UPPER LIMIT LOWER LIMIT Your lawnmower is shipped without oil in the engine. CAUTION: DO NOT overfill the engine with oil, or it will smoke heavily from the muffler on startup.
- Page 7 ADD PETROL Fill fuel tank to the bottom of the tank filler neck. Do not overfill. Use fresh, clean, regular unleaded petrol. Do not mix oil with petrol. Purchase fuel in quantities that can be used within 30 days to assure fuel freshness.
-
Page 8: Maintenance
Keep the top of the engine around the starter clear and clean of grass clippings and chaff. This will assist engine air flow and extend engine life. MAINTENANCE IMPORTANT-Regular, careful maintenance is essential for keeping the safety level and original performance of the machine unchanged over time. -
Page 9: Storage
Empty the oil tank before removing the blade. To replace the blade, undo the screw. 40MnB D4-5A-002-000 WER19A Reinstall as illustrated. Tighten the screw properly. Tightening torque 45 Nm. When replacing the blade, the blade screw should also be replaced. STORAGE The same petrol must not remain in the tank for more than one month. - Page 10 SYMBOLS The following symbols can be found on the machine to remind you of the care and attention that are required during use. The symbols mean: Important: Read the instruction manual Warning! Beware of objects being thrown out. before using your lawn mower Ensure bystanders are at a safe distance.
- Page 11 PARTS DIAGRAM...
- Page 12 PARTS LIST REF PART NO DESCRIPTION QTY REF PART NO DESCRIPTION WE100-1 Foam Pipe WE100-42 Height Adjustment Rod WE100-2 Self-propelled Lever WE100-43 Ventilation plate WE100-3 Stop Lever WE100-44 Hex Flange Bolt WE100-4 Hex Flange Bolt M6x35 WE100-45 Rear Drive Pressure Plate WE100-5 Brake &...
- Page 14 To order spare parts and see the complete range of garden machinery and garden equipment from Webb, visit: www.webblawnmowers.co.uk Spares & Support: 01793 333212...
