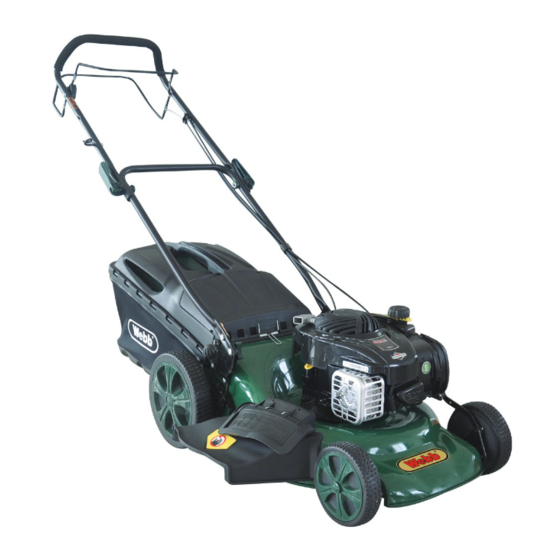

- Page 1 46cm Steel Deck High Wheel Self Propelled Lawnmower WER18HW 193803003 Operator’s Manual & Parts List Please read & understand this manual, paying particular attention to the safety instructions, before use. 07 Dec 2015...
- Page 3 Technical Specification Declaration of Conformity Parts List & Diagrams Warranty For Spares or Support of your Webb product, please contact us: Tel: 01793 333212 (Mon – Fri 8.30am to 5.00pm) Email: customerservice@webblawnmowers.co.uk To view the full range or find out more information go to...
- Page 4 What you get with your mower ×1 ×1 ×2 46cm Steel Deck High Wheel Self Propelled Lawnmower WER18HW 193801003 Operator’s Manual & Parts List Please read & understand this manual, paying particular attention to the safety instructions, before use. 07 Dec 2015 ×1 ×1 ×4...
- Page 5 BOX CONTENTS / PRODUCT DIAGRAM Brake (OPC) Lever Spark Plug Height Adjustment Lever Drive Lever Exhaust Grass Collection Bag Fuel Tank Cap Oil Filter & Dipstick Side Discharge Chute Air Filter & Primer Bulb...
- Page 6 INSTRUCTION MANUAL 1. LOWER HANDLE BAR ASSEMBLY Remove and ensure you have all the parts Parts required: required for assembly (see page 2 for reference) 4 x Bolts 3. ATTACHING THE SAFETY (OPC) CABLE 6. LOCATE THE STARTER CORD The starter cord spring maybe located differently depending on the model 1.
- Page 7 2. UPPER HANDLE BAR ASSEMBLY Parts required: 2 x Quick Release Handle Assemblies 4. ATTACHING THE DRIVE CABLE 5. FIT THE CABLE CLIPS 5. FIT THE CABLE CLIPS 4. Attaching the Drive Cable 6. Locate the Starter Cord 7b. Lower the Grass catcher Pull the stater cord upto the 4a.
- Page 8 INSTRUCTION MANUAL Petrol is highly flammable so extreme caution must be taken when handling it. Always store petrol in approved containers and you must ensure that you use fresh petrol that it less than 4-6 weeks old. Do not mix oil with petrol.
-
Page 9: Starting The Engine
STARTING THE ENGINE WARNING! The following procedures must be carried out before you start the engine of your lawnmower. Fig 5 Fig 7 Starting the engine 3. Firmly hold the brake handle 5. To turn off your mower, release 1. Make sure that your mower is with one hand, and then with the brake handle. -
Page 10: Using Your Mower
INSTRUCTION MANUAL USING YOUR MOWER Fig 9 Fig10 Fig11 Fig12 Fig13 Attach the Grass Collection Bag Winter Storage: Lever up and forward (Fig. 13). The mower can be pushed with the drive The grass collection bag attaches Thoroughly clean the mower. Run disengaged for more precise handling. - Page 11 FITTING THE MULCH PLUG FITTING THE SIDE DISCHARGE Fig 16 Fig 14 Fig 15 Mulching: 2. Ensure that the side cover is in 3. The mower will now recycle the 1. Fit the mulch plug to the rear the closed position (with the chopped grass into the lawn discharge opening of the mower discharge chute removed).
- Page 12 INSTRUCTION MANUAL Mow across the face of slopes, Do not transport the Before starting your mower not up & down, and avoid mowing on mower in a vehicle if there inspect it carefully to ensure that very steep slopes. We recommend is any petrol in the tank.
-
Page 13: Basic Maintenance
Replace a damaged, worn or bent blade as soon as possible. Use only genuine WEBB Wear appropriate protective gloves to Check the spark plug initially after the parts or those approved by WEBB. - Page 14 INSTRUCTION MANUAL Fig 22 Fig 23 Fig 24 Fig 25 Do not twist the foam cartridge to clean it as this could cause damage. If your mower is not serviced correctly, you could reduce your WARNING! mower’s ability to operate and void warranty.
-
Page 15: Technical Specification
TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Consistent with our policy of continuous improvement, WEBB reserves the right of any of its products without notice or obligation. Therefore, please treat the text and images in this manual as being for illustrative purposes only. They may in no case serve as a basis for any legal claim. - Page 16 INSTRUCTION MANUAL Problem Likely cause Suggested remedy Out, or almost out, of fuel Fill tank with min unleaded petrol Spark plug depleted Replace with a suitable new spark plug Spark plug dirty Clean or replace with a new spark plug E n g i n e d o e s n o t Spark plug not connected Press rmly on the terminal cover...
-
Page 17: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: 148cc Petrol Lawnmower Model(s): WER18HW Type/Serial No. As per rating label on machine Complies with the following directives: 2006/42/EC- Machinery Directive 2004/108/EC- Electro-Magnetic Compatibility Directive 2000/14/EC amended by 2005/88/EC- Noise Emission in the Environment by Equipment for use Outdoors Directive. - Page 18 NOTES...
- Page 19 NOTES...
- Page 20 WER18HW - Blade Adaptor Item No Part No Description WE114-18 Blade Adaptor WE113-69 Blade WE70040070000 Blade Washer WE113-71 Hex Flange Bolt 50mm WE70150240000 Chassis Bushing WE114-20 Hex Self-Tapping Screw 3/8-16x1ST 30mm WE114-21 Hex Self-Tapping Screw 3/8-16x1ST WE114-22 Belt Cover...
- Page 21 WER18HW - Deck Assembly Item No Part No Description WE70740651590 Deck WE113-25 O Ring ￠11.2X￠2.65 WE113-26 Hose Connector Inlet WE113-27 Hose Connector Nut M12x1.25 WE113-28 Cable Stopper WE113-29 Left Handle Bracket WE113-30 Right Handle Bracket WE113-31 Hex Bolt M8x14 WE113-12 Lock Nut M8/8.8...
- Page 22 WER18HW - Front Axle Item No Part No Description WE70840180000 Front Axle WE2088030000 Wheel Wheel Bearing WE113-51 WE113-52 Lock Nut M8 WE20620080059 Wheel Trim WE20610120000 Inner Wheel Cover WE20140010000 Front Bracket Fastener...
- Page 23 WER18HW - Rear Axle Item No Part No Description WE115-15 Rear Axle WE20270010059 Height Adjustment Handle WE70860370000 Gearbox WE114-7 Bush WE114-8 Bearing 6001RS WE20430140000 Rear Axle Sleeve WE20610110000 Inner Wheel Cover WE114-11 Spring Washer 12 WE21070030000 Self-Propelled Ratchet Washer WE117-6...
- Page 24 WER18HW - Handle Assembly Item No Part No Description WE113-1 Foam Handle Cover WE113-2 Brake Lever WE70550100130 Self-Propelled Lever WE113-4 Top Handle WE113-5 Rope Guide WE113-6 Cap Nut M6/8.8 WE113-7 Brake Cable Assembly Plate WE104-5 Bolt M6x30 WE113-42 Lock Nut M6...
- Page 25 WER18HW - Grass Collector Item No Part No Description WE113-58 Grass Collector Frame WE113-59 Grass Collector Top WE21010010590 Filter WE20050080016 Grass Collector Bag WE113-62 Rear Discharge Cover WE113-63 Rear Discharge Shaft WE113-64 Rear Discharge Cover Spring WE113-65 Lock Washer 6...
- Page 26 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the 2 year conditional manufacturer domestic warranty*. * Commercial/Professional & Hire users receive a 90 day warranty Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
-
Page 27: Service Book
SERVICE BOOK 1. Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser, is not transferable and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture. - Page 28 It is the owner’s responsibility to ensure that their Webb machine is maintained at specific intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
- Page 29 SERVICE BOOK Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
- Page 30 INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date...
-
Page 31: Warranty Registration
& services we provide, including information that we believe is relevant to your and/or your machine. We value your trust by giving us this information about yourself and we are committed to protecting your privacy. From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, offers, technical improvements or just opinions, which may be used for marketing, research or analysis purposes. - Page 32 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
