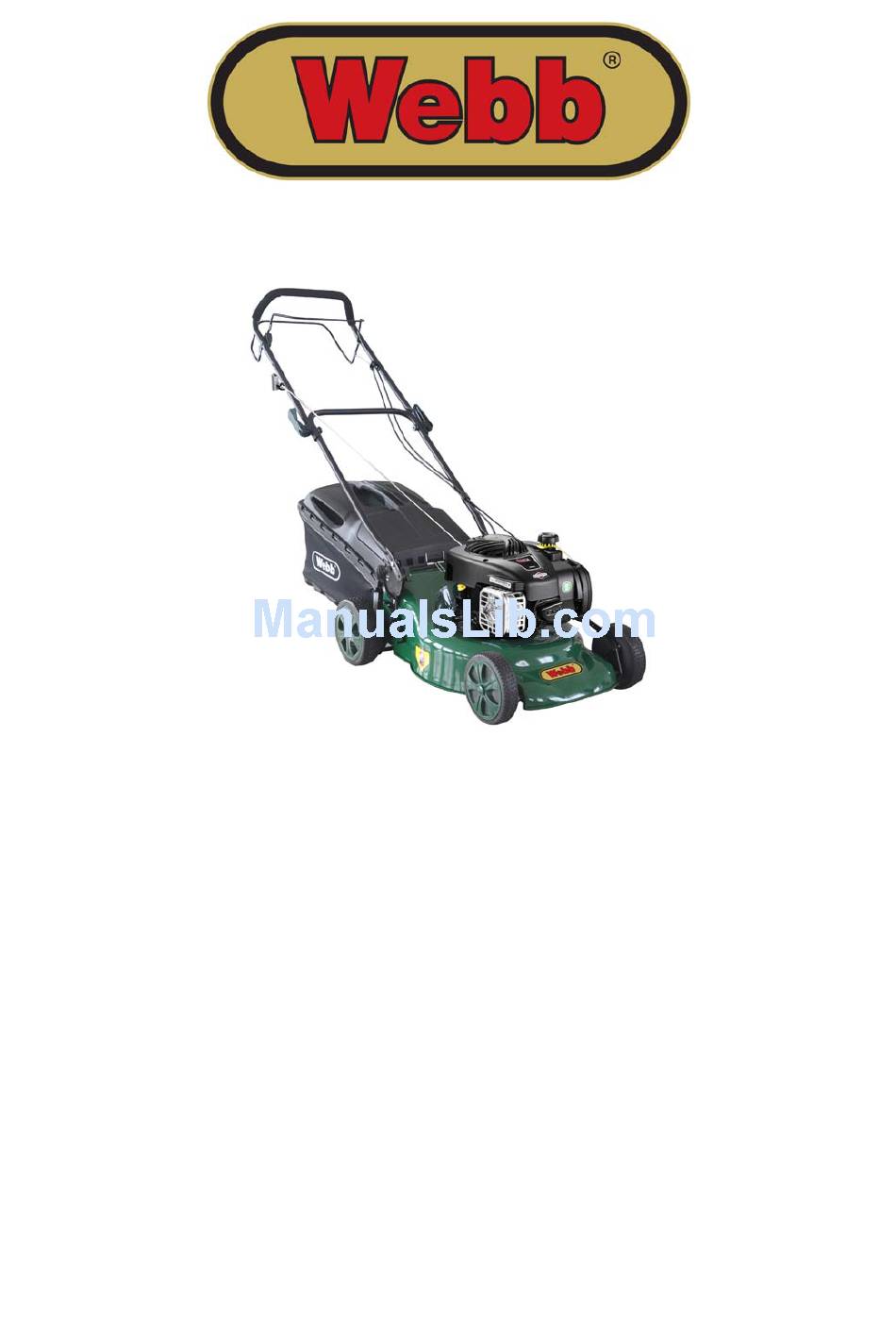

OPERATOR’S MANUAL AND PARTS LIST SELF PROPELLED PETROL LAWNMOWER WER18SP Spares & Support: 01793 333212 www.webblawnmowers.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 16/06/2014...
To ensure that you get the best results from your petrol lawnmower please read all of these safety and operating instructions carefully before using this product. TABLE OF CONTENTS PRODUCT SPECIFICATION Product Specifications…………………….1 Safety Rules……………………………..1-3 Model number WER18SP (193803001) Assembly/Pre-Operation………………...3-5 Petrol engine B&S 450e series 125cc Operation………………………………...6-8 Engine speed 2800rpm Maintenance……………………………...8-9...
1. GENERAL OPERATION AND SAFETY RULES Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. Do not put your hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
Before using, always visually inspect to ensure that the blade, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. Never tamper with safety devices. Regularly check that they are operating properly. Keep the machine free of grass, leaves, or other debris build-up.
Page 5
Apply inward pressure to the lever assembly on the left hand side of the machine, to remove the lever lug from the handle assembly. Insert the Brake Cable into the OPC Lever. Insert the Drive Cable into the Drive Lever.
Page 6
Re-seat the lever assembly back into the main handle. INSTALL ATTACHMENTS Your lawnmower was shipped ready to be used as a rear bag mower. The mower has three different operating modes. 1. Collecting: • Fit the grassbox by lifting the rear flap on the mower and hook the front of the box to the shaft on the mower.
LAWNMOWER ENGINE SPEED The engine speed was set at the factory for optimum performance. Speed is not adjustable. DRIVE CONTROL (Model: WER18SP) The drive is controlled by holding the Operator Presence Control bar down to the handle and pulling the drive control lever back towards the handle.
Page 8
BEFORE STARTING ENGINE ADD OIL Before each subsequent use the oil level must be checked and if necessary topped up with SAE30 engine oil. OIL FILLER CAP/DIPSTICK UPPER LIMIT LOWER LIMIT Your lawnmower is shipped without oil in the engine. CAUTION: DO NOT overfill the engine with oil, or it will smoke heavily from the muffler on startup.
CAUTION: To avoid engine problems, the fuel system should be emptied before being stored for 30 days or more. Empty the fuel tank, start the engine and let it run until the fuel lines and carburettor are empty. Use fresh fuel for your next use of the machine. See Storage Instructions for additional information. Never use engine or carburettor cleaner products in the fuel tank or permanent damage may occur.
9) Check the self-closing guard and grass-catcher frequently for wear and deterioration. 10) Whenever the machine is to be handled, transported or tilted you must: - Wear strong working gloves. - Grasp the machine at the points that offer a safe grip, clear of the blade and taking account of the weight of the machine and its distribution.
THE ENVIRONMENT In order to protect the environment, we recommend that the following points should be given special consideration: Always use pure unleaded petrol. Always use a funnel and/or petrol can with a level control to avoid spillage when refilling the fuel tank.
PARTS DIAGRAM AND LIST – HANDLE ASSEMBLY Item No Part Number Description Qty Item No Part Number Description WE114-1 Foam Handle Cover WE113-14 Pin 6x20 WE114-2 Brake Lever WE113-15 Bolt for Quick Lock Handle WE114-3 Self-Propelled Lever WE113-16 Lock for Quick Lock Handle WE113-4 Top Handle WE113-17...
Page 13
PARTS DIAGRAM AND LIST – DECK ASSEMBLY Item Part Item Part Description Description Number Number WE113-24 Deck WE113-35 Rear Drive Right Bracket WE113-25 "O" Ring 11.2x2.65 WE113-36 Rear Drive Left Bracket WE113-26 Inlet WE113-37 Hex Self-Tapping screw M6x10 WE113-27 Pipe Connector Nut M12x1.25 WE113-38 Height Adjustment Spring WE113-28...
Page 14
PARTS DIAGRAM AND LIST – FRONT AXLE ASSEMBLY Item No Part Number Description WE113-49 Front Axle WE113-50 Front Wheel WE113-51 Wheel Bearing WE113-52 Lock Nut M8 WE113-53 Wheel Trim WE114-5 Inner Wheel Cover...
Page 15
PARTS DIAGRAM AND LIST – REAR AXLE ASSEMBLY Part Item No Part Number Description Qty Item No Description Number Rear Axle with Height WE113-54 WE114-14 Drive Cog L Adjustment Handle WE114-6 Gearbox Assembly WE114-15 Drive Cog R WE114-7 Bush WE114-16 Drive Pin WE114-8 Bearing 6001RS...
Page 16
PARTS DIAGRAM AND LIST – GRASS COLLECTOR ASSEMBLY Item No Part Number Description WE113-58 Grass Box Frame WE113-59 Grass Box Top WE113-60 Filter Plate WE113-61 60L Grass Box Bag (Unbranded) WE113-62 Rear Discharge Cover WE113-63 Rear Discharge Cover Shaft WE113-64 Rear Discharge Cover Spring WE113-65 Lock Washer 6...
GUARANTEE This product is guaranteed against manufacturing defects for a period of 24 months. This does not cover the product where the fault is due to misuse, abuse, use in contravention of the instructions, or where the product has been the subject of unauthorised modifications or alterations.
