Webb WER460SP Original Instructions Manual

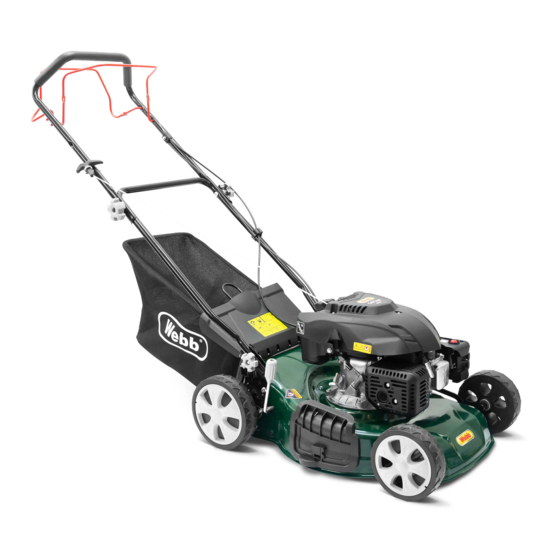

46cm self propelled steel deck lawnmower
Hide thumbs
Table of Contents

Advertisement

Quick Links

v
46cm Self Propelled
Steel Deck Lawnmower
WER460SP
1938220001
en - Original Instructions
Assembly REQUIRED
Minimum Two Persons
Sales & Support: 01793 333212
Before use please read & understand this manual; paying particular attention to the safety instructions before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every eff ort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvement
determines the right to make modifi cations without prior warning.
Images are used for illustration purposes only.
