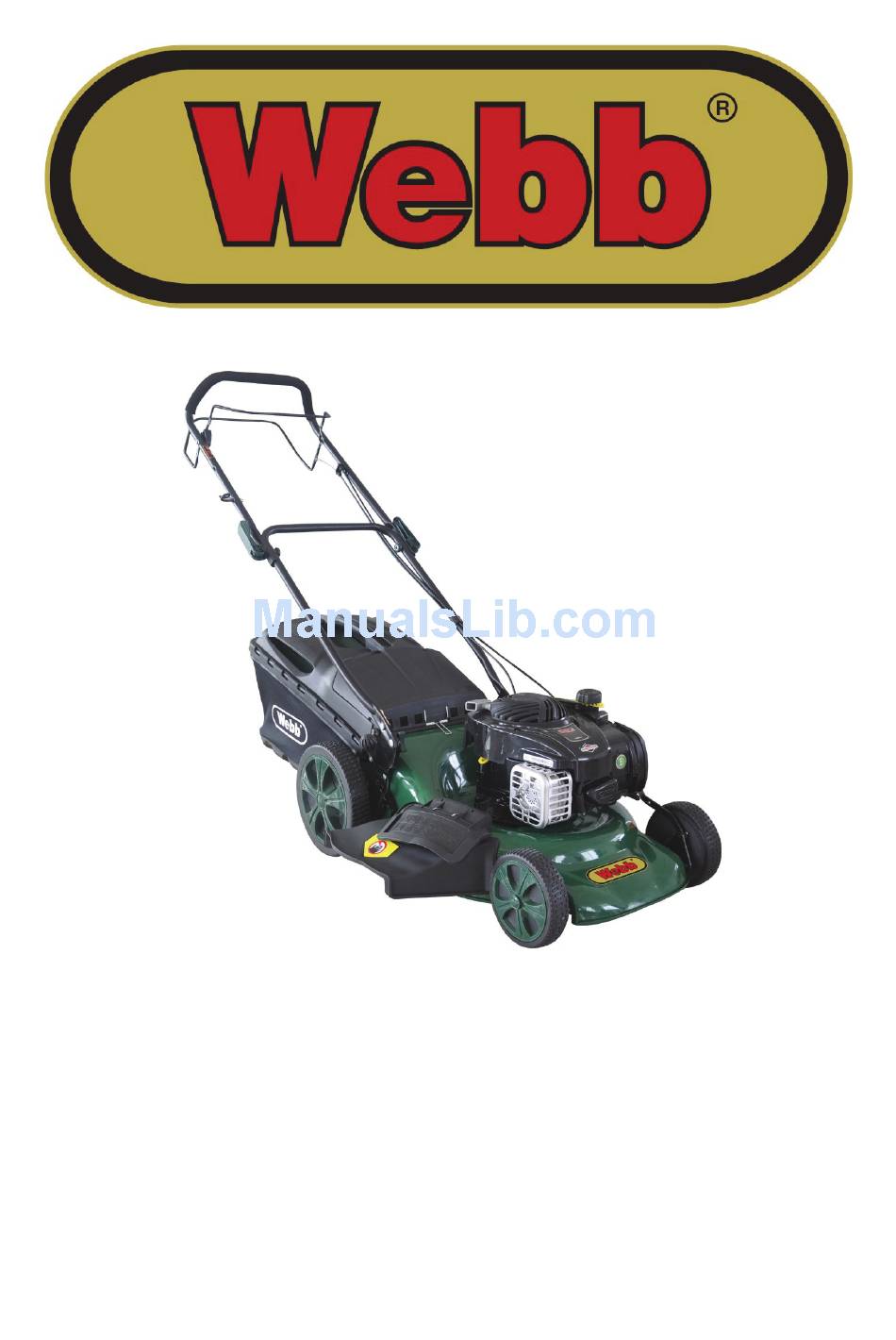

- Page 1 OPERATOR’S MANUAL AND PARTS LIST PETROL LAWNMOWER - WER18HW Spares & Support: 01793 333212 www.webblawnmower.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 02/12/2013...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS MAJOR PARTS SPECIFICATIONS ASSEMBLY AND OPERATION 5 - 8 MAINTENANCE PARTS DIAGRAM AND LIST 10-11 EC DECLARATION OF CONFORMITY... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the lawn mower. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for reference. • Use sturdy footwear - do not operate when barefoot or wearing open sandals. -
Page 4: Major Parts
MAJOR PARTS SPECIFICATION Model WER18HW Engine Briggs & Stratton 500E series Engine Speed 2800rpm Cutting Width 457mm Cutting Height 25-75mm Grassbag Capacity 60 litre Deck Steel Sound Pressure Level 81.4 dB(A) Guaranteed Sound Power Level 96 dB(A) Max. Vibration Value... - Page 5 ASSEMBLY To avoid damage during the transport process, the drive and brake cables for your machine may not be fitted to their appropriate handle bar. The front cable is the brake cable, which is to be fitted to the front lever on your machine, this is the Brake Lever. The cable at the rear is your drive cable, which is to be fitted to the rear lever, which is your Drive Lever.
- Page 6 ASSEMBLY Insert the Brake Cable into the Brake Lever. Insert the Drive Cable into the Drive Lever. Re-seat the lever assembly back into the main handle.
-
Page 7: Assembly And Operation
ASSEMBLY AND OPERATION The lawn mower is shipped without oil or petrol in the engine. The mower has been assembled and tested in the factory and only needs a small amount of assembly. ‡ Remove the lawnmower carefully from the box - it may be easier to remove one side of the box and roll the machine out. - Page 8 OPERATION cont’d The mower has four different operating modes. Collecting: • Ensure that the side cover is closed. • Fit the grassbox by lifting the rear flap on the mower and hook the front of the box to the shaft on the mower. •...
-
Page 9: Maintenance
MAINTENANCE Regular careful maintenance is essential for keeping the lawn- mower in tip-top condition. • Before each use, ensure that all bolts, nuts and screws are tight. • After each use, allow the mower to cool down before clean- ing off any grass and other debris. Use a brush or com- pressed air and avoid getting water into the engine. - Page 10 PARTS DIAGRAM - HANDLE ASSEMBLY Item No Part Number Description Qty Item No Part Number Description WE114-1 Foam Handle Cover WE113-14 Pin 6x20 WE114-2 Brake Lever WE113-15 Bolt for Quick Lock Handle WE114-3 Self-Propelled Lever WE113-16 Lock for Quick Lock Handle WE113-4 Top Handle WE113-17...
- Page 11 PARTS DIAGRAM - DECK ASSEMBLY Item No Part Number Description Qty Item No Part Number Description WE115-1 Deck WE113-37 Hex Self-Tapping screw M6x10 WE113-25 "O" Ring 11.2x2.65 WE113-38 Height Adjustment Spring WE113-26 Inlet WE113-39 Height Adjustment Rod Pipe Connector Nut M12x1.25 WE113-40 R Pin 1.5x25 WE113-27...
- Page 12 PARTS DIAGRAM - FRONT AXLE ASSEMBLY Item No Part Number Description WE113-49 Front Axle WE113-50 Front Wheel WE113-51 Wheel Bearing WE113-52 Lock Nut M8 WE113-53 Wheel Trim WE114-5 Inner Wheel Cover...
- Page 13 PARTS DIAGRAM - REAR AXLE ASSEMBLY Item No Part Number Description WE113-54 Rear Axle with Height Adjustment Handle WE115-9 Gearbox Assembly WE114-7 Bush WE114-8 Bearing 6001RS WE115-10 Gasket 13x39.3x1 WE115-11 Inner Wheel Cover WE114-11 Spring Washer 12 WE114-12 Ratchet Washer WE114-9 Self-Propelled Spring WE114-14...
- Page 14 PARTS DIAGRAM - GRASS COLLECTOR ASSEMBLY Item No Part Number Description WE113-58 Grass Box Frame WE113-59 Grass Box Top WE113-60 Filter Plate WE113-61 60L Grass Box Bag (Unbranded) WE113-62 Rear Discharge Cover WE113-63 Rear Discharge Cover Shaft WE113-64 Rear Discharge Cover Spring WE113-65 Lock Washer 6 WE113-66...
- Page 15 PARTS DIAGRAM - BLADE ASSEMBLY Item No Part Number Description WE114-18 Blade Adapter Assy WE113-69 18" Double Edge Blade WE113-70 Blade Washer WE113-71 50mm Hex Flange Bolt WE114-19 Chassis bushing WE114-20 Hex Self-Tapping screw 3/8-16x1ST-30mm WE114-21 Hex Self-Tapping screw 3/8-16x1ST WE114-22 Belt Cover...
-
Page 16: Ec Declaration Of Conformity
We, Importer Handy Distribution SN3 4NS Declare that the product Designation: 140cc Model: WER18HW Complies with the following directives: 2006/42/EC - Machinery Directive 2004/108/EC - Electromagnetic Compatibility Directive 2000/14/EC amended by 2005/88/EC - Noise Emission in the Environment by Equipment for Use Outdoors Directive. - Page 17 GUARANTEE This product is guaranteed against manufacturing defects for a period of 24 months. This does not cover the product where the fault is due to misuse, abuse, use in contravention of the instructions, or where the product has been the subject of unauthorised modifications or alterations.
