Summary of Contents for Webb WER18SPES

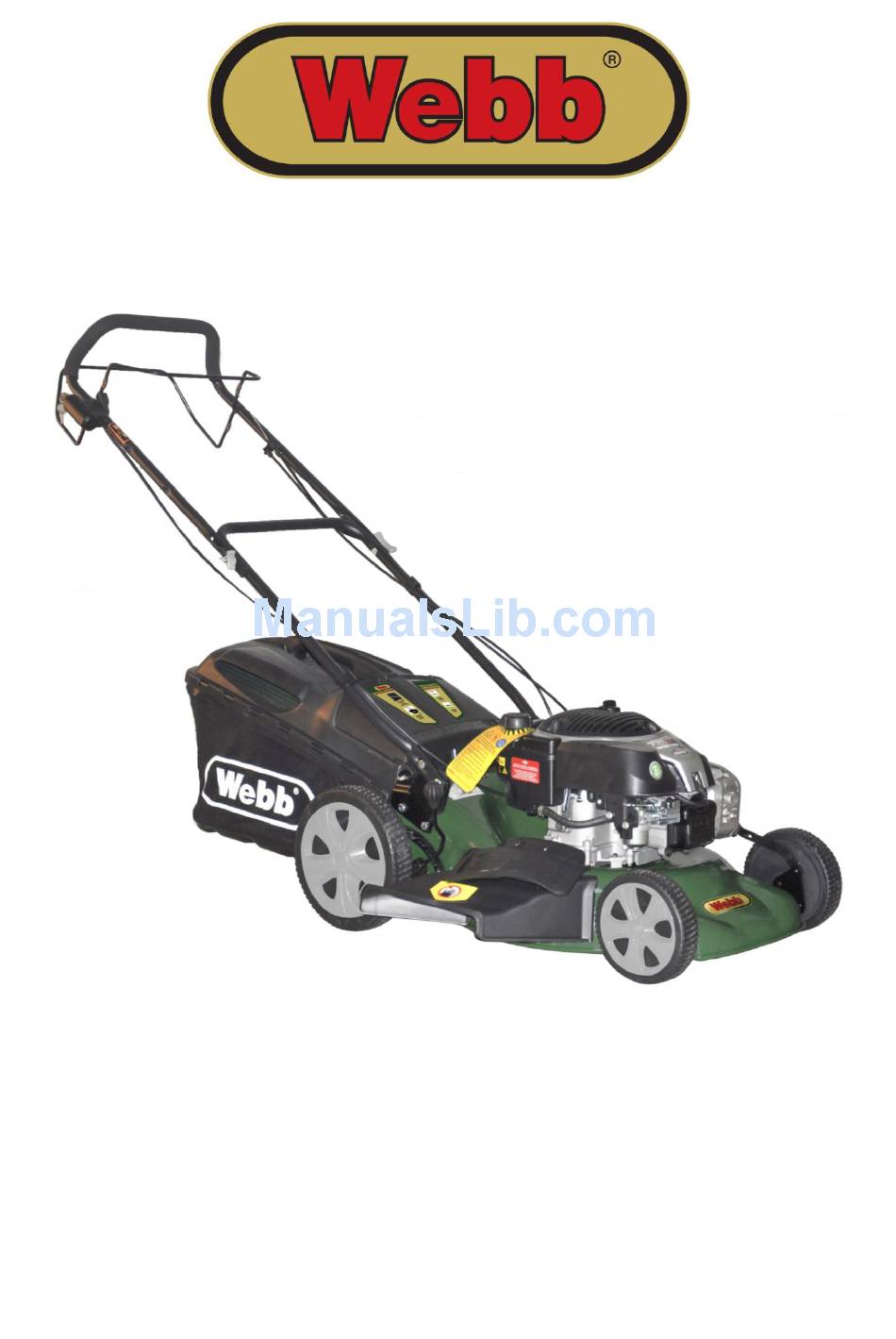

- Page 1 WER18SPES OPERATOR’S MANUAL AND PARTS LIST Electric Start Self Propelled 18 Inch High Wheel Petrol Lawnmower Spares & Support: 01793 333212 - www.webblawnmowers.co.uk Before use, please read & understand this manual, paying particular attention to the safety instructions. 193811001 10/12/2014...
-
Page 3: Table Of Contents
Start/Stop Engine Maintenance Trouble Shooting Parts Drawing & List Warranty Terms & Conditions EC Declaration of Conformity Warranty Registration PRODUCT SPECIFICATION Model Number WER18SPES Product Number 193811001 Petrol Engine Briggs & Stratton 775E Series Engine Cubic Capacity(cc) 161cc Engine Speed 2800rpm... -
Page 4: Product Highlights
PRODUCT HIGHLIGHTS Brake Lever Drive Lever Push Button Hose Connector Triangle Knob Start Height Adjust Handle Fuel Cap B&S 775E Series Exhaust Muffler Grass Collector Side Discharge IMPORTANT: Failure to observe the following safety instructions could result in serious injury. WARNING: In order to prevent accidental starting when setting up, transporting, adjusting or making repairs, always disconnect the spark plug lead. -
Page 5: General Operation & Safety Rules
GENERAL OPERATION AND SAFETY RULES Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. Do not put your hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. - Page 6 Before using, always visually inspect to ensure that the blade, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. Never tamper with safety devices. Regularly check that they are operating properly. ...
-
Page 7: Assembly/Pre-Operation
ASSEMBLY/PRE-OPERATION Read this instruction manual in its entirety before you assemble or operate your new lawnmower. Your new lawnmower has been assembled and tested at the factory. Roll the lawnmower out of the carton and check the carton thoroughly for additional loose parts. IMPORTANT: The lawnmower is shipped WITHOUT OIL OR PETROL in the engine. - Page 8 Insert the Brake Cable into the OPC Lever. Insert the Drive Cable into the Drive Lever. Re-seat the lever assembly back into the main handle...
- Page 9 ASSEMBLE HANDLE Fit the Lower Handle to the frame of the lawnmower. Insert 1x Square Neck Bolt M8x30 in the lower hole of the handle and frame from the outside. Once through, add the Flat Washer and Small Triangle Knob with M8 Hex Nut, tighten until they are secure.
-
Page 10: Operation
OPERATION DRIVE CONTROL (Model: WER18SPES) The drive is controlled by holding the Operator Presence Control bar down to the handle and pulling the Drive Control lever back towards the handle. Forward motion will stop when the Operator Presence Control bar is released. To stop forward motion without stopping the engine release the Drive Control lever until the drive control disengages and hold the Operator Presence Control bar down against handle to continue mowing without the drive. - Page 11 BEFORE STARTING ENGINE ADD OIL & PETROL Check the engine manufacturers Instruction Manual, to ensure you do not invalidate the engine warranty, before undertaking any actions. YOUR LAWNMOWER IS SHIPPED WITHOUT OIL OR PETROL IN THE ENGINE. Before each subsequent use, the oil level must be checked and if necessary topped up with SAE30 engine oil.
- Page 12 START ENGINE Insert the battery pack into the engine, ensuring it is secure. Press the battery pack start switch, watch the LED indicator, check the level on the LED indicator. Fig 2.(Note: charge the battery pack if the LED indicator does not illuminate) ...
-
Page 13: Maintenance
MAINTENANCE IMPORTANT - Regular, careful maintenance is essential for keeping the safety level and original performance of the machine unchanged over time. 1) Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. Regular maintenance is essential for safety and performance. - Page 14 CHANGING BLADES Empty the oil tank before removing the blade. To replace the blade, undo the blade securing bolt. This will be very tight and it is recommended that you wear protective gloves, due to the blade being very sharp. Blade Adaptor Blade Blade Washer...
- Page 15 AIR FILTER Unclip the air filter cover and remove the sponge filter element. To avoid objects falling into the air intake, replace the air filter cover. Air Filter Cover Air Filter DRAINING THE FUEL TANK AND CARBURETOR Place an approved petrol container below the carburetor, and use a funnel to avoid spilling fuel. ...
-
Page 16: Trouble Shooting
MAINTENANCE SCHEDULE REGULAR SERVICE PERIOD(4) Every Every First Every 3 Every 6 Before Year Month Months Months ITEM Each Years Perform at every indicated month or or 250 5 Hrs 25 Hrs 50 Hrs operating hour interval, whichever comes first. Check Engine oil Replace... - Page 17 SERVICING We recommend that you take the machine to an authorised service dealer for annual servicing, maintenance and inspection of safety equipment. For service and spare parts, please contact your nearest approved service dealer, who can be found by visiting www.webblawnmowers.couk. STORAGE ...
-
Page 18: Handle Assembly
HANDLE ASSEMBLY Part Handy Part Part Handy Part Handy Product Handy Product Description Number Number Description WE113-1 Foam Handle Cover WE113-73 Triangle Knob Large (Grey) WE114-2 Brake Lever WE113-19 Hex Nut M8 WE114-3 Self-Propelled Lever WE113-20 Lower Handle WE113-4 Top Handle WE113-21 Cable Fastener WE113-5... -
Page 19: Deck Assembly
DECK ASSEMBLY Part Handy Part Part Handy Part Handy Product Description Handy Product Description Number Number WE115-1 Deck WE113-37 Hex Self-Tapping Screw M6x10/8.8 WE113-25 "O" Ring 11.2x2.65 WE113-38 Height Adjustment Spring WE113-26 Hose Connector Inlet WE113-39 Height Adjustment Rod WE113-27 Hose Connector Nut M12x1.25 WE113-40 R Pin 1.5x25... -
Page 20: Front Axle Assembly
FRONT AXLE ASSEMBLY Part Handy Part Handy Product Number Description WE118-8 Front Axle WE118-9 Wheel WE113-51 Wheel Bearing WE113-52 Lock Nut M8 WE113-75 Wheel Trim (Grey) WE113-54 Inner Wheel Cover... -
Page 21: Rear Axle Assembly
REAR AXLE ASSEMBLY Part Handy Part Part Handy Part Handy Product Handy Product Description Number Number Description WE115-15 Rear Axle with Height Adjustment Handle WE118-12 Drive Cog R WE118-10 Gearbox Assembly WE118-13 Drive Pin WE114-7 Bush WE118-14 Wheel 10" WE114-8 Bearing 6001RS WE113-51 Wheel Bearing... - Page 22 GRASS COLLECTOR ASSEMBLY Part Handy Part Handy Product Description Number WE113-58 Grass Collector Frame WE113-59 Grass Collector Top WE113-60 Grass Collector Filter Plate WE113-61 60L Grass Collector Bag (Unbranded) WE113-62 Rear Discharge Cover WE113-63 Rear Discharge Cover Shaft WE113-64 Rear Discharge Cover Spring WE113-65 Lock Washer 6 WE113-66...
-
Page 23: Blade Assembly
BLADE ASSEMBLY Part Handy Part Handy Product Description Number WE114-18 Blade Adaptor WE113-69 18" Double Edge Blade WE113-70 Blade Washer WE113-71 50mm Hex Flange Bolt WE114-19 Chassis Bushing WE114-20 Hex Self-Tapping Screw 3/8-16x1ST 30mm WE114-21 Hex Self-Tapping Screw 3/8-16x1ST WE114-22 Belt Cover... - Page 24 2. Period of Warranty All Webb, Handy Pro (Brushcutter & Long Handle Hedgecutter only) and Sanli domestic products (a) 2 years from the original date of sale to the first domestic user.
- Page 25 GJ HANDY & CO LTD USER WARRANTY POLICY 3. Not covered by this warranty The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident. The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the operators manual, or service parts replacement which would include oil, filters, tyres, belts, brake linings, fuses,...
-
Page 26: Ec Declaration Of Conformity
EC Declaration of Conformity We, Importer Handy Distribution SN3 5HY Declare that the product Model: WER18SPES Complies with the following directives: 2006/42/EC- Machinery Directive 2000/14/EC amended by 2005/88/EC- Noise Emission in the Environment by Equipment Use Outdoors Directive. The conformity assessment procedure followed was in accordance with... - Page 27 & & & &...
-
Page 31: Warranty Registration
Webb Lawnmowers, c/o Handy Distribution, Dorcan Industrial Estate Swindon, SN3 5HY, United Kingdom Tel: +44 (0) 1793 333220, Fax: +44 (0) 1793 834461 Email: customerservice@webblawnmowers.co.uk www.webblawnmowers.co.uk Warranty Registration Form Please go to www.webblawnmowers.co.uk and complete the registration for your machine, alternatively please fill in this form and return to the address above. - Page 32 Webb Lawnmowers, c/o Handy Distribution, Dorcan Industrial Estate Swindon, SN3 5HY, United Kingdom ----------------------------------------------------------------------------------------------------------------- -------...
