MSL-2A
Reinforcement
Loudspeaker
Operating Instructions

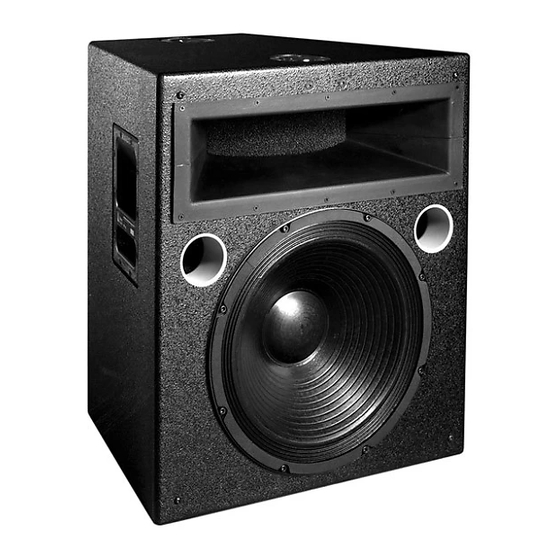

The Meyer Sound MSL-2A is a high-powered,
wide coverage loudspeaker for professional
sound reinforcement applications. Specifically
designed for touring reinforcement, the accu-
rate, rugged MSL-2A is a biamplified system
consisting of a proprietary 15-inch low-fre-
quency driver in a vented enclosure, and a 70-
degree high-frequency horn with a 2-inch (throat
diameter) driver.
Meyer Sound Laboratories, Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
The MSL-2A is designed to be operated as a
system with the Meyer Sound S-1 Control Elec-
tronics Unit (one S-1 per channel). The S-1
comprises electronic crossover, Meyer Sound
exclusive MultiSense™ driver protection cir-
cuitry with excursion protection, and amplitude
and phase response alignment circuitry opti-
mized for the loudspeaker.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MSL-2A and is the answer not in the manual?

Questions and answers

Related Manuals for Meyer Sound MSL-2A

Summary of Contents for Meyer Sound MSL-2A

  • Page 1 Reinforcement Loudspeaker Operating Instructions The Meyer Sound MSL-2A is a high-powered, The MSL-2A is designed to be operated as a wide coverage loudspeaker for professional system with the Meyer Sound S-1 Control Elec- sound reinforcement applications. Specifically tronics Unit (one S-1 per channel). The S-1...
  • Page 2 Unit. The S-1 functions as an active cross- connect the female end of the loudspeaker over, dividing the input sgnal into high and low cable to the MSL-2A, the male end of the frequency components. cable to the Meyer Sound pigtail adapter, and...
  • Page 3 In the case of the MSL-2A, the is supplied with either aircraft pan fittings (ring recommended maximum load is 420 lbs. (190 and stud) or ¦...
  • Page 4 MSL-2A Reinforcement Loudspeaker Operating Instructions Acoustical - MSL-2A/S-1 System Frequency response 40-18k Hz ±4 dB Maximum SPL Continuous 130 dB Peak 139 dB Maximum Peak (Music Signal) 144 dB HF Distribution Pattern Horizontal 70 degrees Vertical 60 degrees MSL-2A Loudspeaker...
