3

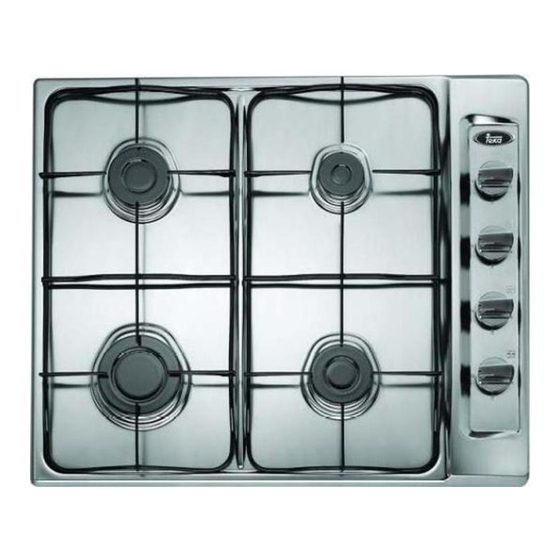

HOBS
When fitting a hob, installers should bear in mind the following series of important
recommendations in order to ensure the safety and correct working of the appliance:
During fitting, recessed hobs should be handled with care to prevent damage to the edges
or the glass surface of vitroceramic models.
With vitroceramic models, carefully check the glass surface to ensure there are no cracks.
Should there be even the slightest crack, do not proceed with installation.
If the hob is to be recessed over an oven, carefully follow all specifications indicated to
ensure correct ventilation.
Before installing, ensure that the gas supply characteristics are compatible with the
regulations indicated on the specification plate (gas type and pressure).
Installation and maintenance of the hob should be carried out by qualified personnel in
accordance with existing regulations.
Cabinet adhesives should be resistant to temperatures of 100ºC (Y type protection against
overheating, in compliance with the EN 60335-2-6 standard).
Minimum distances between the hob and extractor hood should be strictly observed: 65 cm
for electric hobs 70 cm for gas and mixed hobs.
Recess measurements should be similarly observed.
Recessed hobs with reinforced plates should be installed more than 15 cm away from side
walls. All other hobs should be installed at a distance of more than 10 cm.
The hobs referred to in this installation manual are compatible with TEKA ovens. In this
case consult the corresponding manual before installing.
The installation process does not differ much from model to model. Below are installation
instructions for each model in the range with both independent and ME controls and for gas,
electric and mixed models.
'
I
NSTALLER
26
M
S
ANUAL
Code Nº: PRM-00-0001
Revised / Date: 2006
Page Nº: 26 of 95

Advertisement

loading
Need help?

Need help?

Do you have a question about the E/60.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teka E/60.2

Summary of Contents for Teka E/60.2

  • Page 1 Recessed hobs with reinforced plates should be installed more than 15 cm away from side walls. All other hobs should be installed at a distance of more than 10 cm. The hobs referred to in this installation manual are compatible with TEKA ovens. In this case consult the corresponding manual before installing.
  • Page 2 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 27 of 95 NSTALLATION OF HOB E/60.2 AND ES/60.2 E/50 (1) Minimum distance to wall (1) Minimum distance to wall (2) Minimum ventilation distance (2)Minimum ventilation distance (3) Space for recess...
  • Page 3 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 28 of 95 SM AND CG, EC AND CGC, ECC CG LUX 60 Minimum distance to wall CG LUX 70 (2) Minimum ventilation distance (3) Space for recess...
  • Page 4 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 29 of 95 VITROCERAMIC HOBS (1) Minimum distance to wall (1) Minimum distance to wall (2) Minimum ventilation distance (2) Minimum ventilation distance TT 620 TR 620 TR 620, TZ620 AND TR 620, TZ620 AND TR640 TR640 (3) Space for recess...
  • Page 5 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 30 of 95 induction models nºs IR/IT 635, IR/IT 645 and IR 735 include a suplementary casing which shoud be fitted when installing the appliance under a drawer.
  • Page 6 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 31 of 95 Plate Nº TR 932 1. Minimum distance between ajacent walls 2. Interior cut measurement 3. Exterior work surface measurement 1. Minimum distance between adjacent walls 2.
  • Page 7 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 32 of 95 IR 622, IZ 622, IT622 (1) Minimum distance to wall (2) Minimum ventilation distance (3) Space for recess The installation process is the same as for vitroceramic hobs, bearing in mind it will be necessary to take greater precautions to ensure improved ventilation for the recess space.
  • Page 8 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 33 of 95 ITTING THE HOB TO ITS RECESS C - Serie Soft plate B - How to fit this plate in a 60cm cabinet D - 60 cm cabinet -{}- E - Detail The minimum vertical distance from...
  • Page 9 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 34 of 95 For models Nºs CG.1 4G, CG.1 3G1P and Vitroceramics: Self threading screw for kitchen cabinets with a thickness of 20 mm or 30 mm Place the attachment clips as shown in the illustration (fig.
  • Page 10 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 35 of 95 In the 600x510 series, the procedure for fitting the plate is identical to other procedures. This hob is designed to be recessed into worktop surfaces with a thickness of 20, 30 or 40 mm.
  • Page 11 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 36 of 95 TR 932 For all models with bevelled edges, before installing the hob it is necessary to remove any remains of material and check that the seal is correctly in place.
  • Page 12 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 37 of 95 TEKA IXING CARDANS IN CONTROL FREE HOBS TO OVEN 1) Disconnect the electrical supply. 2) Remove the telescopic attachments by pushing the small button marked PUSH (A) with the point of a screwdriver until it can be pulled out a few centimetres.

  • Page 13: Gas Connection

    Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 38 of 95 With respect to the CGC 4G AI AL hob Connecting the hob to the oven is carried out in the same way as before, apart from step 7, which needs to be altered: 7) Fit the oven trim as instructed in the accompanying manual.

  • Page 14: Electrical Connection

    Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 39 of 95 LECTRICAL CONNECTION Before connecting the hob to the mains supply, check that the voltage and frequency correspond to the characteristics on the specification panel (situated underneath the appliance). Ensure that the connection to the mains supply is at the correct voltage.
  • Page 15 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 40 of 95 CONTROL PANEL INSTALLATION LUX glass control panels Make an opening in the kitchen cabinet with the following measurements: 557 / 565 mm long, 95 / 110mm high.
  • Page 16 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 41 of 95 Metallic control panels Make an opening in the kitchen cabinet with the following measurements: 435 x 70 mm. To make this opening, draw the outline and the attachment holes with the paper stencil supplied with the panel.
  • Page 17 Code Nº: PRM-00-0001 ’ Revised / Date: 2006 NSTALLER ANUAL Page Nº: 42 of 95 Models IR/IT 635, IR 735 and IR/IT 645 feature new casings manufactured from synthetic glass fibre which allow for a reduction in the height of the hob, improving their installation above other electrical appliances such as ovens, dishwashers or even closed drawers.
