UMAX Data Systems Astra 1220U Service Manual page 45

ITEM # Description
01 MOTOR, 12V, M42SP-4, SUN
02 BRACKET, IDLER, SUN
03 BLOCK, POSITIONING, UTA-V
04 SHAFT, ROD, SUN
05 BRACKET, MOTOR, SUN
06 SCREW, MCT, T, M3X6, NI
07 SCREW, MCP, M3X12, ZN
08 SCREW, MCP, T, M4X6M, ZN
09 E-RING, 2.5D, NI
10 E-RING, 5D, NI
11 RUBBER, TIMER BELT, 397T, SUN
12 GEAR, 90T-PULLEY 25T
13 PULLEY IDLER 25T, CP2.032
14 GEAR, 40T-18T, SUN
15 FRAME, SLIDE, SUN

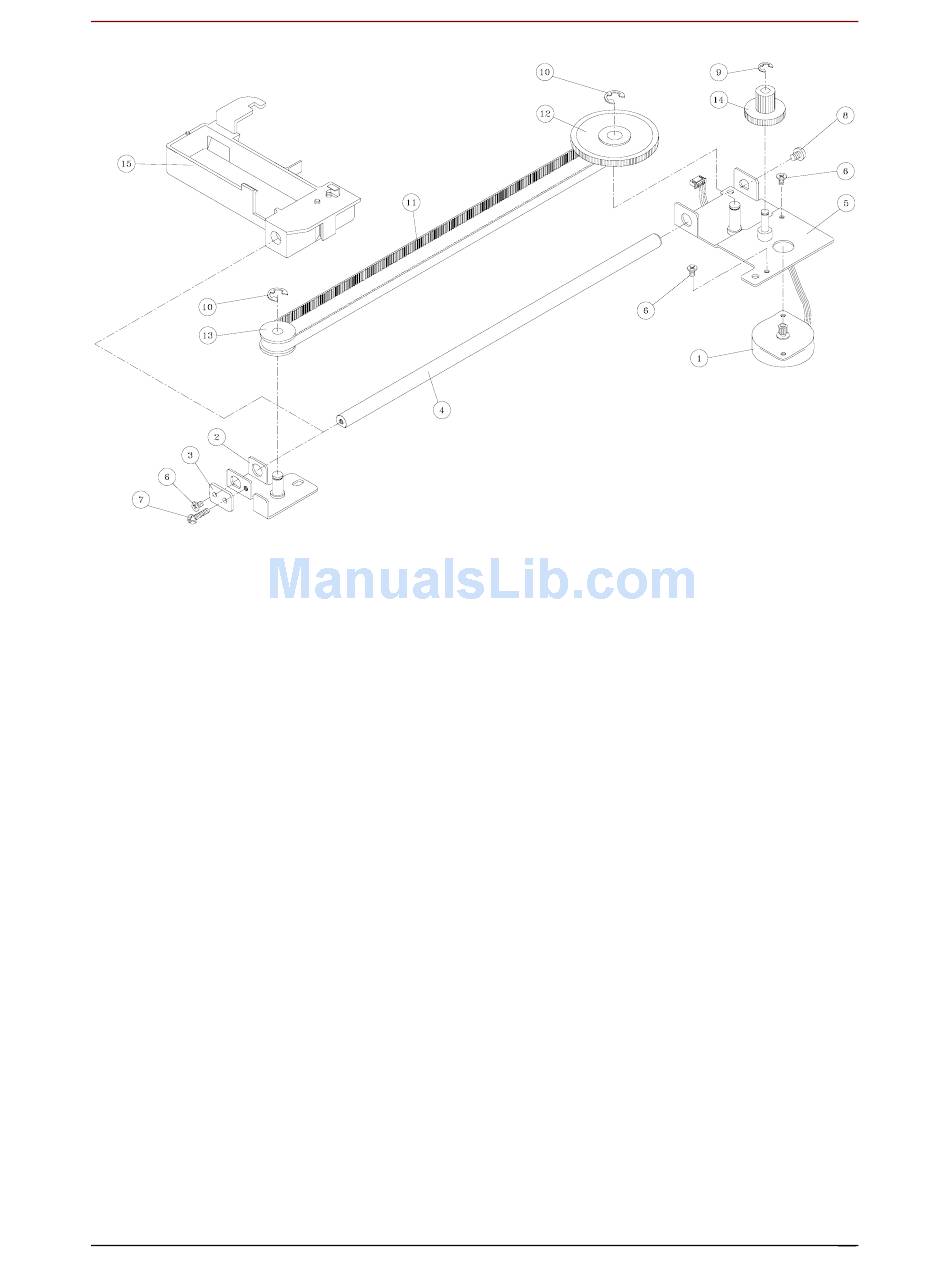

Motor Assembly Diagram
Service Manual
41
