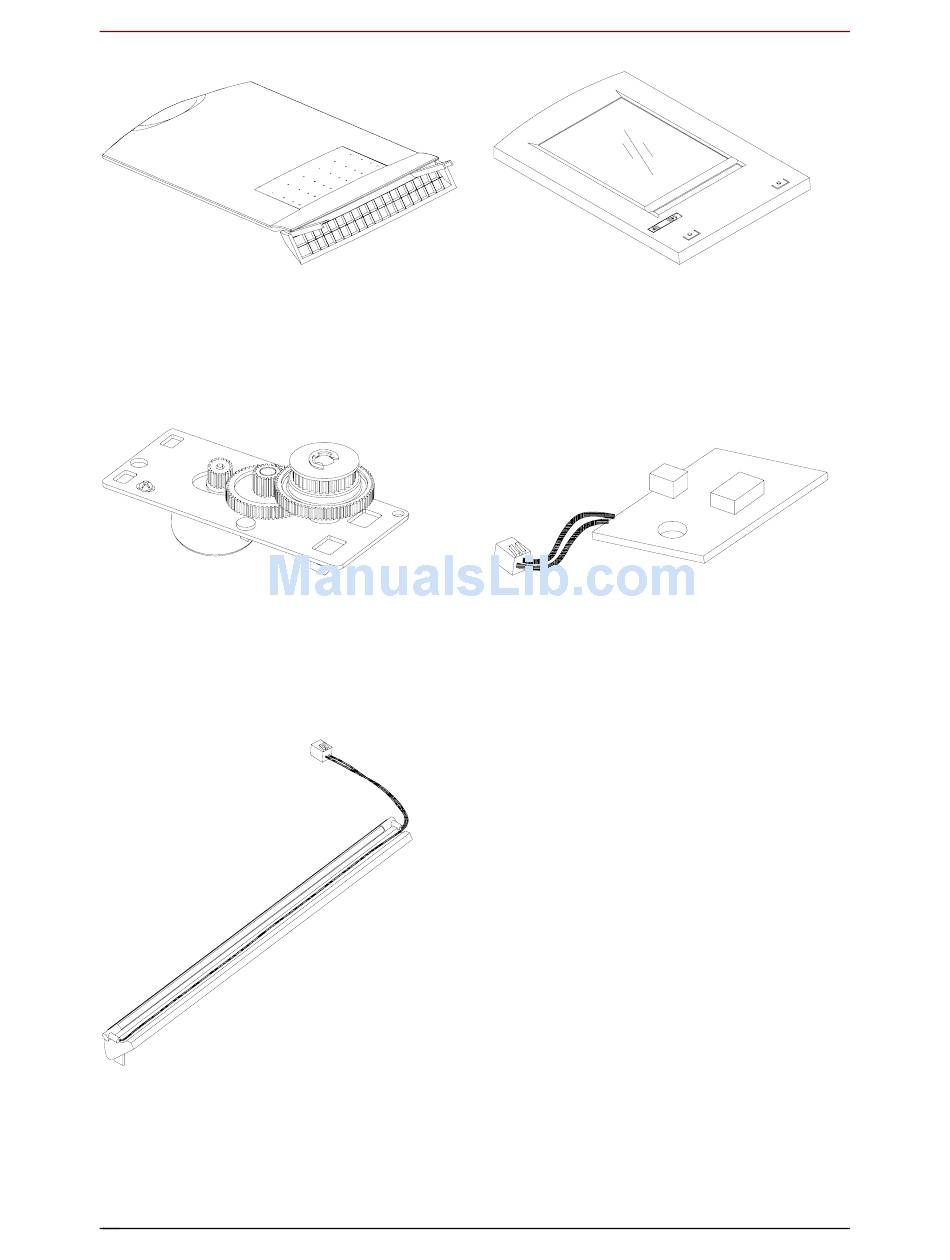

Service Manual
Part No: 030201-08
KIT,DOCUMENT COVER, Astra 1220
Part No: 030203-09
KIT,MOTOR A'SSY,35Dx16T,W/O CORE
Part No: 030206-10
KIT,LAMP A'SSY,COLD-CATHODE
18
Part No: 030202-16
KIT,UP HOUSING, Astra 1220
Part No: 030205-05
KIT,INV,2.6¢px250x1,S12III,Garear
