Service Manual
ITEM #
Description
01
WIRE, LED, WITH CORE, SUNRISE
02
SPRING, PULLEY, MOUNT, LIFE
03
ROD,10D, LIFE
04
05
RUBBER, TIMING BELT, 380T, LIFE
06
DOWN HOUSING, SUNRISE
07
M'ASSY, IDLER PULLEY, SUNRISE
08
M'ASSY, MOTOR, SUNRISE
09
PCBA, H890, USE-M/B, SUNRISE
10
PLATE, MAIN BOARD, USB. ASTRA 1220U
11
SCREW, MCR, M3X4, NI
SCREW, UP HOUSING, M4X6XD8
24

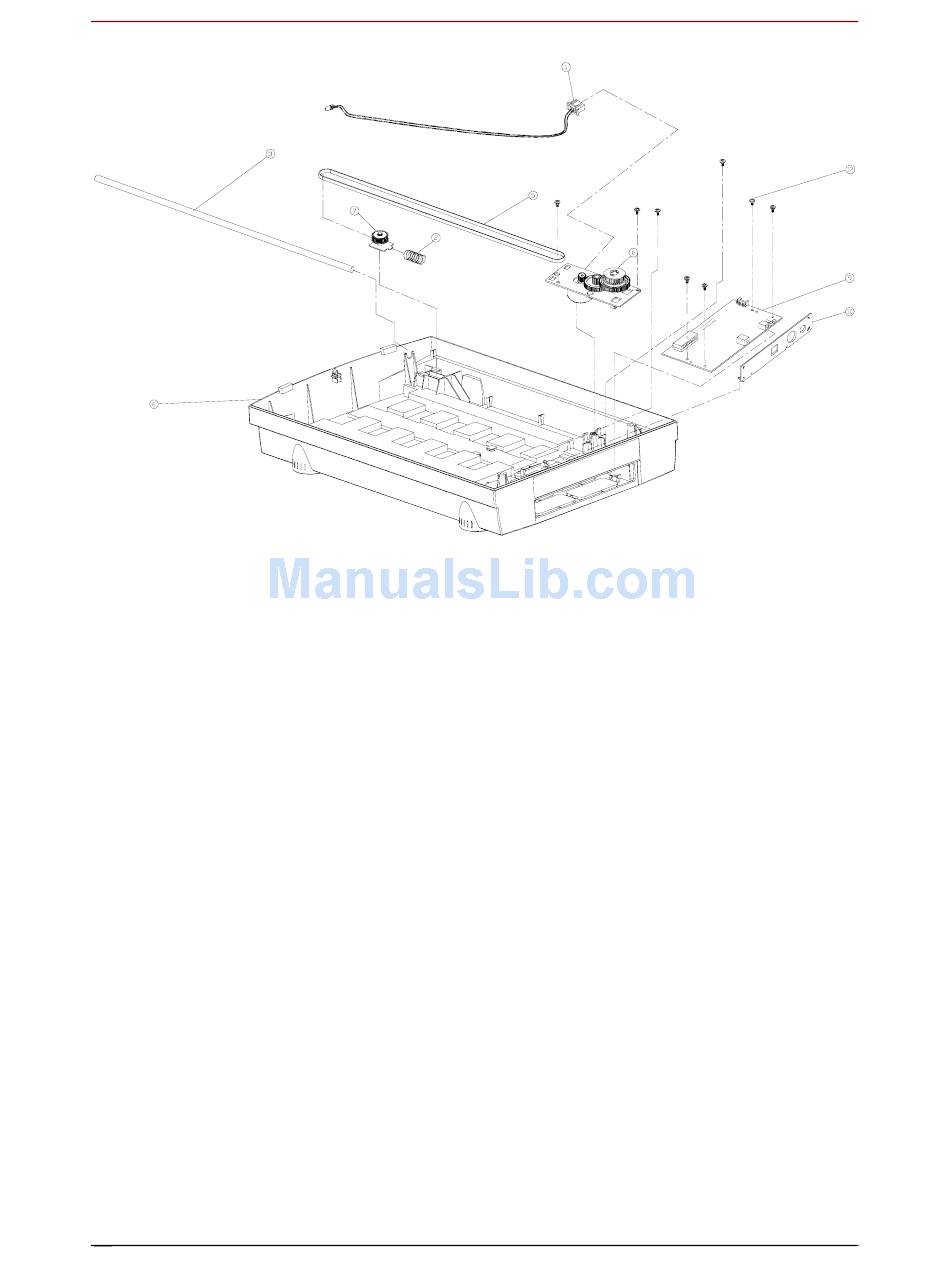

Mechanical Parts Diagram
