Service Manual
ITEM #
Description
01
INV, 9V, 2.6¢X250X1, SUN, COTEK
02
HOLDER, LAMP, SUN
03
CAP, LEFT, LAMP, SUN
04
CAP, RIGHT, LAMP, SUN
05
SHEET, DIFFUSE, 240X16.2MM, SUN
06
SHEET, REFLECT, 264X23MM, SUN
07
LAMP, A'SSY, D2.6X250L, FL-2650-MW, SUN
40

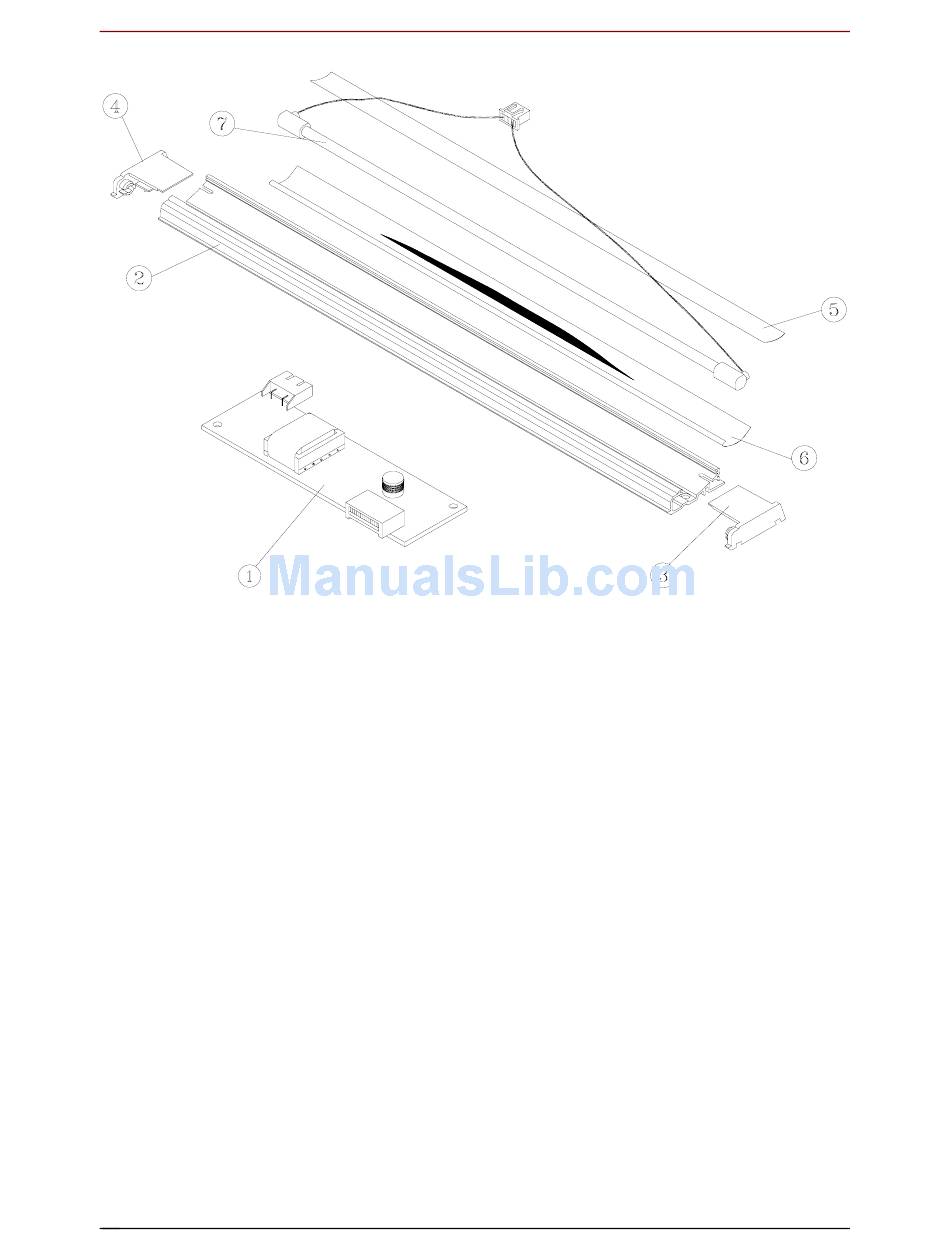

Lamp Assembly Diagram
