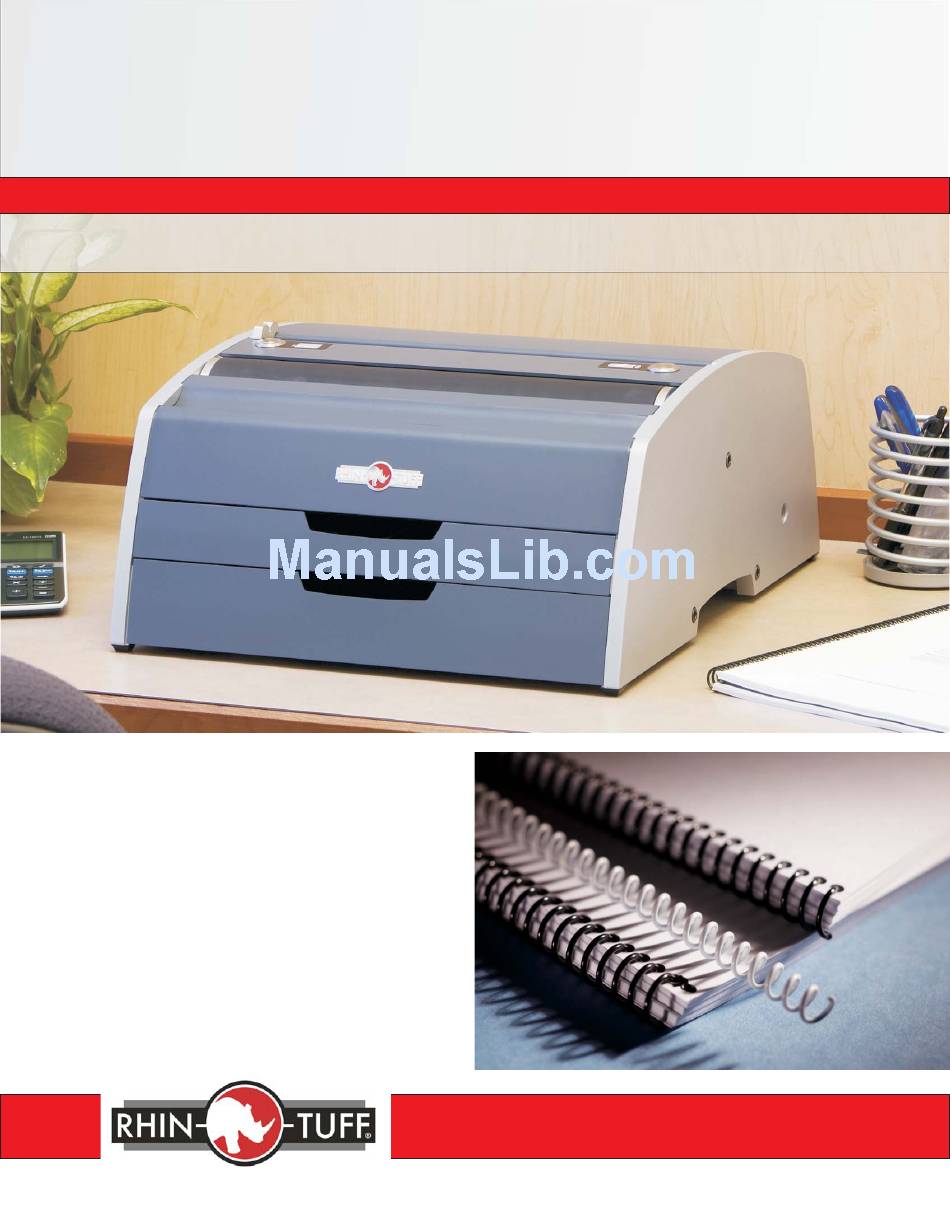

- Page 1 Pro Series 3250CL Features: 11” Punching Edge 25 Sheet Capacity** Book Former Easy to Use Coiler 3-Year Limited Warranty...
- Page 2 Features On-Off Switch Roller Start Built-in Edge Guide Roller Button Punch Button Book Former Carrying Grips Accessory Tray Waste Tray...
-
Page 3: Important Safety Notice
Capabilities & Specifications Important Safety Notice • Always replace fuses or circuit breakers with the correct amperage and type. • Never bypass safety devices. • Hazardous voltages inside of machine. • No user serviceable parts inside of machine. Machine should only be opened by qualified repair personnel. - Page 4 Setup Back of Machine On-Off Switch Power Fuse Cord •Position machine on Unpackage Turn power solid surface machine switch on •Plug power cord into wall outlet Punch •Insert paper, slide left, Prepare book to be press punch button coiled by placing the •Punch no more than Front Cover on top and 25 sheets of paper at...
- Page 5 Coil Determine the coil size needed by measuring the book thickness with guide on right side of the accessory tray. Move book from larger to smaller sizes until book just fits between guides. The number associated with the slot (i.e. 8mm) signifies what size of coil to use.
- Page 6 Coil •Manually start Coil into the first 3-4 holes on right hand side of book •Press Coil Button to start roller spinning •Gently bring the coil into contact with the front side of the spinning roller while holding the book in a horizontal plane as shown above •Allow coil to spin into the book Crimping...
- Page 7 Crimping Flip the entire book over so that the back cover is now on top •Position pliers with the RED dot facing up, to the ceiling as shown •Holding pliers horizontally, insert the plier tips around the last coil of the book on the right hand side of the book •Close pliers completely;...
-
Page 8: Troubleshooting
Troubleshooting Symptom Solution Machine will not punch •Plug power cord into wall outlet holes in paper •Check wall outlet has power •Switch machine power switch to the “on” position •Clear paper chips from the throat Holes punch on of the punch die the edge of paper •Seat paper completely into the bottom of the punch die... -
Page 9: Warranty
Performance Design LLC Boise, ID. Web: www.rhin-o-tuff.com E-mail: pdi@pdibind.com **25 sheet punching capacity is based upon 25 sheets of 20lb copy paper, punching 44 holes on an 11” paper edge. - Page 10 STRONG • SIMPLE • HONEST • CAPABLE TUFF AND BUILT TO LAST EASY TO USE & MAINTAIN TRUSTWORTHY & SOUND NEVER LETS YOU DOWN...
