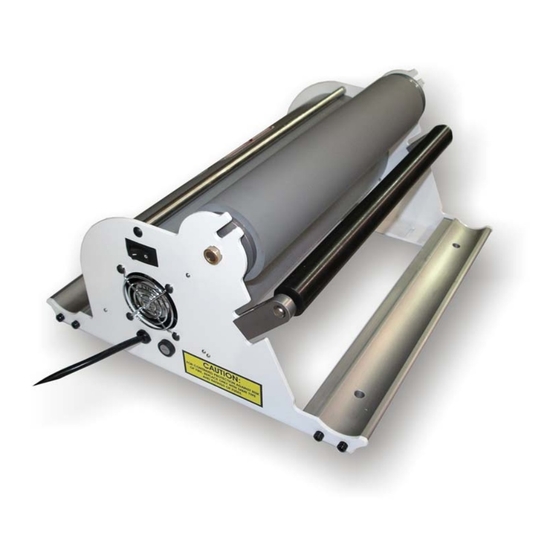

Coil inserter. operator’s training manual

Advertisement

HD-e4100
Econ-O-Roll Coil Inserter
Operator's Training
Manual
Issue "0" 12/06
PDI Part # 941005
Performance Design Inc.
2350 East Braniff St.
Boise Idaho 83716
Issue "0" Part # 941005
www.RHIN-O-TUFF.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Econ-O-Roll HD-e4100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rhin-O-Tuff Econ-O-Roll HD-e4100

  • Page 1 HD-e4100 Econ-O-Roll Coil Inserter Operator’s Training Manual Issue “0” 12/06 PDI Part # 941005 Performance Design Inc. 2350 East Braniff St. Boise Idaho 83716 Issue “0” Part # 941005 www.RHIN-O-TUFF.com...
  • Page 2 The HD-e4100 Econ-O-Roll Coil Inserter can attach to the HD-6500, HD-7000, HD- 7700, OD-4000, and OD-4012 Rhin-O-Tuff punches and can also stand alone. This manual discusses all of the necessary steps to use and care for your machine.
  • Page 3: Table Of Contents

    2) Overview of your HD-e4100 Econ-O-Roll Coiler. 3) Placing the HD-e4100 in the proper location & Binding Styles. 4) Detailed Use of the HD-e4100 Econ-O-Roll. 5) Cleaning the HD-e4100 Econ-O-Roll. 6) Product Registration. 7) Optional Binding Station Accessories. Issue “0” Part # 941005 www.RHIN-O-TUFF.com...
  • Page 4: Important Safety Notice

    Econ-O-Roll Coil Inserter. Never operate the HD-e4100 Econ-O-Roll Coil Inserter if the provided power cord does not fit your outlet. Power cord shall be certified for the country where the machine will be installed. Issue “0” Part # 941005 www.RHIN-O-TUFF.com...
  • Page 5: Overview Of Your Hd-E4100 Econ-O-Roll Coiler

    8- Fuse Holder: Always replace fuses with the correct amperage and type (PDI P/N 001763 115VAC or 001664 230VAC); 115VAC use; 1ea. FUSE,1 AMP 1/4 X 1 1/4 MDL-1-R 230VAC use; 2ea. FUSE,1 AMP M5 X 20 GMA-1-R Fig. A Issue “0” Part # 941005 www.RHIN-O-TUFF.com...
  • Page 6: Placing The Hd-E4100 In The Proper Location & Binding Styles

    3) Placing the HD-e4100 in the proper location & Binding Styles; Locate a clear work area with an outlet within 5 feet that provides a 15-amp service (16-amp European) which is protected at the customer’s circuit box. The work area must be a solid, firm cabinet or a heavy duty table with a flat level surface.
  • Page 7 4.2) Coiling. See Fig. C. Once the coil has been started, using both hands, rotate the book (1) so that it is level to the table surface. While holding the book close to the binding edge so that the pages and holes stay aligned, set the coil on top of the Lower Roller (2) and lightly “bump”...
  • Page 8: Cleaning The Hd-E4100 Econ-O-Roll

    6) Product Registration; Product registration is important to establish trouble free warranty repair of any of your Rhin- O-Tuff equipment. Please fill out and mail in the card provided with your machine or register on-line at www.RHIN-O-TUFF.com...
  • Page 9 7) Optional Binding Station Accessories; Attachable to NEW EZ-Coil 4101 Book Former: The HD-4102 Docking Station Links the HD- e4100 Coil Inserter with the HD-4101 Book Former. Providing Controlled EZ-Coil Insertion with larger coil sizes up to 50MM. The HD-4104 Coil Chute Keeps the coil tangle free.
  • Page 10 Part #941005 12/06...
