- Page 1 USeR MANUAL Safe’N See Digital Video Monitor W/ Talk to Baby™ Intercom Model #: LV-TW501 www.myLevana.com...
-
Page 2: Product Warranty Information
USA 14227 Warranty Terms 1. LEVANA products are guaranteed for a period of one year from the date of purchase against defects in workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price at LEVANA’s option. -
Page 3: Table Of Contents

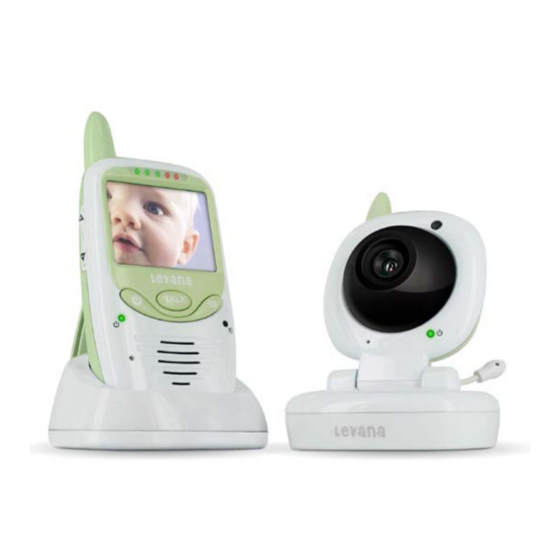

INTRODUCTION Congratulations on your purchase of the Levana TW501 Digital Video Baby Monitor! This monitor uses advanced Clearvu® digital technology that will deliver a crystal clear view of your baby’s room no matter where you are in the house. Feel free to relax and take comfort in knowing that your child is in good hands with Levana. -
Page 4: Features
ClearVu® technology ensures outstanding image and sound clarity so that you can watch and listen to your child up to 450ft away. With Levana, you’ll never miss a moment. Temperature Monitoring to Ensure Safety Many studies indicate that your baby’s room should be between 61°-68° F (16°-20° C). This system is equipped so you can monitor the temperature in your baby’s room and know that they are always safe and... -
Page 5: What's Included
FEATURES All-in-One Table Stand and Belt Clip The table-stand also functions as a belt clip for ultra usability. With the table stand, place the monitor upright when you are in the same room or carry the monitor with you and still have both hands available by using the belt clip. -
Page 6: Buttons And Connections - Monitor
BUTTONS AND CONNECTIONS - MONITOR... - Page 7 BUTTONS AND CONNECTIONS - MONITOR 1. Antenna Transmits and receives signals 2. Volume Level LEDs Indicates the amount of sound being heard by the camera 3. Increase Volume and Brightness Increases the volume through the speaker, and adjusts settings in the menu 4.
-
Page 8: Buttons And Connections - Camera
BUTTONS AND CONNECTIONS - CAMERA... -
Page 9: Night Light
BUTTONS AND CONNECTIONS - CAMERA 1. Antenna 6. CDS Light Sensor Transmits and receives signals Detects the absence of light and turns on night vision 2. Night Vision IR LEDs 7. Power LED Allows you to see up to 10 feet in complete darkness Indicates that the camera is powered on... -
Page 10: Setting Up Your System
SETTING UP YOUR SYSTEM Placing the Baby Monitor This monitor can be placed on a tabletop, you can also carry it on your belt or hang it from a screw on the wall. 1. You can set up the monitor on a tabletop by turning the belt clip down and using it as a support stand. -
Page 11: Using The Rechargeable Battery
SETTING UP YOUR SYSTEM Using the Rechargeable Battery 1. Turn the belt clip on the back of the monitor unit, upwards. 2. Remove the battery compartment cover by sliding it down off the back of the monitor 3. Insert the included rechargeable battery, plug the battery cord in to the small jack on the inside of the battery compartment. -
Page 12: Camera Operation
CAMERA OPERATION Switching the Camera ON/OFF Position the camera to view the area you wish to monitor, angle the camera lens for best view, by turning it up or down. 1. Slide the power switch to the ON position. 2. The Power LED on the front of the camera will light up green. -
Page 13: Monitor Operation
1. Press and hold the power button until you hear two beeps. 2. The LEVANA logo will appear on the screen for a moment followed by the picture being transmitted. 3. To turn off the unit, press and hold the power button again for 1 second. -
Page 14: Switching The Night Light On/Off
MONITOR OPERATION Switching the Night Light ON/OFF 1. Press the menu button three times. 2. The night light icon will display on the screen along with the current status of the function, either ON or OFF. 3. Use the up and down buttons on the left side of the monitor to turn the night light of the camera ON or OFF. -
Page 15: Adjusting The Vox Sensitivity
MONITOR OPERATION Adjusting the VOX* Sensitivity VOX = Voice Operated Transmission = Sound Detection The VOX function causes the camera to transmit video and audio immediately after a sound is heard. Once transmission begins, the video will play for 10 seconds if no more noise is heard. Pressing a button on the monitor will also turn the screen and transmission ON at any time. -
Page 16: Intercom Feature
MONITOR OPERATION Intercom Feature This video baby monitor is equipped with a 2-way audio intercom to enable you to talk to and soothe your baby back to sleep without going into the room. 1. Press and hold the intercom button in the middle of the front of the monitor. -
Page 17: Pairing The Devices
PAIRING THE DEVICES The camera and monitor come paired (connected) together. If you do receive this package and the devices do not automatically connect and transmit, you may do so manually. 1. Slide the power switch on the right hand side of the camera to the OFF position. Light Sensor 2. -
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Equipment does not function • Camera and/or monitor are not switched on • The battery is dead or defective • The power adapters are not connected No reception • Camera and monitor are not paired • Camera is too far away from monitor •... -
Page 19: Specifications
SPECIFICATIONS Camera Specifications Input Power................100 - 240 VAC, 50 - 60 Hz ~ 200mA Output Power ................6 VDC ~ 800mA IR LEDs and Range ..............4 LEDs, 10 foot range Range..................450 Feet Maximum Frequency Range ..............2.4 GHz Operable Temperature ..............32 ˚ F to 104 ˚ F (0 ˚ C to 40 ˚ C) Transmission Power ..............15 ~17 dBm Monitor Specifications Input Power ................100 - 240 VAC, 50 - 60 Hz ~ 200 mA... -
Page 20: Fcc Statement
FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 21 SAFETY INSTRUCTIONS Non-Use Periods: Always unplug the AC adapters from the wall outlets during long periods of non-use. Ventilation: This baby monitor should not be used on a bed, sofa, rug or similar surface that may block the ventilation openings, or be placed in an enclosed area, such as a bookcase or drawer that may impede air flow.
