This chapter explains how to:
Locate DIP switches on internal and external Couriers
Configure with DIP switches
Configure with jumpers (internal Courier V.Everything only)

DIP Switches on the External Courier

Locating DIP Switches

On the external Courier V.Everything, the DIP switches are on the bottom
of the unit.

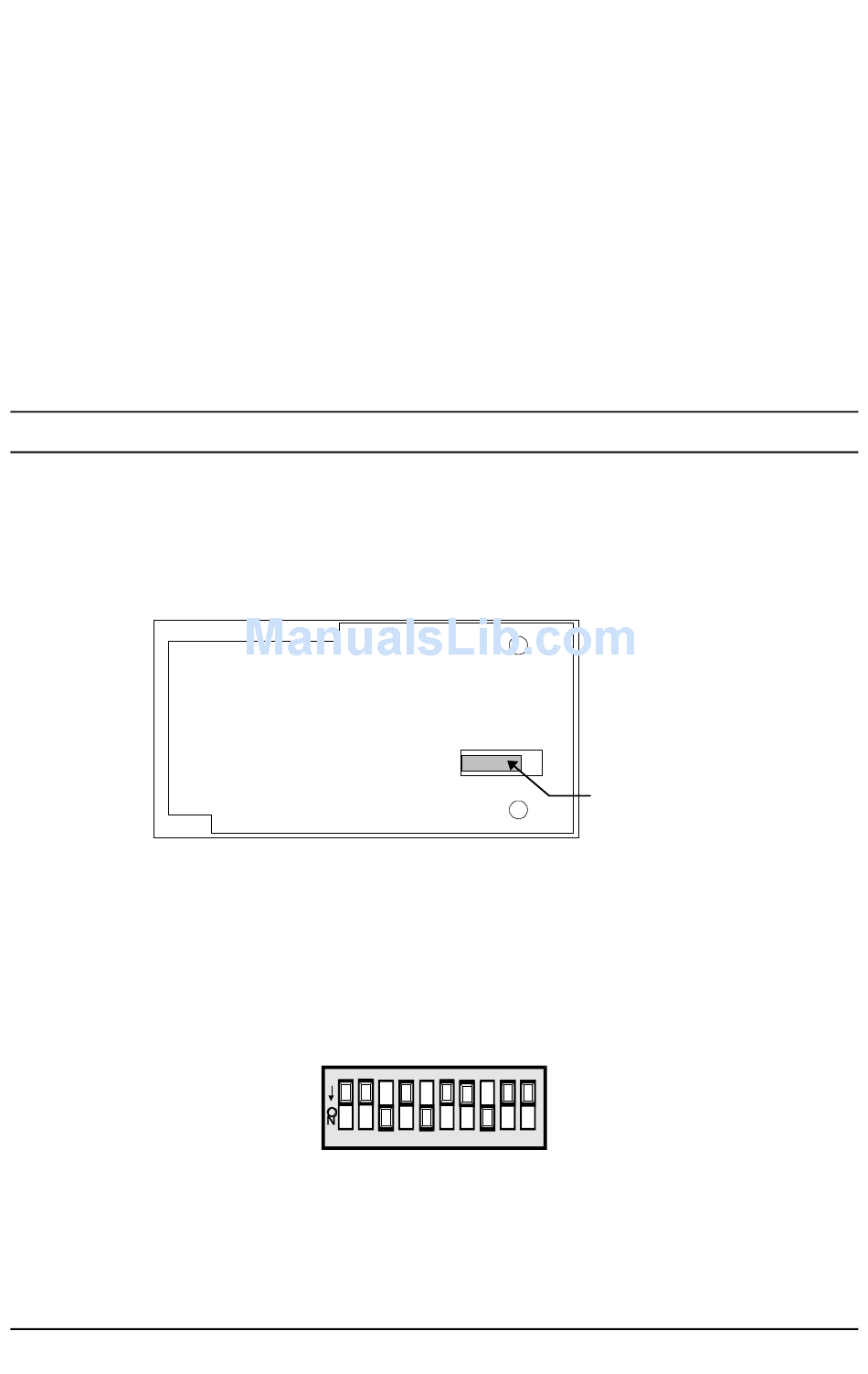

Figure 8. 1 DIP Switches on the External Courier

Default DIP Switches

DIP switches 3, 5, and 8 are ON. For Macintosh, you must change DIP
switch 1 to ON.
Figure 8.2 Default DIP Switches for the External Courier
DIP Switches and Jumpers
Configuring Your Courier
With DIP Switches and Jumpers
1 2 3 4 5 6
7 8 9 10
Chapter 7
DIP Switches
7-1
