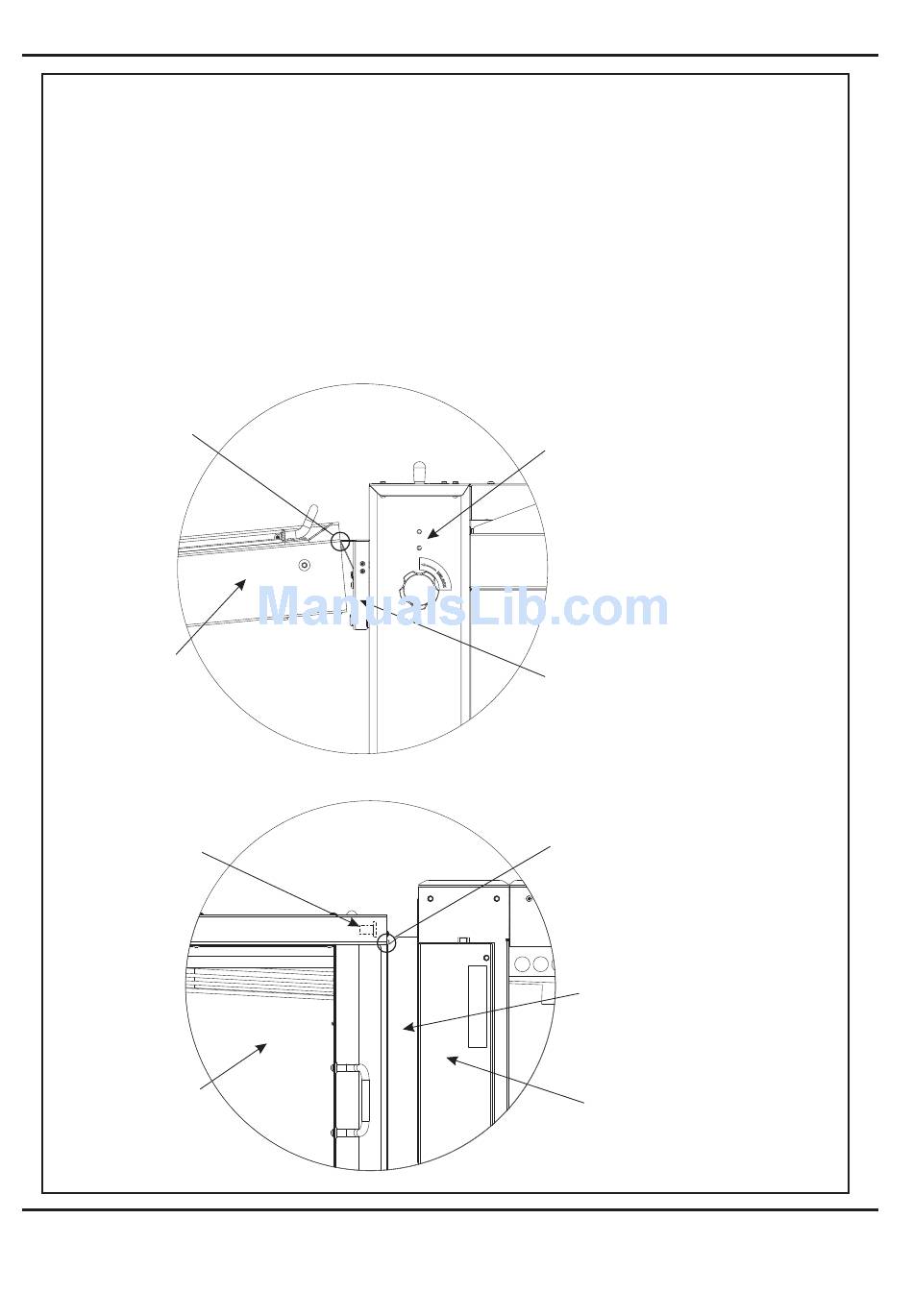

(iii) Adjust the relative positions of the machines so that the Transfer Bed Assembly aligns
with the Autofold Feed Bed as shown in FIG.9
(iv) Plug the connector, on the flying lead of the Transfer Bed Assembly, into the AutoFold
Socket as shown in FIG.9. This electrical connection between the AutoFold and the
AutoCreaser is a safety feature. If the system switch on the Autofold is switched off or
a jam occurs on the AutoFold the AutoCreaser will stop feeding.
NOTE.
When using the AutoFold with an AutoCreaser Pro 33 or an AutoCreaser Pro 50, it is
recommended that the AutoCreaser is set to Pulse Feed and the speed is set to number 2.
Depending on the type of crease and length of the paper, the speed setting may need to be
changed to speed number 1 or number 3.
Align Machines
As Shown
AutoFold
Feed Bed
AutoFold
Socket
AutoFold
Feed Bed
SYSTEM
Operating the AutoFold Pro
FIG.8
(FRONT VIEW)
FIG.9
(TOP VIEW)
Morgana
AutoCreaser Unit
AutoCreaser
Transfer Bed Assembly
Align Machines
As Shown
AutoCreaser
Transfer Bed Assembly
Morgana
AutoCreaser Unit
