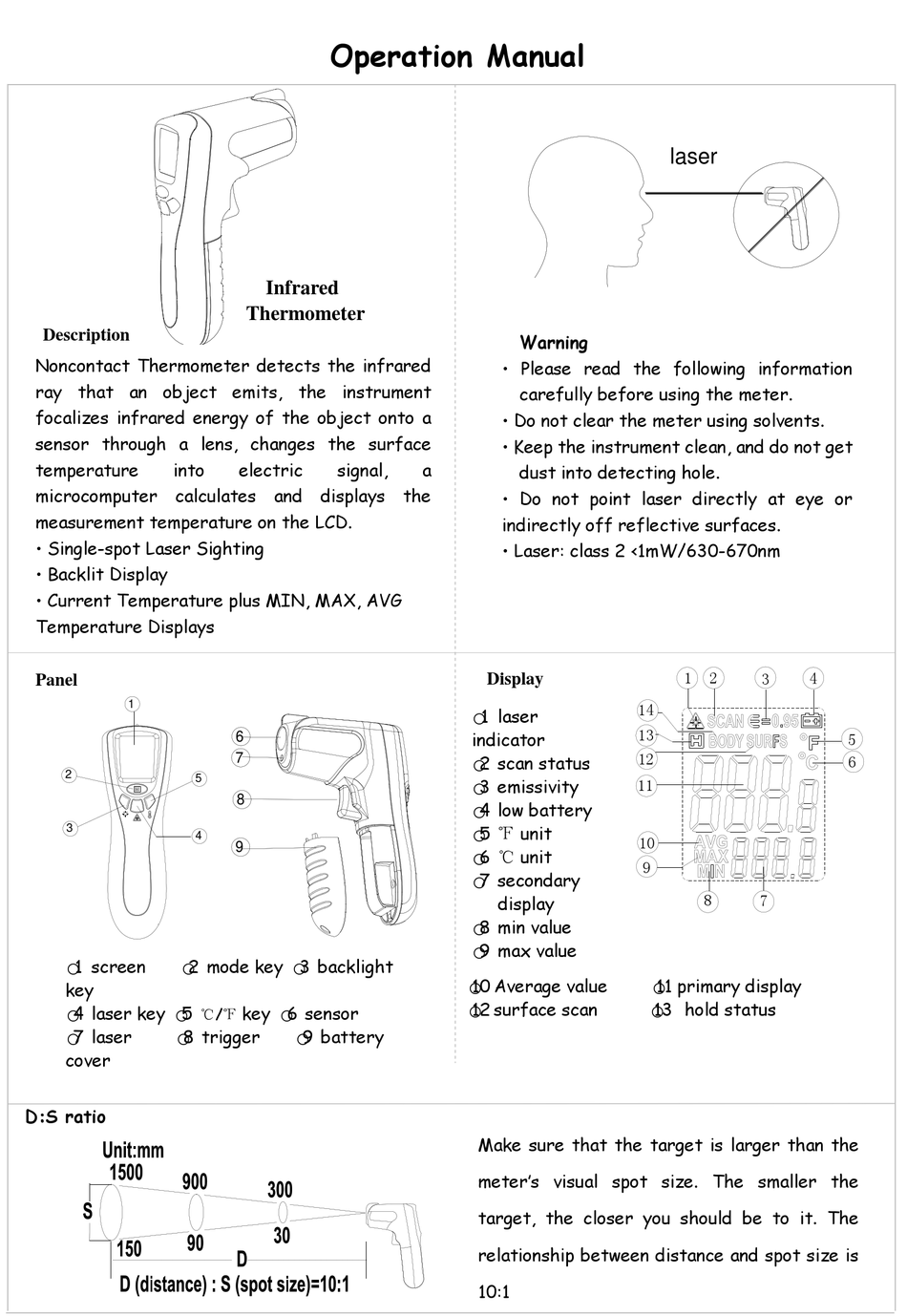

Mastech ms6520a Operation Manual

Description

Noncontact Thermometer detects the infrared
ray that an object emits, the instrument
focalizes infrared energy of the object onto a
sensor through a lens, changes the surface
temperature into
microcomputer calculates and displays the
measurement temperature on the LCD.
• Single-spot Laser Sighting
• Backlit Display
• Current Temperature plus MIN, MAX, AVG
Temperature Displays
• Preset Emissivity 0.95
• one 9V Batteries
Panel
1
2
5
3
4
○ ○
1 screen 2 mode key
key
○ 4 laser key ○ 5
○ ○
7 laser 8 trigger
cover
D:S ratio
Operation Manual
Infrared
Thermometer
electric signal,
6
7
8
9
○
3 backlight
key ○ 6 sensor
℃/℉
○
9 battery

Warning

• Please read the following information
carefully before using the meter.
• Do not clear the meter using solvents.
• Keep the instrument clean, and do not get
a
dust into detecting hole.
• Do not point laser directly at eye or
indirectly off reflective surfaces.
• Laser: class 2 <1mW/630-670nm
Display
○
1 laser
indicator
○
2 scan status
○
3 emissivity
○
4 low battery
○ 5 ℉ unit
○
6 ℃ unit
○
7 secondary
display
○
8 min value
○
9 max value
○
10 Average value
○
12 surface scan
Make sure that the target is larger than the
meter's visual spot size. The smaller the
target, the closer you should be to it. The
relationship between distance and spot size is
10:1
laser
1 2 4
3
14
13
12
11
10
9
8
7
○
11 primary display
○
13 hold status
5
6
