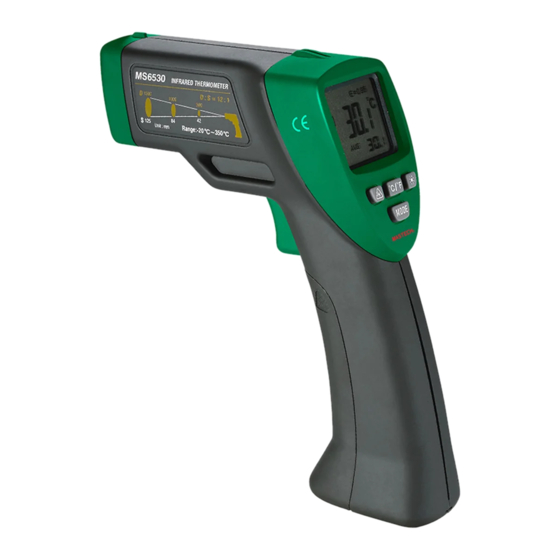

Mastech MS6530 Operation Manual

Noncontact

Table of Contents

Download this manual

Noncontact Thermometer

Operation Manual

Ⅰ. Safety information

Please read the following information carefully

before using the meter.

Do not clear the meter using solvents.

Safety symbols:

Important information prompt for denger.

Comply with European CE safety standards.

This instrument is compatible with the following standards:

EN61326-1

EN61010-1

EN60825-1

Warning

Do not point laser directly at eye or indirectly off reflective surfaces.

Ⅱ. Cautions

When ambient temperature changes quickly, must wait 30 minutes to balance the the heat of the

instrument before use.

Avoid EMF(electro magnetic fields) from arc weld, induction furnace, ect...

Do not leave the unit on or near high temperature objects.

Keep the instrument clean, and do not get dust into detecting hole.

Ⅲ. Explanation on parts

Table of Contents

Need help?

Do you have a question about the MS6530 and is the answer not in the manual?

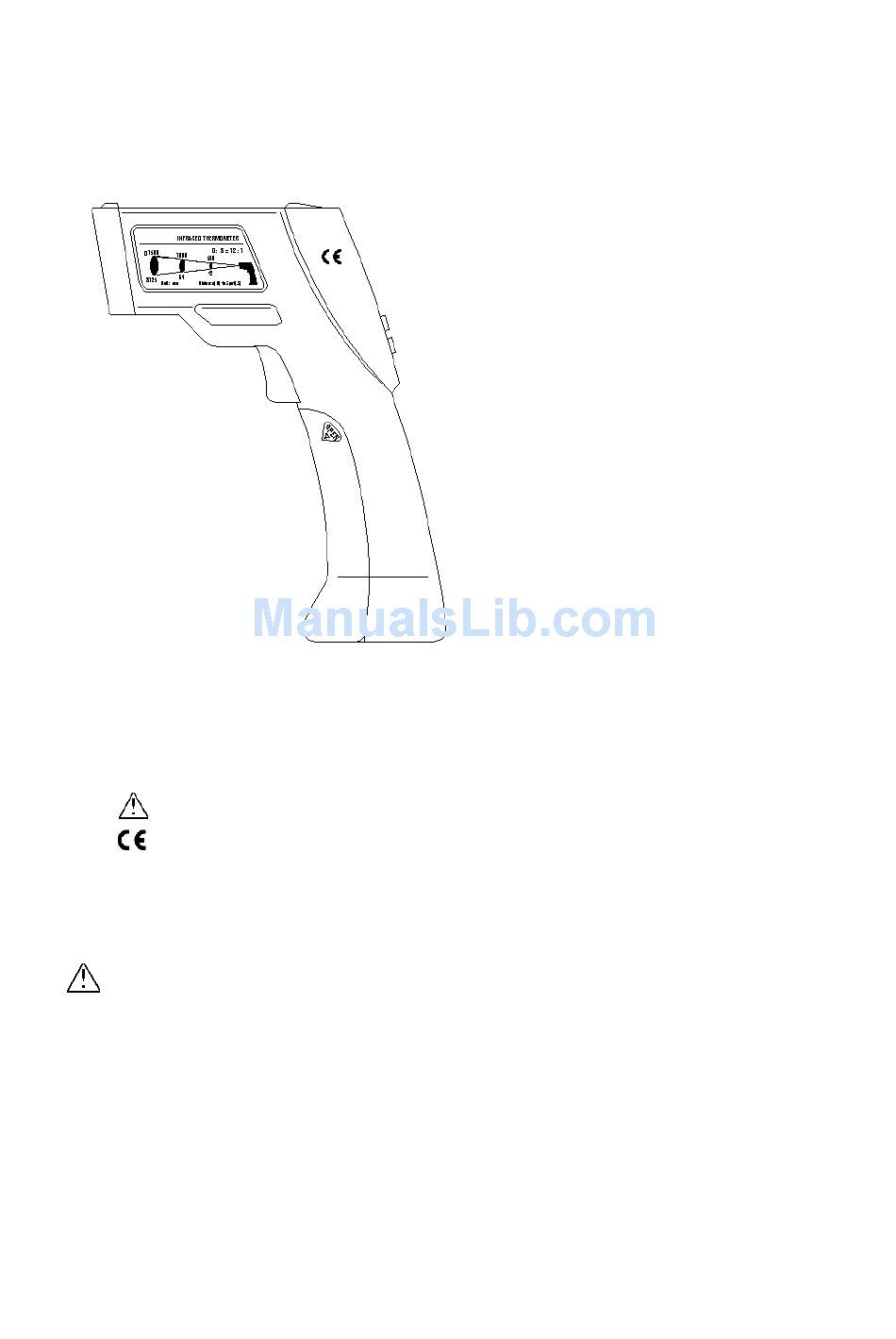

Page 1 Noncontact Thermometer Operation Manual Ⅰ. Safety information Please read the following information carefully before using the meter. Do not clear the meter using solvents. Safety symbols: Important information prompt for denger. Comply with European CE safety standards. This instrument is compatible with the following standards: EN61326-1 EN61010-1 EN60825-1...
Page 2 1. LCD 2. Laser button 3. Mode button 4. Backlight button 5. ℃/℉ button 6. Trigger 7. Battery cover 8. Tripod nut 9. Collimator 10. Laser emission orifice 11. Temperature detect hole Ⅳ. LCD illustration 12. Laser emission indicator 13. Holding indicator 14.
Page 3 When an object is far from the thermometer, by pressing laser button to light the laser to aim at object. To measure in the night, by pressing backlight button to light the backlight. By pressing “MODE” button to change the mode of the second temperature, it can show AVG(average) MAX(maximum), MIN(minimum), MAX-MIN.
Page 4 Measure range: -20℃~537℃ or -4℉~999℉ Accuracy: -20℃~50℃ ±2.5℃, 51℃~537℃ ±(reading＊1%+1℃) Response time: 0.5 second Laser power: less than 1 mw Automatic turn off: hold for 10 seconds Backlight: kelly operation surrounding: 0~40℃,10~90%RH Storage surrounding: -10℃~60℃,≤75%RH Battery: 9V 6F22 Size: Long 162*Width 56*high 190mm Weight: approximately 267g(inluding battery) Accessories: battery 9V, operation manual，bag...
