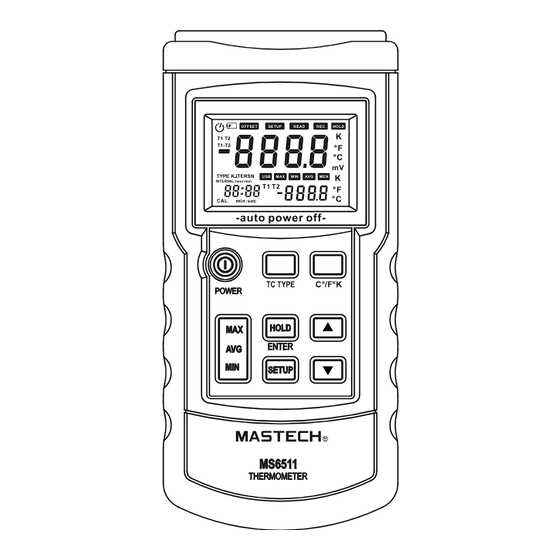

Digital Thermometer
OFFSET
SETUP
READ
T1 T2
T1-T2
TYPE KJTERSN
USB
MAX
MIN
INTERVAL hour:min
:
T1 T2
CAL
min:sec
TC TYPE
POWER
HOLD
MAX
ENTER
AVG
MIN
SETUP
MS6511
THERMOMETER
MS6511
SERIES
REC
HOLD
K
°F
°C
mV
AVG
MEN
K
°F
°C
C°/F°K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS6511 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mastech MS6511 SERIES

Summary of Contents for Mastech MS6511 SERIES

  • Page 1 MS6511 SERIES Digital Thermometer OFFSET SETUP READ HOLD T1 T2 T1-T2 °F °C TYPE KJTERSN INTERVAL hour:min T1 T2 °F °C min:sec TC TYPE C°/F°K POWER HOLD ENTER SETUP MS6511 THERMOMETER...

  • Page 2: Table Of Contents

    CONTENTS CONTENTS 5.4 Viewing MAX, 1. Safety Information ........1 MIN and AVG Readings....13 2. Product Overview ........3 5.5 Use Offset value To Adjust 3 Recognize Meter ......... 4 Temperature probe error....14 3.1 Component...........4 5.6 User Self-Calibration......14 3.2 Display............5 6. Data Storage........16 3.3 Keys Description...........6 6.1 Data Storage...

  • Page 3: Safety Information

    1.Safety Information • Do not apply voltage exceeding the rated voltage marked on the thermometer (30V) between In order to properly use the thermometer, please thermocouples or between thermocouple and read this user's manual carefully before using, ground. especially the “Safety Information” section. It is •...

  • Page 4: Product Overview

    3. Meter Description 2. Product Overview This digital thermometer uses a thermocouple with 3.1 Components microprocessor as the temperature sensor. It has the following features: • Suitable for various thermocouples, such as K, J, T, E, R, S, N(MS6511 and MS6512 are only suitable for J, K, T, E) OFFSET SETUP...

  • Page 5: Display

    3.2 Display Auxiliary display USB port Time display Indicate time display min: sec OFFSET SETUP READ HOLD T1 T2 Indicate calibrating state T1-T2 °F Indicate auto-save time setting °C Indicate time display hour: min TYPE KJTERSN Indicate thermocouple type INTERVAL hour:min T1 T2 °F °C...
  • Page 6 (MS6513 and MS6514 only) To change setting options or add functions, see specific operation TC TYPE C°/F°K T1/T2/T1-T2 C°/F°K POWER POWER for details To change setting options or reduce HOLD HOLD functions, see specific operation for details ENTER ENTER Read saved data (only for MS6513 SETUP SETUP READ...

  • Page 7: Setting Meter

    4. Setting Meter 4.2 SETUP Option Setting 1. Data storage interval setting (INTERVAL): 4.1 SETUP Option Press the SETUP to enter the data storage Press the SETUP key to enter setup mode. “ ” SETUP interval setting mode. “ ” will flash on the SETUP symbol will flash on the screen, Press it again to screen.
  • Page 8 4. OFFSET(T2) setting Press ENTER key to select time format, including “hour:min” or “min:sec”. Hold ▼ to quickly Users can adjust the thermometer show value to increase or decrease. If this setting is not changed, compensate for a certain kind of thermocouple the system time is the current thermometer error.

  • Page 9: Using Meter

    5. Using The Meter 5.5 Use offset Value To Adjust Temperature Probe Error 5.1 Connecting Thermocouple Use OFFSET (T1) and OFFSET (T2) in the SETUP 1. Insert the thermocouple to input jack option to adjust the thermometer readings to 2. Press the power key to turn on the compensate for a certain kind of thermocouple error.

  • Page 10: Data Storage

    e) Press “ENTER” key to save the current 6. Data Storage calibration value. 6.1Data Storage f) Press “T1/T2/T1-T2” key (or “TC TYPE” key) to Data is stored with two methods: manual storage switch to T1 measurement channel. and automatic storage g) Input 0μV in T1 measurement channel 1.

  • Page 11: Clearing Stored Data

    6.3 Clearing Stored Data 9.Technical Data The indicator is accurate within the temperature Enter the “Data Clearing (CLr)” item in the SETUP option. “CLr” will show on the screen. Phen press range from 18°C to 28°C, when relative humidity is “ENTER”...
  • Page 12 <-10°C: within +0.5°C； <-200°C: within +1°C T-type < -200°C for reference only Time Relative time 0~999, 1000 groups in total Data record Temperature ITS-90 scale Applicable NIST-175 standard Recording interval setting*, thermocouple type setting, thermocouple offset setting, automatic power-off time setting, system time Setting setting, power frequency setting, functions...

This manual is also suitable for:

Ms6511Ms6512
