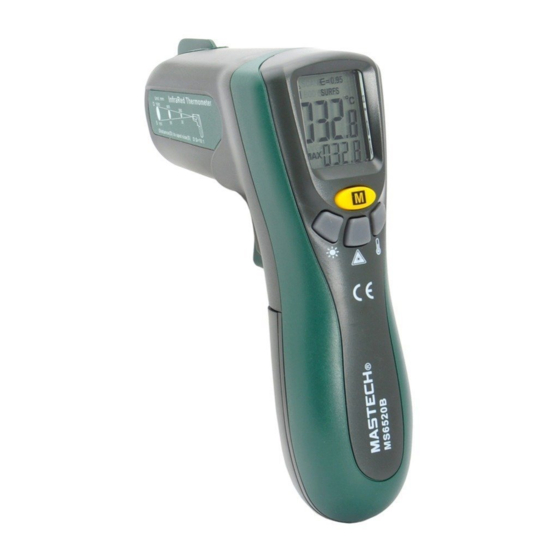

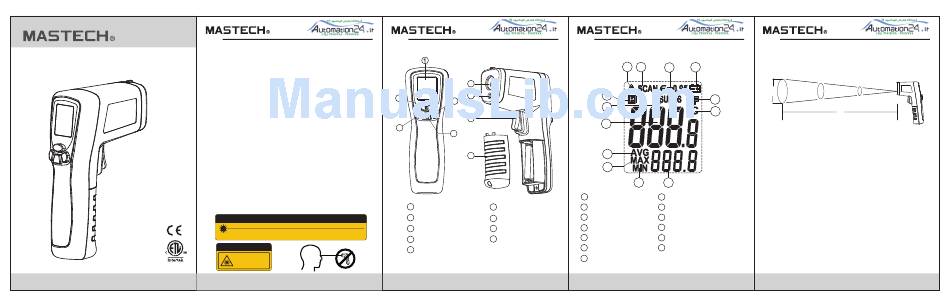

Mastech MS6520B Manual

MS6520 B
Infrared Thermometer
3080912
Description
Noncontact Themometer detects the infrared ray that
an object emits, The instrument foculizes infrared
energy of the object onto a sensor through a lens,
changes the surface temperature into electric signal,
a microcomputer calculates and displays the
measurement temperature on the LCD.
• Single-spot Laser Sighting
• Backlit Display
• Current Temperature Plus MIN, MAX, AVG
Temperature Displays
• Preset Emissivity 0.95
Warning
• Please read the following information carefully
before using the meter. Protection is impaired if
used in a manner not specified in this manual
• Do not clear the meter using solvents.
• Keep the instrument clean, and do not get dust into
detecting hole.
• Do not point laser directly at eye or indirectly off
reflective surfaces.
• Laser :class 2 <1mW/630-670nm
•Laser radiation is classified according to
IEC 60825-1: 2014-05, Safety of laser products –
Part 1: Equipment classification and requirements.
CAUTION
LASER RADIATION - DO NOT STARE INTO BEAM.
AVOID EXPOSURE - LASER RADIATION IS EMTTED FROM THIS APERTURE .
MAX OUTPUT<1mW, WAVELENGTH 630~670nm, CLASS 2 LASER PRODUCT
WARNING
laser
Laser radiation -
when open do not
stare into beam.
01
Panel
6
7
2
5
8
3
4
9
1 Screen 6 Sensor
Mode key Laser
2
7
Backlight key Trigger
3 8
Laser key 9 Battery cover
4
5 °C/°F key
02
Display
1 2 4
3
13
5
12
6
11
10
9
8 7
1 Laser indicator 8 Min value
2 Scan status 9 Max value
3 Emissivity Average value
10
Low battery Primary display
4 11
5 °F unit 12 Surface scan
6 °C unit 13 Hold status
Secondary display
7
03
D:S ratio
Unit: mm
1500
900
300
S
30
90
150
D
D (distance):S (spot size) = 10:1
Make sure that the target is larger than the meter's
visual spot size. The smaller the target, the closer you
should be to it. The relationship between distance and
spot size is 10:1
04
