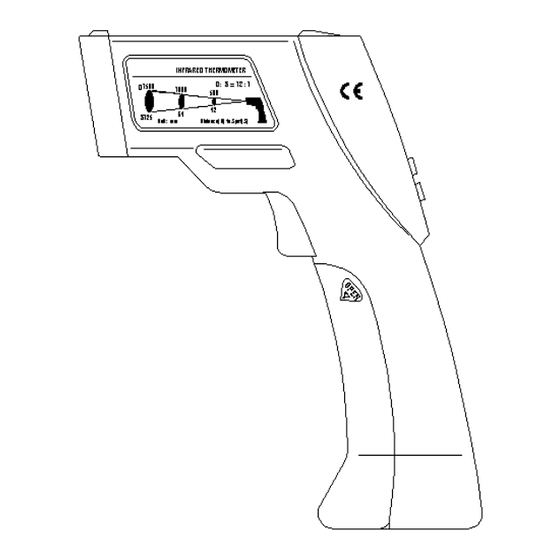

Mastech MS6530B Operation Manual

Mastech MS6530B Operation Manual

Noncontact

Advertisement

Noncontact Thermometer
Noncontact Thermometer
Noncontact Thermometer
Noncontact Thermometer
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS6530B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mastech MS6530B

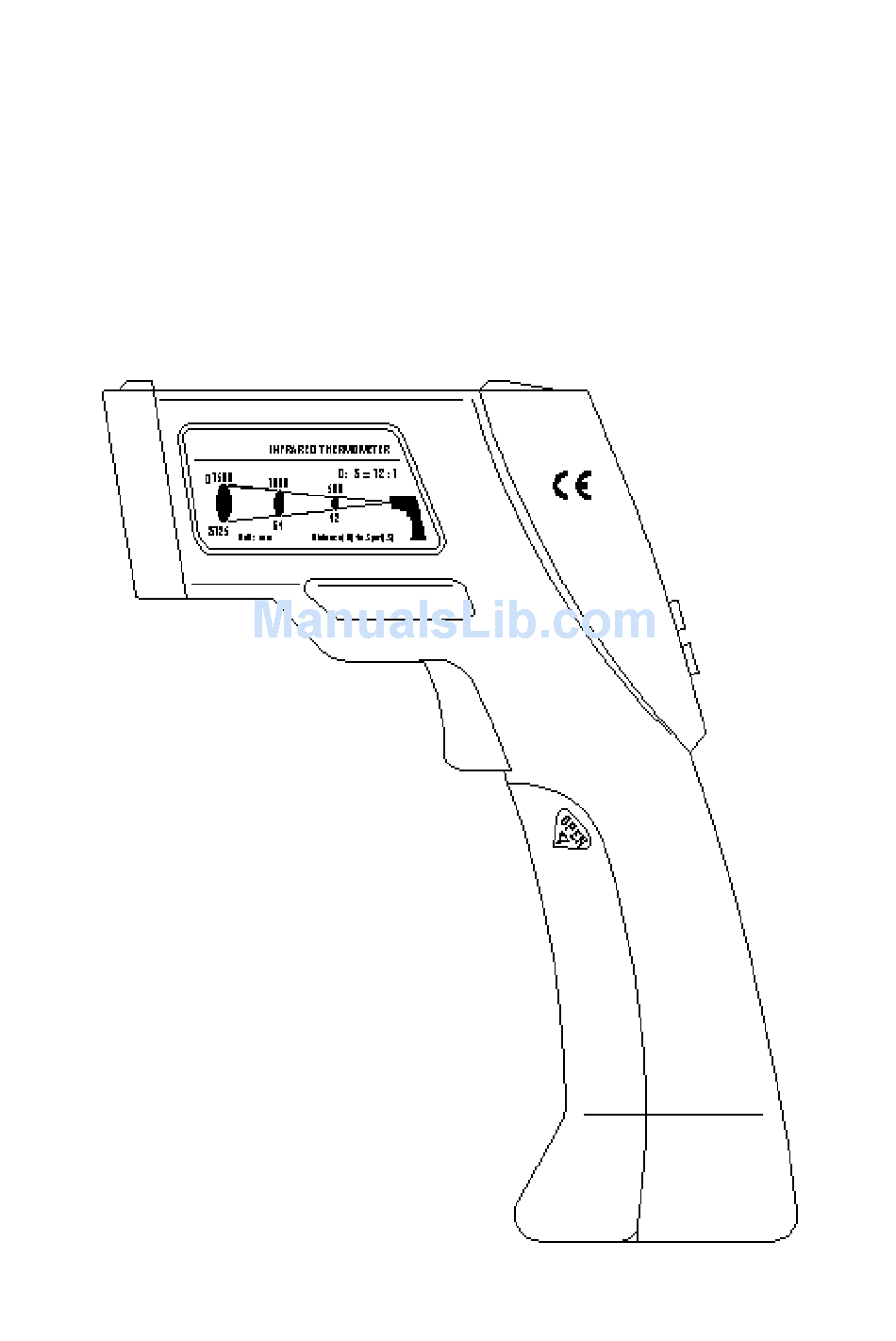

  • Page 1 Noncontact Thermometer Noncontact Thermometer Noncontact Thermometer Noncontact Thermometer Operation Manual...
  • Page 2: Table Of Contents

    Contents Ⅰ Ⅰ Ⅰ Ⅰ . Safety information…………………..1 Ⅱ Ⅱ Ⅱ Ⅱ . Cautions……………………………...1 Ⅲ Ⅲ Ⅲ Ⅲ . Explanation on parts………………..2 Ⅳ Ⅳ Ⅳ Ⅳ . LCD illustration……………………..2 Ⅴ Ⅴ Ⅴ Ⅴ . Measurement principle……………..3 Ⅵ Ⅵ Ⅵ Ⅵ . Measurement method……………….3 Ⅶ...
  • Page 3: Ⅰ Ⅰ Ⅰ Ⅰ . Safety Information

    Ⅰ. Safety information Please read the following information carefully before using the meter. Do not clear the meter using solvents. Safety symbols: Important information prompt for denger. Comply with European CE safety standards. This instrument is compatible with the following standards: EN61326-1 EN61010-1 EN60825-1...
  • Page 4: Ⅲ Ⅲ Ⅲ Ⅲ . Explanation On Parts

    Ⅲ Ⅲ Ⅲ Ⅲ . Explanation on parts 1. LCD 2. Laser button 3. Mode button 4. Backlight button 5. ℃/℉ button 6. Trigger 7. Battery cover 8. Tripod nut orifice 9. Collimator 10. Laser emission 11. Temperature detect hole Ⅳ...
  • Page 5: Ⅴ Ⅴ Ⅴ Ⅴ . Measurement Principle

    12. Laser emission indicator 13. Holding indicator 14. First temperature show 15. Average value indicator 16. Low power indicator 17. MAX/MIN indicator 18. Measurement indicator 19. Emissivity display 20. ℃ temperature unit 21. ℉ temperature unit 22. Second temperature show Ⅴ...
  • Page 6: Ⅶ Ⅶ Ⅶ Ⅶ . D:s Ratio

    laser button to light the laser to aim at object. 3. To measure in the night, by pressing backlight button to light the backlight. 4. By pressing “MODE” button to change the mode of the second temperature, it can show AVG(average) MAX(maximum), MIN(minimum), MAX-MIN.
  • Page 7: Ⅷ Ⅷ Ⅷ Ⅷ . Emissivity

    To prevent the infrared of other object from entering thermometer, you had better be closer to object than the distance calculated by ratio D:S=12:1. Ⅷ Ⅷ Ⅷ Ⅷ . Emissivity Emissivity is used to describe the energy emitting characteristic of materials. The greater the emissivity, the stronger the emission capacity of the object is.
  • Page 8: Ⅹ Ⅹ Ⅹ Ⅹ . Specifications

    Ⅹ Ⅹ Ⅹ Ⅹ . Specifications LCD display: double temperature 4 digitals LCD D:S: 12:1 Emissivity: 0.95 Spectral response: 8-14 um Measure range: -20℃~320℃ or -4℉~608℉ Accuracy: -20℃~50℃ ±2.5℃, 51℃~320℃ ±(reading*1.5%+1℃) Response time: 0.5 second Laser power: less than 1 mw Automatic turn off: hold for 10 seconds Backlight: kelly operation surrounding: 0~40℃,10~90%RH...
  • Page 9 HYS005762...
