LST AO-58000-600 Specification Sheet

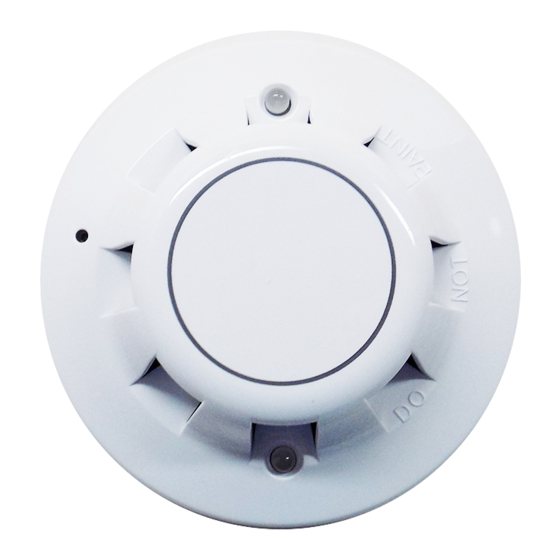

Optical Smoke Detector
AO-58000-600
• ADM loop technology with
Apollo/Discovery protocol
• Sensitivity selectable in 5 steps
• Optional connection of remote
indicator
• Constant response sensitivity
• Sealed electronics
Description
The addressable Optical Smoke Detector AO-58000-
600 uses the scattered light principle and was deve-
loped for the detection of smoke particles in a wide
range of fi re detection applications. The modern design
of the sensing chamber allows to reliably evaluate the
characteristics of fi re.
The response sensitivity of the detector can be adjus-
ted in 5 steps between 1.4%/m and 2.8%/m, via the fi re
detection control panel.
The proven ADM loop technology with Apollo/Discovery
protocol establishes a permanent communication bet-
ween the fi re detection control panel and the detector.
That ensures a periodical function testing of the detec-
tor. In the control panel all types of fi res are detected by
continuously comparing fi re patterns.
Specifi cations
Operating voltage
Current consumption
Ambient temperature
Relative humidity
Dimensions ø × H
Colour
Weight
Approval
Order number
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
The infl uence of contamination of the optical measure-
ment system is compensated for by using intelligent
evaluation algorithms. With that, the response sensiti-
vity of the detector is kept constant for a long time –
a further effective step to avoid false alarms.
The two LEDs with 360° visibility indicate the activated
condition of the detector. The detector address is se-
lected by means of a code card in the detector base.
Therefore the detector can be changed without additi-
onal tools.
The detector can be attached to various bases and it
can be protected against theft.
Supply through loop voltage
typ. 400µA (quiescent)
-20°C to +60°C (no condensation or icing)
0 – 95% (no condensation)
100 × 42 (mm)
white
105g
VdS G299037
241027
Optical Smoke Detector/Anal./Disc/Apo AO-58000-600
A
AO-58000-600_DBL_LST_EN_0804.PDF • PAGE 1
