LST ECO1003 Specification Sheet

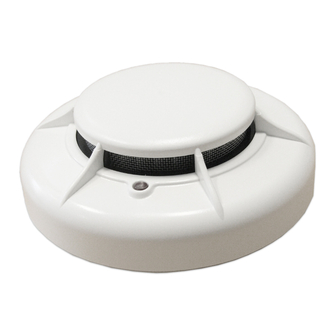

Optical Smoke Detector
ECO1003
• Addressable conventional technology
• Individual detector addressing by
means of optional address module
• Optional connection of remote
indicator
• Extremely fl at design
• Function testable with Remote Test
Unit ECO1000RTU
Description
The Optical Smoke Detector ECO1003 uses the scatte-
red light principle and was developed for the detection
of smoke particles in a wide range of fi re detection ap-
plications. The modern design of the sensing chamber
allows to reliably evaluate the characteristics of fi re.
Addressable conventional technology is used for alarm
transmission to the fi re detection control panel. By
Specifi cations
Operating voltage
Current consumption
Ambient temperature
Relative humidity
Dimensions ø × H
Colour
Weight
Approval
Order number
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
means of the Address Module NG58-1, each detector
can be addressed individually.
A test activation of the detector can be carried out
using the Remote Test Unit ECO1000RTU. The detec-
tor can be attached to various bases and it can be
protected against theft.
Supply through the detector line voltage
typ. 65µA (quiescent)
-30°C to +70°C
5 – 95% (no condensation)
102 × 32.5 (mm)
white
75g
VdS G201060
241045
Optical Smoke Detector/Conv./1000/SS ECO1003
A
ECO1003_DBL_LST_EN_0804.PDF • PAGE 1
