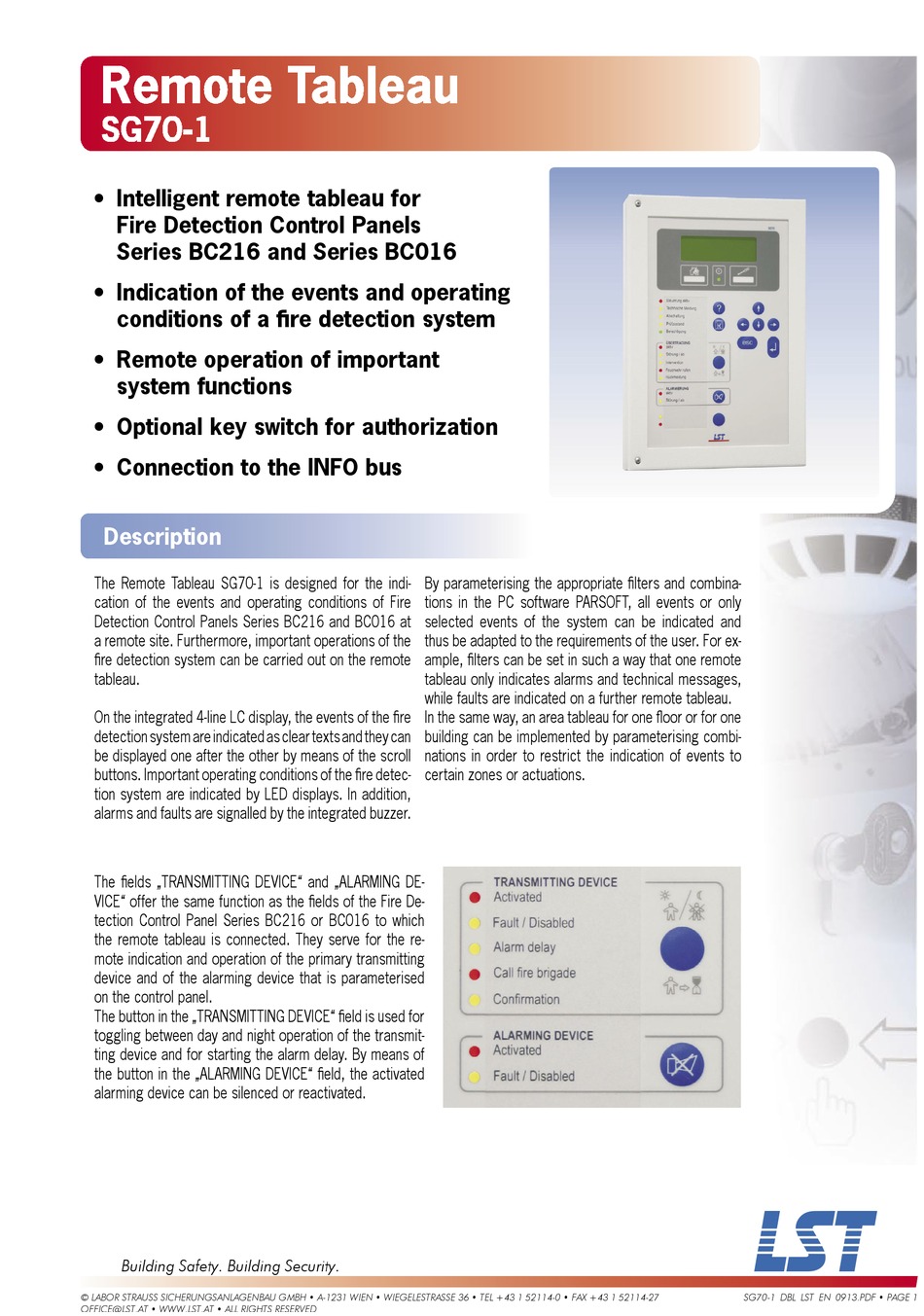

LST SG70-1 Specifications

Remote Tableau
SG70-1
• Intelligent remote tableau for
Fire Detection Control Panels
Series BC216 and Series BC016
• Indication of the events and operating
conditions of a fi re detection system
• Remote operation of important

system functions

• Optional key switch for authorization
• Connection to the INFO bus
Description

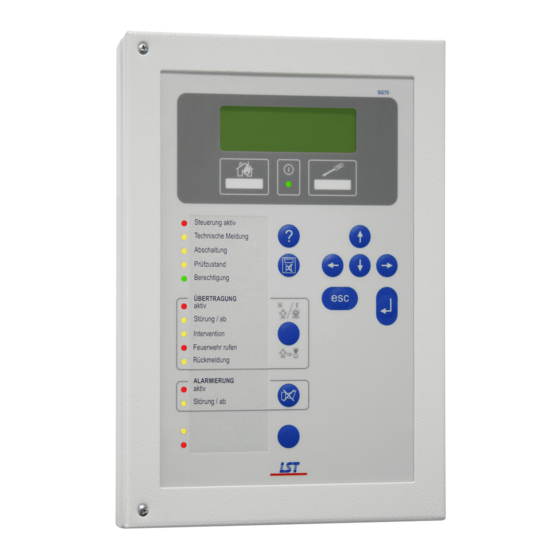

The Remote Tableau SG70-1 is designed for the indi-
cation of the events and operating conditions of Fire
Detection Control Panels Series BC216 and BC016 at
a remote site. Furthermore, important operations of the
fi re detection system can be carried out on the remote
tableau.
On the integrated 4-line LC display, the events of the fi re
detection system are indicated as clear texts and they can
be displayed one after the other by means of the scroll
buttons. Important operating conditions of the fi re detec-
tion system are indicated by LED displays. In addition,
alarms and faults are signalled by the integrated buzzer.
The fi elds „TRANSMITTING DEVICE" and „ALARMING DE-
VICE" offer the same function as the fi elds of the Fire De-
tection Control Panel Series BC216 or BC016 to which
the remote tableau is connected. They serve for the re-
mote indication and operation of the primary transmitting
device and of the alarming device that is parameterised
on the control panel.
The button in the „TRANSMITTING DEVICE" fi eld is used for
toggling between day and night operation of the transmit-
ting device and for starting the alarm delay. By means of
the button in the „ALARMING DEVICE" fi eld, the activated
alarming device can be silenced or reactivated.
