LST BEAMLRK Specifications

Beam Smoke Det. Accessories
BEAMLRK, BEAMMMK, BEAMSMK
• Suitable for Beam Smoke Detectors
Series 6500
• Three-part refl ector set increases the
detection range to 100m
• Multi-mount kit with
three-dimensional angle adaptation
• Surface-mount kit

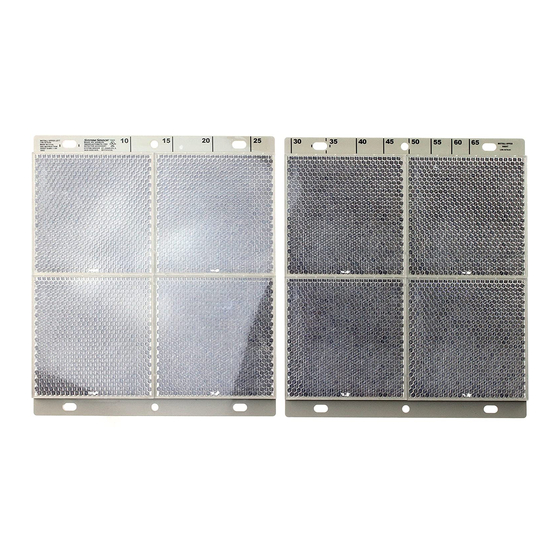

Refl ector BEAMLRK
The Refl ector BEAMLRK (fi g. A) increases the maxi-
mum range of the Beam Smoke Detector Series 6500
to 100m. The package contains 3 parts. These three
Specifi cations
Material
Dimensions W × H × D
Dimensions W × H
Order number
Order name
Multi-Mount Kit BEAMMMK
The Multi-Mount Kit BEAMMMK (fi g. B) is used for atta-
ching the Beam Smoke Detector Series 6500 or the
refl ector under diffi cult conditions, e.g., if the ceiling is
Specifi cations
Order number
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
fi g. A
parts and the refl ector included with the detector are
put together, thus resulting in one large refl ector.
Plastic
200 × 230 × 10 (mm), one piece
400 × 460 (mm), entire refl ector area
244024
Refl ector/6500/75-100M BEAMLRK
sloped. If the refl ector is installed by means of the multi-
mount kit, the range is limited to 70m.
244025
Multi-Mount Kit/6500 BEAMMMK
fi g. B
fi g. C
A
BEAM-ZBH_DBL_LST_EN_0804.PDF • PAGE 1
