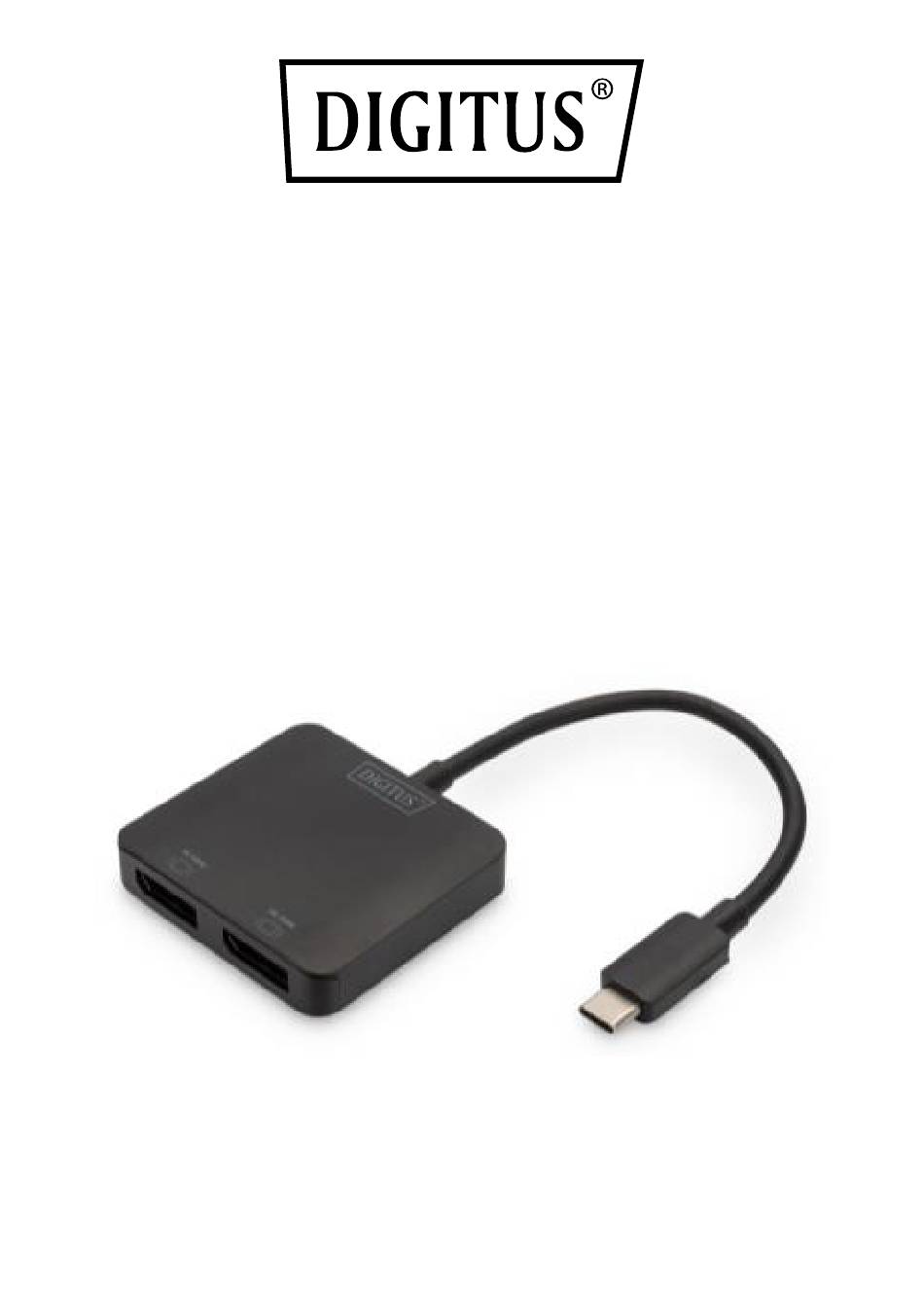

- Page 1 2-PORT MST VIDEO HUB (USB-C™ -> 2x DISPLAYPORT) Quick Installation Guide DS-45339...
- Page 2 1. Introduction The DIGITUS® MST Hub uses Multi Stream Transport (DisplayPort™ 1.2 function), which allows multiple AV signals to be transported over a single cable. This enables the use of multiple monitors that are connected via the MST Hub configuration. The MST Hub can distribute different video streams to the two connected screens.
- Page 3 Power supply via a USB-C™ connection – BUS powered No driver or software required – Configuration via the display settings in Windows OS Supports HDCP 2.2 / 1.4 as well as HDR (High Dynamic Range) Supports MST (Multi Stream Transport) & SST –...
- Page 4 7. Weight: 43 g 8. Color: Black Note: 1. To achieve the resolutions stated above, the host PC should support DP 1.4 (Alt mode). If your PC only supports DP 1.2, the corresponding resolutions are reduced due to the bandwidth restriction 2.
- Page 5 6. MST Hubs cannot increase the number of screens supported by a graphics card. Every graphics card has a limited number of screens that it can support. Please check your specifications in advance. 7. Requires at least a host system with DP 1.2/HBR2/MST or higher (recommended) 8.
- Page 6 5. Connection Diagram...
- Page 7 Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com ASSMANN Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
