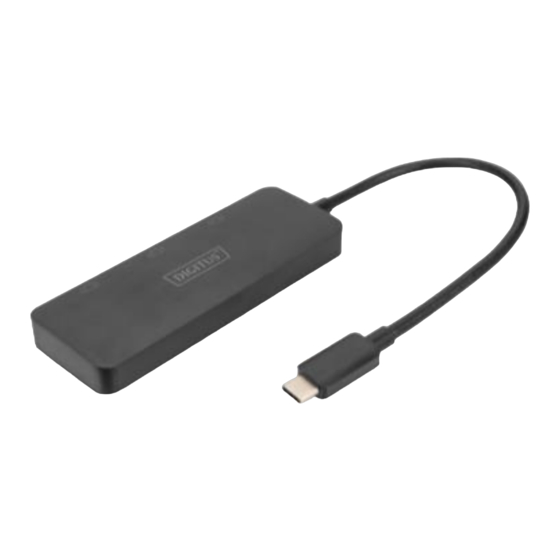

- Page 1 3-PORT MST VIDEO HUB (USB-C™ -> 3x DISPLAYPORT) Quick Installation Guide DS-45334...
- Page 2 1. Introduction The DIGITUS® MST Hub uses Multi Stream Transport (DisplayPort™ 1.2 function), which allows multiple AV signals to be transported over a single cable. This enables the use of multiple monitors that are connected via the MST Hub configuration. The MST Hub can distribute different video streams to the three connected screens.
- Page 3 Resolution 1 external monitor: 1x 8 K/30Hz Power supply via a USB-C™ connection – BUS powered No driver or software required – Configuration via the display settings in Windows OS Supports 3 display modes: Mirror (1 signal mirrored on 3 displays), extend (3 signals on 3 displays), distribute (1 signal distributed across 3 displays)
- Page 4 4. Specifications 1. 1x USB-C™ input 2. 3x DisplayPort output 3. Housing: ABS 4. Operating temperature: 0-45°C 5. Standby power consumption: approx. 1W 6. Dimensions: L 25.2 x W 3.6 x H 1.15 cm 7. Weight: 51 g 8. Color: Black Note: 1.
- Page 5 4. If you use a DisplayPort 1.1 graphics card, the MST Hub acts as a splitter and mirrors your video source on all displays 5. Functionality can be restricted depending on the specifications of your device and operating system 6. MST Hubs cannot increase the number of screens supported by a graphics card.
- Page 6 5. Connection Diagram...
- Page 7 Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com ASSMANN Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
