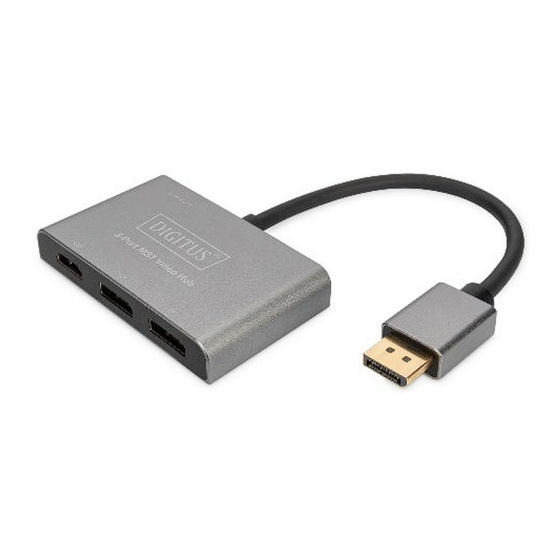

- Page 1 3-Port MST Video Hub (DP -> 2x DP, 1x HDMI) Quick Installation Guide DS-45336...
- Page 2 1. Introduction The DIGITUS® MST Hub uses Multi Stream Transport (DisplayPort ™ 1.2 function), which allows multiple AV signals to be transported over a single cable. This enables the use of multiple monitors that are connected via the MST Hub configuration.
-
Page 3: Package Contents
5. Supports up to 4K2K/60 Hz, HDR (Single, Dual Display max.) 6. Supports 4K2K/30 Hz, HDR (Triple Display) 7. No driver or software required - Configuration via the display settings in Windows OS 8. Aluminum housing 9. Power supply via USB-C™ connection (min. 10W, 5V/2A required) 10. -
Page 4: Product Specification
4. Product Specification 85.5 x 60 x 14 mm Product Size ( L x W x H) Weight 170g Shell& Cable Aluminum + PVC Input DisplayPort Male x1 DisplayPort Female x2 HDMI Female x1 Output USB C Female x1 (For PD Charging) DisplayPort Max 3840x2160 @ 60HZ HDMI... -
Page 5: Product Overview
5. Product Overview DisplayPort HDMI Female Female DisplayPort Male USB C Female Note: 1. The Video Splitter must be connected to the power supply or it will not work properly 2. Make sure your DisplayPort is DP v1.2 or later. This is most important criteria. If you're unsure, check with the video card or system manufacturer 3. - Page 6 4. MST hubs cannot increase the number displays a video card supports. Each video card has limited number of displays it can support, regardless of the number of display connectors built to your video card. From our experience at the current time. AMD and NVIDIA video card support up to 4 displays while Intel supports up to 3.
