Requires : 3 channel radio w/ 2 standard servos and
2 mini servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual
at hand for quick reference.

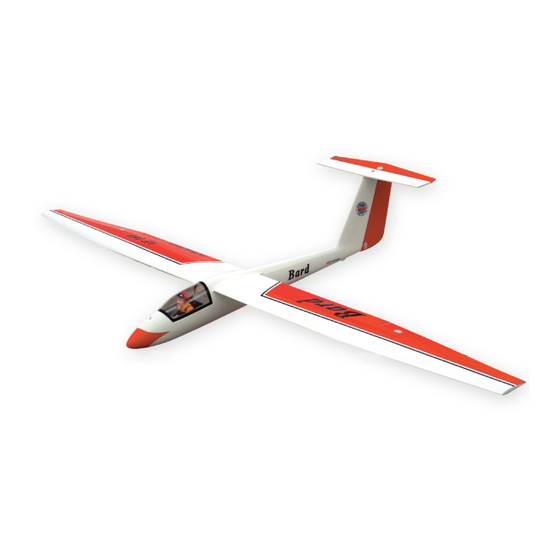

Bard
Specifications
* Specifications are subject to change without notice.*
INSTRUCTION MANUAL
80 in / 2030 mm
409 sq in / 26.4 sq dm
2.6 lbs / 1200 g
36.5 in / 925 mm
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
