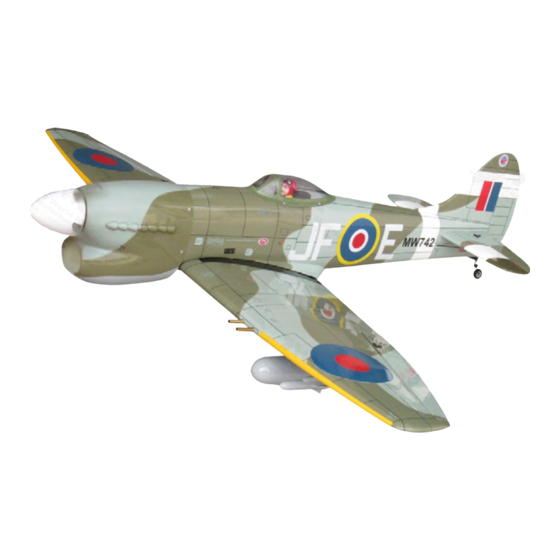

Hawker Tempest MK V
Hawker Tempest MK V
Requires : 0.46-0.55 cu. in. displacement 2-stroke
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
A317PO24531116
0.70-0.81 cu. in. displacement 4-stroke
6-channel radio w/ 6 standard servos
and 1 low profile retract servo.
Specifications
*Specifications are subject to change without notice.*
57 in / 1450 mm
586 sq in / 37.8 sq dm
6.8 Ib / 3100 g
47.5 in / 1210 mm
ALMOST-READY-TO-FLY(ARF)SERIES
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
MADE IN CHINA
