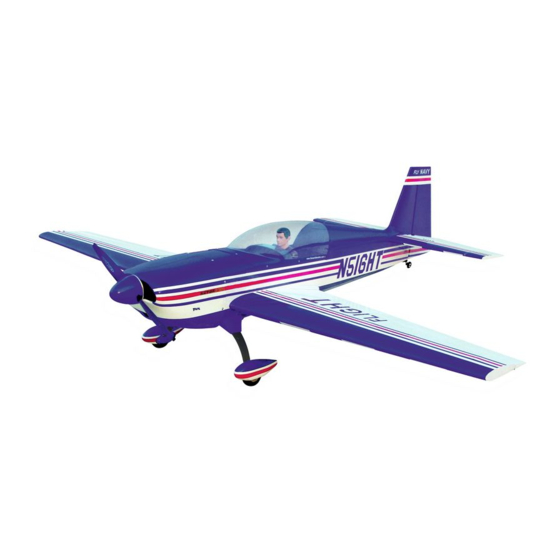

Twm extra 330l 60 model aircraft
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
0.6 -0.75 cu. in. displacement 2-stroke
0
0.91 cu. in. displacement 4-stroke
R
equire : 4 channel
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
A156SPO25891108
s
-
* Specifications are subject to change without notice.*
radio w/ standard
5
Specifications
65.0 in / 1650mm
797 sq in / 51.4 sq dm
8.2 lbs / 3720g
56.0 in / 1420mm
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
servos
FACTORY PRE-FABRICATED
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXTRA 330L 60 and is the answer not in the manual?

Questions and answers

Related Manuals for TWM EXTRA 330L 60

Summary of Contents for TWM EXTRA 330L 60

  • Page 1 INSTRUCTION MANUAL 0.6 -0.75 cu. in. displacement 2-stroke 0.91 cu. in. displacement 4-stroke equire : 4 channel radio w/ standard servos Specifications Wing Span 65.0 in / 1650mm Wing Area 797 sq in / 51.4 sq dm Flying Weight 8.2 lbs / 3720g Fuselage Length 56.0 in / 1420mm * Specifications are subject to change without notice.*...

  • Page 2: Before You Begin

    I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -11 SAFETY PRECAUTIONS P.11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts.
  • Page 3 Parts List 1. MAIN WING -- 1 pair 10. FUEL TANK 380cc PL1111380 -- 1 set DOUBLE-SIDED TAPE 40x100mm -- 1 pc. 2. SCREW PB2x25mm -- 6 pcs CABLE TIE 1.5x5x400mm -- 1 pc. SCREW PWA2x8mm -- 8 pcs 11. SOCKET HEAD SCREW M4x30mm -- 4 pcs FUEL TUBE Ø6x5mm -- 4 pcs WASHER d4xD9mm -- 8 pcs STRAPER PL4112102 -- 2 pcs...

  • Page 4: Aileron Servo

    Main Wing Apply instant type CA gule to both sides of each hinge. Aileron Servo Lead Bottom View Aileron Servo Screw PB2x25mm Ø1mm pilot holes for World Models tri-horn are pre-drilled. Screw PWA2x8mm Please look for pin-hole marks at under side of control surfaces. Fuel Tube PWA2x8mm Straper...

  • Page 5: Tail Landing Gear

    Stabilizer & Elevator Apply instant type CA glue to both sides of each hinge. (Stabilizer) (Main Wing) B B' Temporary install the main wing, adjust leveling of the stabilizer to make it as parallel to the main Completed wing as possible. Apply instant type CA glue to both sides of each hinge.

  • Page 6: Rudder Pullwire

    Rudder Pullwire Screw PM2x25mm Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look PM2x25mm M2 NUT for pin-hole marks at side of control surfaces. Bottom View Fuel Tube Ø 6x5mm Ring Clevis Rigging Coupler Ø1.8 x 27mm Copper Tube Bottom View Elevator Pushrod Ø1mm pilot holes for World Models tri-horn are pre-drilled.

  • Page 7: Main Landing Gear

    Main Landing Gear Wheel Ø76mm HM4x16mm Socket Head Screw HM4x16mm d5xD12mm Washer Set Screw Screw PM5x 43mm PM5x43mm Screw PWA2.3x8mm M5 Nut Screw 2.3 8 x mm Plastic Collar 5.1mm Plate 1mm Collar Collar 5.1mm Quick Release Nylon Rivet KA2.3x8mm Bottom View washer d5xD12mm...

  • Page 8: Fuel Tank

    Fuel Tank Double-sided Tape 40x100mm Cable Tie 1.5x5x400mm Fuel Tank 380cc Completed Engine M4x30mm Socket Head Screw 2x93.8x120mm Plywood Washer M4 Nut d4xD9mm d4xD9mm Washer IIIustration is for inverted mounting. You can mount M4x30mm the engine upright or sideways simply by rotation the engine mount.

  • Page 9: Radio Equipment

    Servo Set Set Screw 3 x 3mm Linkage Stopper Washer Washer 2m m Throttle Servo. Washer Please refer to the attached sheet for linkage connector installation. Radio Equipment Install and arrange the servo as shown in the diagram. Rudder Pullwire Throttle Pushrod Ø...
  • Page 10 Main Wing Self Tightening Wing Latch PWA2x12mm Wing Tube Canopy & Pilot First insert the grommet to the canopy then apply screw. Pilot Screw PM2.5x25mm Screw PWA2.3x8mm d1.5 x D6.5 mm Silicon Grommet Washer d2.5xD8mm Plastic Plate PWA2.3 x 8mm d1.5 x D6.5 mm Silicon Grommet d2.5xD8mm...
  • Page 11 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A = A ' B = B ' C =C ' A156SPO25891108 P. 1 0...

  • Page 12: Control Throws

    Adjust the control throws as shown in Control Throws the diagram. These throws are good for general flying. You can adjust according to your personal preference. Elevator 30mm 30mm Rudder 50mm 50mm Ailerons 20mm 20mm The ideal C.G. position is 120mm (4.8 in.) behind the leading edge C.G.
  • Page 13 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
  • Page 14 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
  • Page 15 A156SPO25891108...
