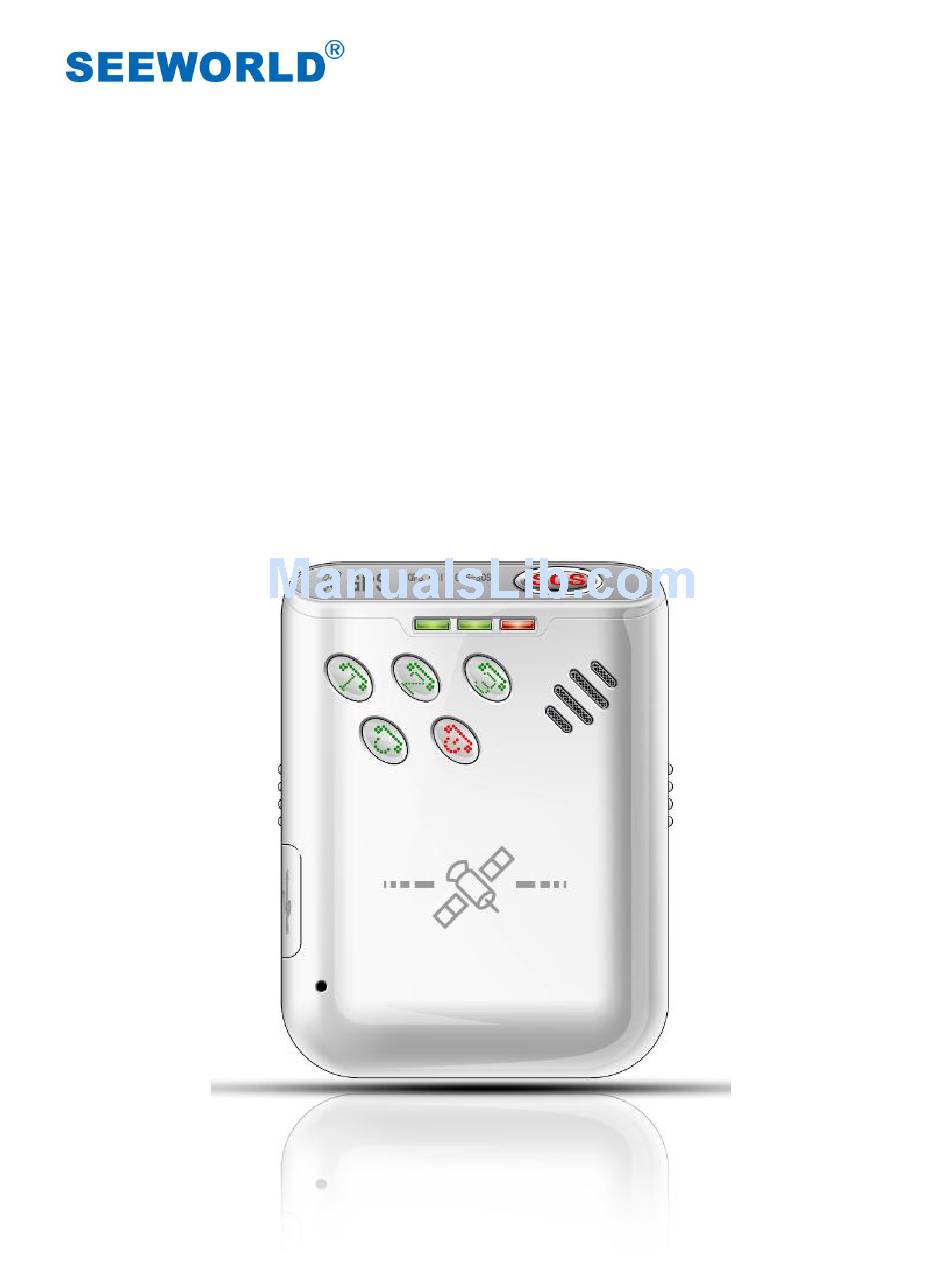

- Page 1 SEEWORLD S007 GPS Tracker USERS MANUAL V6.4 Updated on 2010/06/28...
-
Page 2: Product Overview
1 Product Overview This tracker shows you with your mobile phone or PC the location of your targets via SMS or GPRS TRACKER has the following features Tracking via SMS or GPRS Current location report Tracking by time interval ... - Page 3 Switch off in Aircraft –Follow any restrictions. Wireless devices can cause interference in aircraft. Switch off when refueling – Do not use Track when at a refueling point. Do not use near fuels or chemicals. Water Resistance –Track is not water resistant. Keep it dry. Use waterproof bag if necessary.
-
Page 4: Getting Started
Work time 60 hours in sleep mode and 10 hours in normal mode 3 LED indicators showing power, GPS, GSM status and other operation status. G-Sensor ± 2g Panel Description 4 Getting Started 4.1 Hardware and Accessories USB Power Cable ... - Page 5 the status of the unit. All LED is enabled when power on, and short click SOS key to change GSM & GPS LED enable / disable status. Red LED -- Indicating power status Power off / charging complete / working / GPS optional Flashing (on for 0.05s and off for 4.95 s) Low power Flashing (on for 1s and off for 4 s)
-
Page 6: First Use
an SMS to the preset phone number. 4.3 First Use Ensure that Tracker has a working SIM installed Check that the SIM has not run out of credit Check that the SIM Lock code is turned off Use some other mobile phone to confirm that the PIN code Can not been set ,and that it can dial out and receive telephone calls, and that it can connect to internet by GPRS. - Page 7 Step 1. When it is off, press the power button for 5 second to switch on the power. Step 2. After power on, GSM LED will light on first (on 1 second and off 4 seconds for searching GSM network, or on 0.05 second and off 4.95 seconds after get GSM network).
-
Page 8: Sms Command
When SOS button is long pressed, Track will send alarm to location center, and send a SMS message and make phone call for emergency help. The phone number can be set by the users. When 1 2 3 button is long pressed, Track will make normal phone call. The phone number can be set by users. - Page 9 5.1 Basic SMS Commands 5.1.1 Return the location of the tracker Description: To know the location of your Track, send an SMS to Track and it will report its location by SMS. Command: W<password>, <000> Notes: The default password is 000000. Example: SMS sent: W000000, 000 SMS received:...
- Page 10 tracker-holder. (c) Press END button to hang up the call or cancel a calling Example: SMS sent: W000000,003,3,1,123456789 SMS received: W01,003,Set phone number OK Meaning: When the SOS button is pressed, Track will send an SMS to telephone number “123456789” and also make a phone call to it. When a call is coming in, the blue light is on.
-
Page 11: Command List
You can start this function via SMS of your cell phone to set the authorized number for SOS button. (You can have more reference from setting SOS phone number in 5.1.2 ) 5.3.2 Setting You can send message “SF” with your cell phone to your reset phone numbers in Tracker to set it. - Page 12 ###### is new password Max 8 characters. Set preset phone number W******,003,F,P,T F=0, to turn off this function; for SOS button F=1, set sending SMS; F=2, set calling preset phone number; F=3, set SMS and calling (default) P=1, set a authorized number for SOS button P=2, set a authorized number for 1 button P=3, set a authorized number for 2 button...
- Page 13 Cancel vehicle To make it closure security pattern, setting SOS safeguard key effective Get Location of vehicle Get the location of vehicle via SMS, setting SOS key effective Get the latitude and DWJW Get the latitude, longitude and the site ID of longitude of vehicle vehicle, setting SOS key effective...
- Page 14 Appendix 2 Appendix 1 Mobile Operator APN preset by Track Format of SMS reply: W**,### # China Mobile Reply number # China Unicom Command number # Albania, vodafone AL # Argentina, Movistar # Argentina, Personal # Austria, A1 Reply number: # Austria, T-Mobile A # Austria, telering 00: Get location succeed...
- Page 15 # Denmark, TDC MOBIL # Italy, TIM IT # Denmark, TELIA DK # Italy, vodafone IT # Dominican, orange # Italy, WIND IT # Egypt, Vodafone EG # Jamaica, Digicel # Egypt, MobiNiL # Kazakhstan, Beeline KZ # Estonia, EE EMT # Kenya, Safaricom # Finland, DNA # Latvia, LMT LV...
- Page 16 # Israel, Orange # Portugal, TMN P # Uruguay, Movisar # Portugal, vodafone P # Venezuela, Digitel # Qatar, Qat-Qtel # Congo Dem. Rep, Vodacom CD # Romania, RO ORANGE # Romania, RO Vodafone # Russia, Beeline RUS # Russia, MegaFon RUS # Russia, MOTIV RUS # Russia, MTS RUS # Russia, NTC RUS...
- Page 17 # Ukraine, Beeline # Ukraine, Kyivstar # United States, AT&T # United States, T-Mobile Contact: Tenson Email: sales06@seeworld.hk Skype :seeworldkelen Phone number :+86 132 4977 2858...
