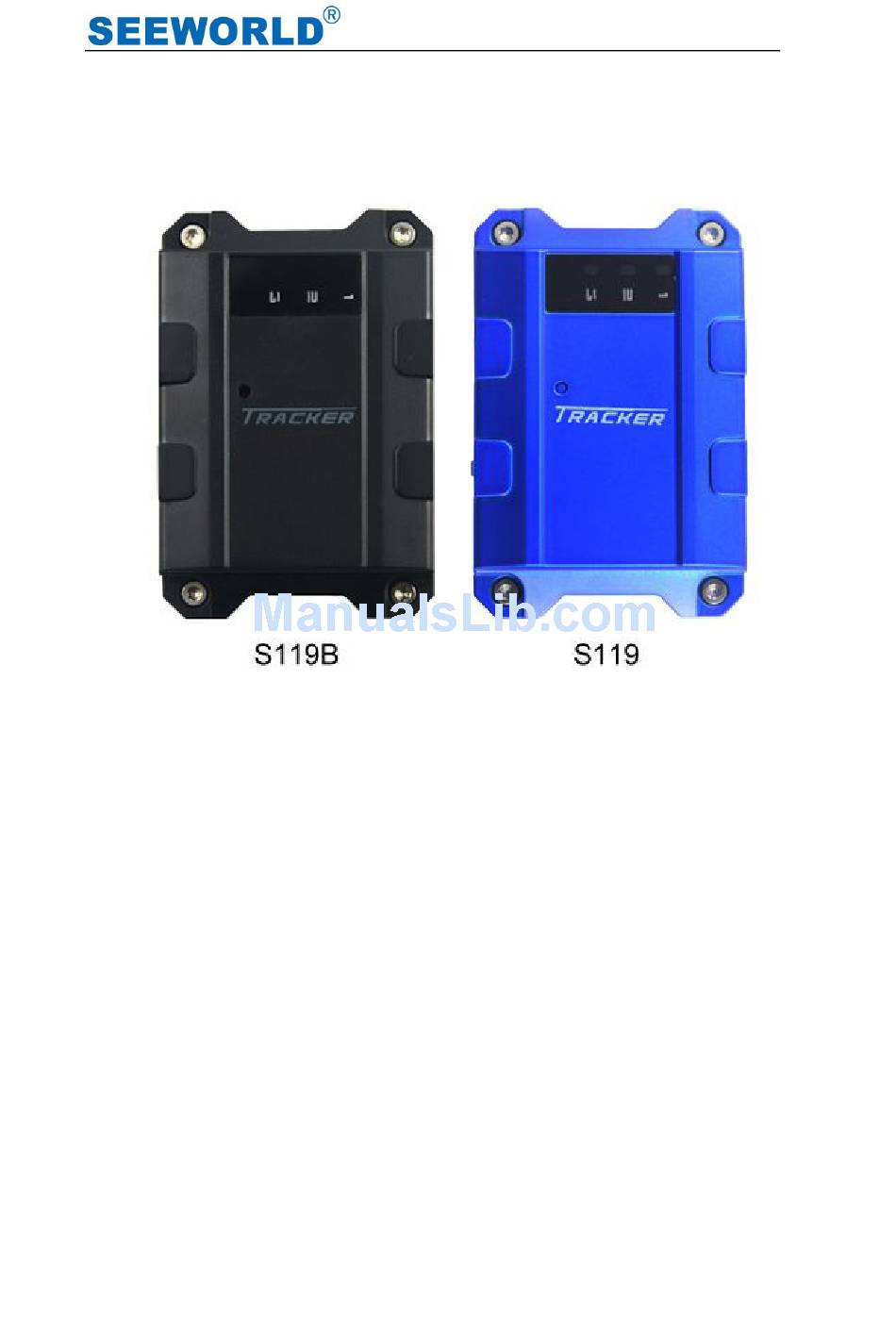

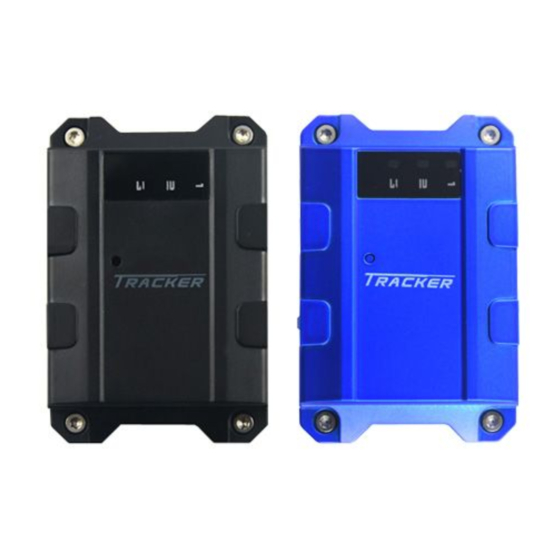

    SEEWORLD S119/B GPS Tracker USER MANUAL 1. Product Features..........................2 2. Product Specification...........................2 3. Operation Guide..........................3 3.1 Package ............................3 3.2 Start to Use ..........................3 3.3 Installation Guide ........................4 3.4 Status Indication ........................4 3.5 Message Instruction .........................5 3.6 Query Instruction...

  • Page 2: Product Features

    1. Product Features S119 is a GPS+GSM data terminal, with easy installation and easy to use. product main features : Function Descriptions S119B S119 GSM Quad band supported Newest generation u-blox GPS chipset u-blox 7 Wide range power input 8-45V DC...

  • Page 3: Product Specification

    Managing GPS devices using apps for android phone or iphone Query device information using SMS Real time tracking support History trace playback Self-define GEO fence Voice monitoring 2. Product Specification GSM Band: Quad Band GSM/GPRS supported GPRS: Class12/TCP/IP Working Voltage: 8-45vDC Working Current: 20mA@12vDC (ACC ON)

  • Page 4: Operation Guide

    Hot Start<1s Aided Start 10s (S119 only, S119B none) Battery 1000mAh Working Temperature: -20℃~+60℃ Humility: 20%~60%RH Size: 72mm x 47mm x 22mm Weight: LED Indicators RED-GSM, YELLOWGREEN-GPRS, BLUE-GPS 3. Operation Guide 3.1 Package Packing List: S119 Device 1PCS Power supply cable...

  • Page 5: Installation Guide

    SIM card must be in service. If SIM card require PIN code, please use other GSM mobile handset to remove the pin code. For oversea user, please check if the APN settings require or not. If you are an oversea user, please set the language(EN) by sending SMS to the device with: LANG,0# 3.3 Installation Guide Connection Diagram...

  • Page 6: Status Indication

    Power supply 8-45V DC BLACK Ground GREEN ACC detection, when key-in and turn to ACC position, ACC goes level high. YELLOW Relay control driving signal Please use 12V RELAY in 12V system, use 24V RELAY in 24V system like bus and truck. 3.4 Status Indication LED Color Status...

  • Page 7: Message Instruction

    3.5 Message Instruction 1) APN Settings Instruction Format example APN Setting 1 APN, APN,ac.vodafone.es,vodafone,vodaf ,user,psw# one# APN-Name APN Setting 2 APN, APN-Name# APN,cmnet# Note: APN settings are difference in difference country, if password require please follow setting 1, otherwise setting 2. Examples: Send “APN,cmnet#”...
  • Page 8 shut down GPS when finish the data upload. Examples: Send “TIMER,20#” Return “TIMER set ok. Now data upload period is 20 seconds. ” 3) CENTER Number Setting Instruction Format example Add Center Number CENTER,A,13811111 CENTER,A,13811111111# 111# Delete Center Number CENTER,D # CENTER,D# Note: 1) Only center number can send RELAY control message.
  • Page 9 supplement. 2) Only work when the center number being set. For safety reason, when device get this message, it will stop the fuel supplement when speed < 20Km. Examples: Send: “RELAY,1#” Return “RELAY ON!” 5) WL (User Define Fence) Setting Instruction Format example...
  • Page 10 Return“ ” Factory Reset OK 7) Device RESET Instruction Format example RESET RESET # RESET # Note: Device will reboot. Example: Send “RESET#” Return none, system reboot when receive this SMS. 8) Language Setting Instruction Format example Chinese LANG,1# LANG,1# English LANG,0# LANG,0#...
  • Page 11 9) GMT Time Zone Instruction Format example Time Zone Setting GMT,E/W,0~12,0/15/ GMT,E,8,0# 30/45 Note: Device use UTC+8 as default time zone. E: Ease；W: West 0~12, UTC difference. 0/15/30/45, Half time zone. Examples: Send “GMT,E,8,0#” Return “Now Time Zone is UTC+8.” 10) SOS Settings Instruction Format...

  • Page 12: Query Instruction

    OK!1=13811111111,2=13811111111,3=13811111111” Sent “SOS,D,2,3#” Return “Delete SOS TEL2 And TEL3 OK!” 11) HB Call Back Instruction Format example Voice monitoring Note: When SOS number being set, send “HB” will get a call back, you can answer to start voice monitoring. Examples: 3.6 Query Instruction 1) Query Parameters Instruction...
  • Page 13 Return: IMEI:68XXXXXXXXXXXXX; APN:cmnet; IP:gm901.szdatasource.com:8841; TIMER:10S; CENTER TEL:0; LANGUAGE:CN; TIME ZONE:8.00; ATWL:300 2) Query Device Working Status Instruction Format example STATUS STATUS# STATUS# Note: Use this message to check the device working status, like GSM, GPRS, GPS status. Examples: Send “STATUS#” Return: BATTERY:100%, GPRS:NORMAL, (Connect to server successfully)
  • Page 14 GPS Signal:MIDDLE, (GPS signal level) ACC:OPEN, RELAY:DISABLED, CHARGER:NORMAL 3) URL Instruction Format example URL# URL# Note: Use this SMS to query the position on Google map. Example: <UTCTime:10-11-18 18:41:04>http://maps.google.com/maps?q=N22.540885,E 113.951341 4) 123 Instruction Format example Query address in Chinese Note: Use this SMS to query address in Chinese, if language is English, it will return URL, the same as URL message.

  • Page 15: Use The Web Service

    3) Is the SIM with GPRS service? You can use a cell phone to browser a web site to check. 4) Please make sure you test the GPS in open sky. 5) Call for technical support, if the problem can not fix. SEEWORLD Technology Corp. Ltd. Contact:Helen Li Mob:+86 13533117384 Skype:seeworldsales...
