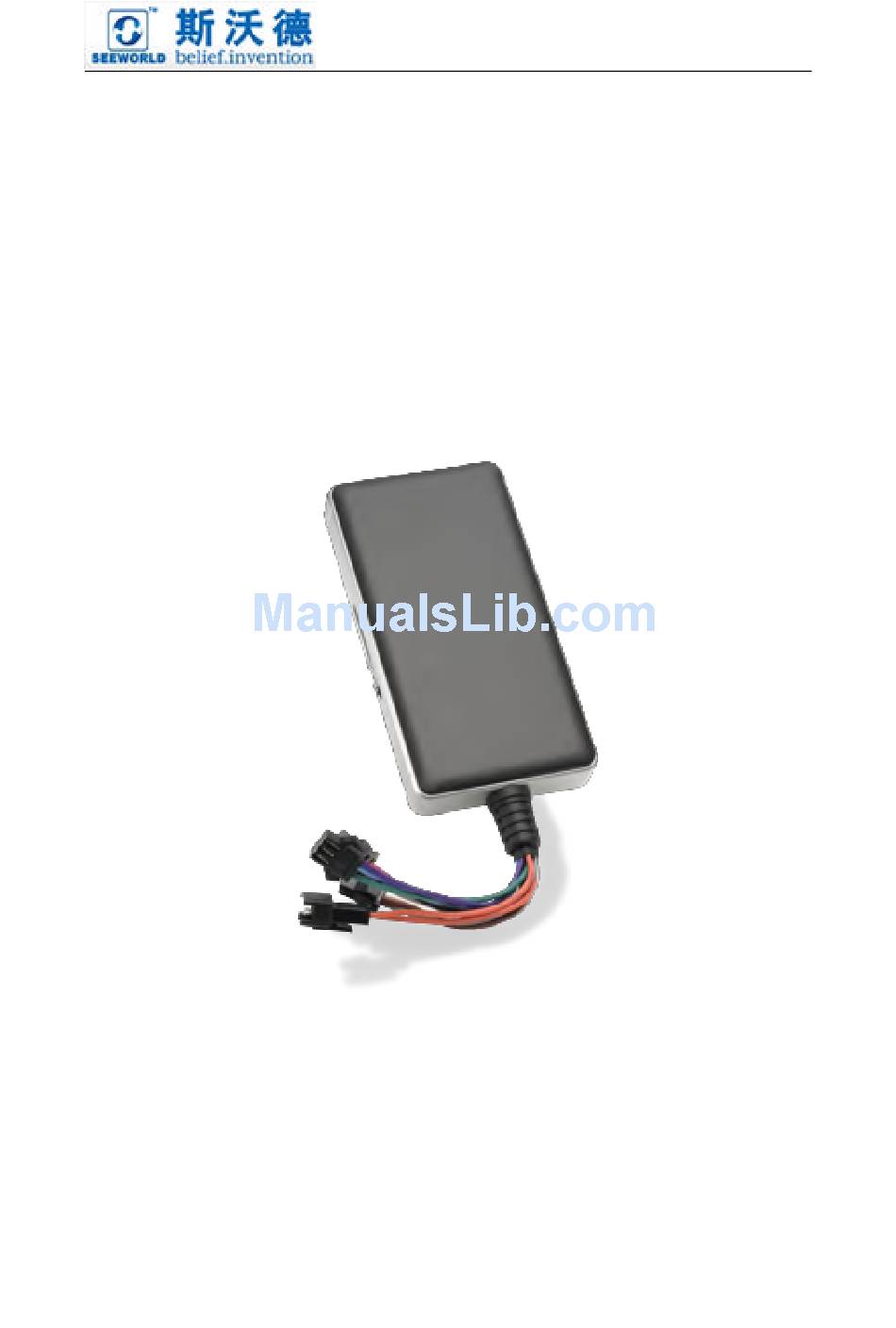

Page 1: User Manual
GPS Vehicle tracker (GPS+GSM+SMS/GPRS) User Manual (Version 3.1N) Please read this manual carefully before attempting installation and online activation. Pictures are for indication and illustration purposes only. - Page 2 Please check the accessories before using. Pictures are for indication and illustration purposes only. 2. Features: ● GSM 850/900/1800/1900 Quad band ● Wide for voltage input range: 9-36vDC ● GPS continuous positioning, GPRS timing interval ● Check location via SMS ●...
-
Page 3: Red Led (Power/Working Status)
battery) ● Compatible with external connection through (serial port) ●Geo-fence via sms command 2.1 Red LED (power/working status) LED Status Meaning Flashing (interval 0.1s) Low battery indication Continuously in bright state Charging Slow flashing(interval 0.2s) Full charge Continuously in dark state Low battery / power off Slow flashing(flash 0.1s after every 2s) Working normally... - Page 4 4. Method of installation 4.1. Preparation before installation 4.1.1 Open the packing box to check whether the type of device is correct and whether the accessories are included, or else please contact your distributor. 4.1.2 Choose SIM card: each device needs to insert a GSM SIM card. Please refer to the distributor’s suggestions to choose the SIM card.
-
Page 5: Installation
Please use GSM network SIM card； Power off before installing or removing the SIM card. The SIM card used should be enabled for GPRS. The SIM card used should be enabled for called ID. If there is a power on password, or pin, please cancel it; Ensure the SIM card can send and receive SMS. -
Page 6: Device Outlet Specification
-in the decorated board below back windshield; Notice: if the windshield is pasted with metal thermal-protective coating or heating coating, It may affect the receiving signal. In this case, please change the installation place. 4.3 Device outlet specification Line No. Specification Color Instruction... -
Page 7: Device Wiring Diagram
positive power (+12V). The fine yellow line is connected to the device relay control line. Cut off the positive connection line of the pump; then connect in series to the relay N.C. contact (thick green line 87a) and the other end to relay COM contact (thick green line 30). -
Page 8: Parameter Setting
pin) 5.1.1 The standard voltage is 9V-36VDC. Please use the power line which provided by the manufacturer. The red line is the positive. The black line is the negative. The negative should earth alone or link iron during installing. Do not connect it to other ground wire. -
Page 9: Delete Specific Number
The device will reply “OK” if setting successfully. Note: The APN of some countries have user name and password, you may need to send SMS command as following: APN,APN name,user name,password# E.g: APN,internet,CLIENTE,AMENA# 6.2 DNS setting To connect other platform, please send the two SMS commands bleow: Command format：... - Page 10 SMS command to the device to delete the number. SOS,D,serial NO.1,serial NO.2,serial NO.3# “D” means to delete the number, for example: SOS,D,1# means to delete the first number SOS,D,3# means to delete the third number If you want to delete more than one numbers, you can send this command: SOS,D,1,3# means to delete the first and third numbers.
-
Page 11: Check Parameter Setting
NOTE ： Only the SOS number can be used to delete center number successfully. Only SOS phone number can send this command successfully to set the center number. There is only one center number can be set. 6.8 Check parameter setting Send command to the terminal, you can check the parameter setting. -
Page 12: Reboot Device
6.11 Sensor alarm time setting When the vehicle power is off and ACC is in low-level, if ACC is off over 10 minutes, the device will enter sensor alarm state. In this case, if the vehicle vibrates for a few times, it will activate the vibration alarm system. If the vehicle battery is still not on (ACC is in low level) after 3 minutes, the device will start vibration alarm. -
Page 13: Check Location
7.2 Check location 7.2.1 Via SMS 7.2.1.1 SMS “WHERE #”, to the SIM number of device. The device will send a location message automatically. You can get the coordinates. If the device does not search any information of location, it will send “No data” to the cell phone. -
Page 14: Low Battery Alarm
7.5 Low battery alarm When the device is only working with battery, once the internal voltage of battery is less than 3.7V, device will send low battery alarm sms to specific number and alarm on platform. Low battery alarm sms content example: “Attention!!!battery too low, please charge.”... - Page 15 identification. 7.8 Oil cut-off 7.8.1. Via platform Send oil cut-off command on platform. To make sure the security of vehicle, tracker can only indicate to cut off oil when GPS is in valid position status, and the speed is less than 20KM/H or in static. It needs password and platform account password is needed when sending oil cut off command.
-
Page 16: Web Based Tracking Online Activation
device will send over speed alarm to user. 8．Web based tracking online activation The GPRS web based tracking platform allows real time tracking with the latest Google maps. There is also a playback feature that allows you to view where the vehicle has been for up to 30 days in the past making it ideal for fleet management. - Page 17 2) Please make sure there is no electromagnetic wave- absorbent object (metal) above the device, especially the thermal-protective coating on the windshield, it may affect the GPS reception of the device; 9.4 If GPS can not receive the signals normally (there is high building around to interfere with GPS reception), please drive to the open areas for positioning.
-
Page 18: Maintenance Records
Sales unit address Sales unit phone number 1. Main engine is guaranteed for one year for non-human damage since the date of purchase. 2. The situations listed below are not in the scope of warranty, the user has to pay maintenance cost: （1）exceed the warranty period;... - Page 19 IMEI number Serviceman Record two Maintenance unit Date Fault description Maintenance status IMEI number IMEI number SEEWORLD Technology Co., Ltd Tel: +86 20 36604699 Fax:+86 20 36636771 Email: sales06@seeworld.hk Skype:seeworldkelen Address:The 21Floor,No.565 Tianhe Road North, Tianhe District,Guangzhou,China.510070 Web: www.seeworld.net.cn...
