GPS Tracker Model-S6

User Manual

（Version 1.0）

Advertisement

loading
Need help?

Need help?

Do you have a question about the S6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seeworld S6

Summary of Contents for Seeworld S6

  • Page 1: User Manual

    GPS Tracker Model-S6 User Manual （Version 1.0）...
  • Page 2 Please read this manual carefully before using the tracker. No notice if appearance or color is changed.

  • Page 3: Specifications

    I. Components Tracker Charger Battery User Manual II. Specifications 1. GPS Features Chipsets: u-blox (AGPS is available) Sensitivity: < -161dBm TTFF: Cold Start 45s, Hot Start 2s...

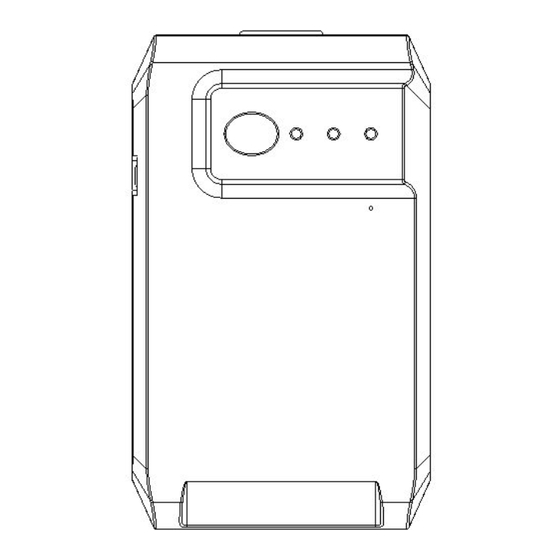

  • Page 4 Fix Accuracy: 10m Speed Accuracy: 0.3m/s 2. GSM Features Band: GSM 850/900/1800/1900M Maximum Transmission Power: 1W 3. GSM Features Dimensions: 100mm*60mm*30mm Battery Capacity: 4800mAH Operating Temperature: -20 ℃ ~ +70 ℃ Humidity: 20% ~ 95% III. Outlook and Interfaces...
  • Page 5 SOS: When power on, press and hold the key for approximately 3 seconds, the tracker will send a “SOS Alarm” to the owner. III. LED Indication 【 Description 】 Slow Blink: on for 1 second and off for 1 second Quick Blink: on for 0.3 second and off for 0.3 second 1.
  • Page 6 can’t fix GPS module is working but Quick Blink can’t find satellite GPS module is shutdown Turn Off or fail to work 【Notice】 1) When the tracker is powered on for the first time, the LEDs will flash. 2) The LEDs will turn off if there isn’t any button pressing for 5 minutes.
  • Page 7 card. It is absolutely forbidden to insert or take out the SIM card when the power supply of the tracker is not shut off. Otherwise, your SIM card and tracker will be damaged. 2. Start the Tracker The tracker is of a boot-free design. After the battery is installed, the tracker will start automatically.

  • Page 8: Installation

    good ventilation and a temperature range of 0℃-40℃. Must use the charger supplied by the manufacturer. Using unauthorized chargers will cause danger. 4. Installation This tracker is a portable onboard locating device and needn’t be wired for installation. Four powerful magnets are built in the back cover of the tracker to allow the tracker to be securely absorbed on the surface of any iron metals in a vehicle.
  • Page 9 underframe of vehicle, please do not arrange the tracker there until it finishes GPS locating. 5) When placing the device under the windshield, avoid direct sunlight irradiation. In summer, the high heat from direct sunlight irradiation will cause the casing to deform. 6) Do not remove the external blue package of the battery.
  • Page 10 and the tracker will reply a short message, in which the current location of the vehicle will be described, for example, near XX Building, XX Road, XX City, XX Province. 4) Arm Use the mobile phone of the vehicle owner to send a short message “LOCK”...
  • Page 11 name=parameter value Parameter names can be classified into below types: (the underlined ones stand for a default value) Default password is 123456 Activate vibrated short message alarm: SET, password, VIB=1 ② Deactivate vibrated short message alarm: SET,password,VIB=0 ③ Activate vibrated call alarm: SET,password,VIBCALL=1 ④...
  • Page 12 2. Information Reported by the Tracker 1) Battery low voltage alarm As literally means, when the built-in battery’s voltage is lower than a certain value, the tracker will report this to the bound phone by SMS. 2) Illegal vehicle moved (electronic fence) alarm It means the vehicle was moved more than a certain distance (e.g.

  • Page 13: Troubleshooting

    Account name: tracker serial number (indicated on the main frame of the tracker) Password: the password set by the user when the tracker is enabled. 2) Location Query and Other Operations Following your successful login, click the relevant buttons and you can perform location query, trace replay, parameter setting and other operations.
  • Page 14 network busy occasionally, SMS may be blocked, please wait or try it later. c) SIM card is not installed Correctly Resolving: If SIM card indication LED is flashing, please turn off the tracker and reinstall the SIM card. Please don’t do this while the tracker is power on, otherwise, it may damage the tracker.
