Summary of Contents for Seeworld S117

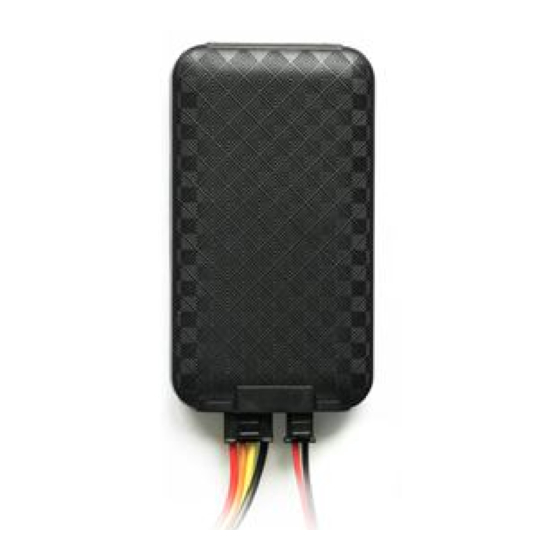

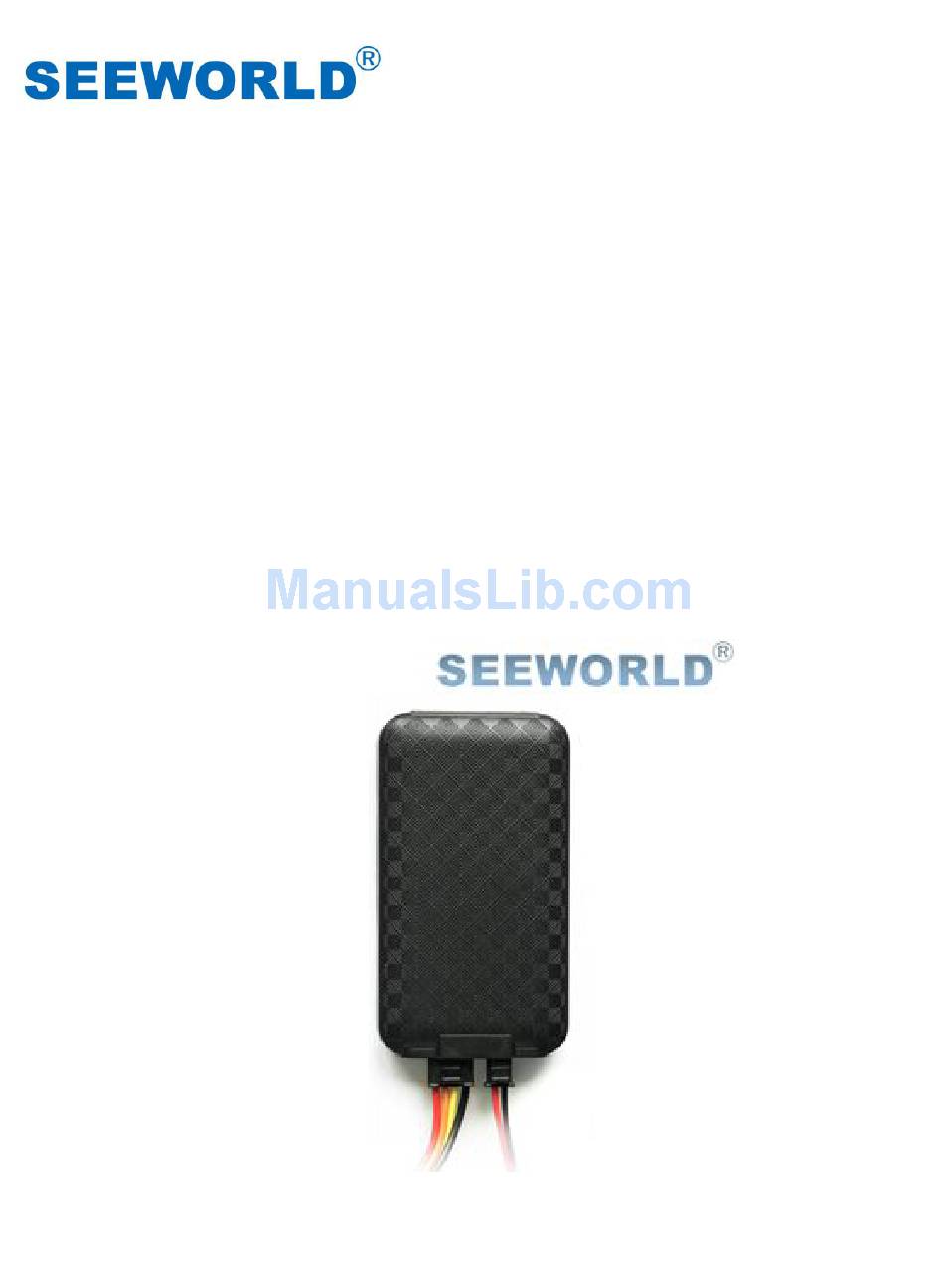

- Page 1 GPS Vehicle tracker (GPS+GSM+SMS/GPRS) SEEWORLD S117 User Manual...
- Page 2 Please read this manual carefully before attempting installation and online activation. Pictures are for indication and illustration purposes only. 1.Accessories ：...
-
Page 3: Technical Parameter
2. Technical parameter Detail Specifications Size 85MM*63MM*25MM(3.3"*2.5"*0.98") Weight 110g Network GSM/GPRS/GPS 850/900/1800/1900Mhz Chip MT6252 GPS Chip MT3326 GPS Sensitivity -159dBm GPS Precision GPS locating time Cold start Warm start 35S Hot start Working Voltage 10V---36V Built-in Battery 3.7V 180mAH Stand-by Time 2 hours (The specific time long myopia GSM network conditions) -
Page 4: Device Status Indicators
Working temperature -20C to +55C Wet degree 5%--95% non-condensing 3.Out Look 4. Device status indicators Red LED（GSM Signal state） 4.1 When GSM signalis normal, the red LED lamp shining; continuously or not bright says thereis no GSM signal. When GPRS works, the red LED lights flashes. -
Page 5: Installation
5. Installation 5.1 Preparation for the installation 5.1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer. 5.1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference. - Page 6 Note： 1) Please install the device in the hidden place as followings： Under Front windshield ； In the front instrument panel； Under back windshield； 2) Avoid being placed with signal radiators like reverse sensor ； 3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
- Page 7 Installation steps: (the following operation are terminal no electric power, otherwise will appear dangerous) Terminal fault oil line: yellow line Terminal power line: white line joint joint relay 86 feet, 85 feet after 12 relay 86 feet, 85 feet after 12 v dc v DC battery anode, 87 a feet and battery anode, 87 a foot and 30...
- Page 8 Emergency trigger alarm circuit: Terminal power supply circuit: red line contact send alarm button red line connect the 12 v dc positive, black line contact car battery anode, black line connect battery negative 。 car battery negative 6.5 equipment start 6.5.1 Join equipment in to the car, then insert SIM card to the equipment, until the red indicator light is lit up.
- Page 9 or didn't read card; green light flash to indicate the GPS no positioning; if the light continuously says working properly, five minutes after the light will put out; if want to see the light condition, you should call the number of equipment, the light will open again. 6.5.4.
-
Page 10: Troubleshooting
10. Monitor or position reply When open monitoring function, the administrator or authorization number dialed telephone terminal, after 5 seconds in the monitoring state, when didn't open monitoring function, the administrator or authorization number dialed telephone terminal, after 5 seconds, in positioning state recovery position links, when not positioning reply a short information says "GPS not localization"... -
Page 11: User Settings
12.4 The red LED is not glow when power on. Check the fuse of the power line. If the fuse is fused, please change the fuse with the seller. And check out terminal internal fault rear can again power on work. User Settings 13.1 S117 Set class instruction... - Page 12 1)CENTER Text Parameter Sample command CENTER Add CENTER,A,number# CENTER,A,13500135000# CENTER Del CENTER,D# CENTER,D# 1)Center number can control the oil and power and resume factory settings 2) Center number can receive the call and text of vibration alarm and over speeding alarm. Command 3) SIM must display the income call number to control oil Description...
- Page 13 1)RELAY control the start and closeness of the relay 2) Only the center number can operate. 3 ） the device only cut off the oil circuit on the condition of the driving speed below 20KM/H or in static state. Command 4)When send the command, the device will reply “please Description waiting “When the vehicle speed is over 20KM/H, the...
- Page 14 NO.2, Said to delete the first and third SOS SerialNO.3, number SerialNO.4, SOS, D, 13800138000 # SerialNO.5# Delete the SOS said the number; 1) SOS number used for long by SOS alarm button receiving equipment send text messages and telephone; 2) can set up five number as the center number Instruction 3) increase SOS please refer to increase SOS examples...
- Page 15 Parameter setting Time scope：0，10~60 seconds； 0,no data uploading； Command 10~60,means time interval ； the default value is 10 Description seconds！ Command Successful Setting：SET TIMER OK！ Feedback 6)STATIC Text Parameter Sample command STATIC, time STATIC STATIC,10# interval# ： ； Time scope 1~60 seconds device...
- Page 16 8)GMT Text Parameter Sample command GMT,location, GMT,E,8# time zone[,half GMT,E,5,30# time zone]# Command The default time zone is Beijing time. If time zone need Description revised, please operate according to the above command. Command Successful Setting ： SET GMT OK ！ Feedback 9)VIBRATION Text...
- Page 17 Parameter [alarming way]# 2)SPEEDING,120# The speed scope is form 60-220, if the speed is nothiscope, the alarm is off. Command Alarming ：1, calling 2, texting, 3 calling and texting. Description Must set the center number and receiving number. Command Successful Setting ： SET SPEEDING OK! Feedback 11)LANG Text...
- Page 18 Only center number can initial this function Description Factory setting will recover to the original setting Command Successful Setting：FACTORY OK！ Feedback SEEWORLD Technology Co., Ltd Tel: +86 20 36604699 Fax:+86 20 36636771 Email: sales01@seeworld.hk Skype:seeworldgps Address:The 21Floor,No.565 Tianhe Road North,Tianhe District,Guangzhou,China.510070...
