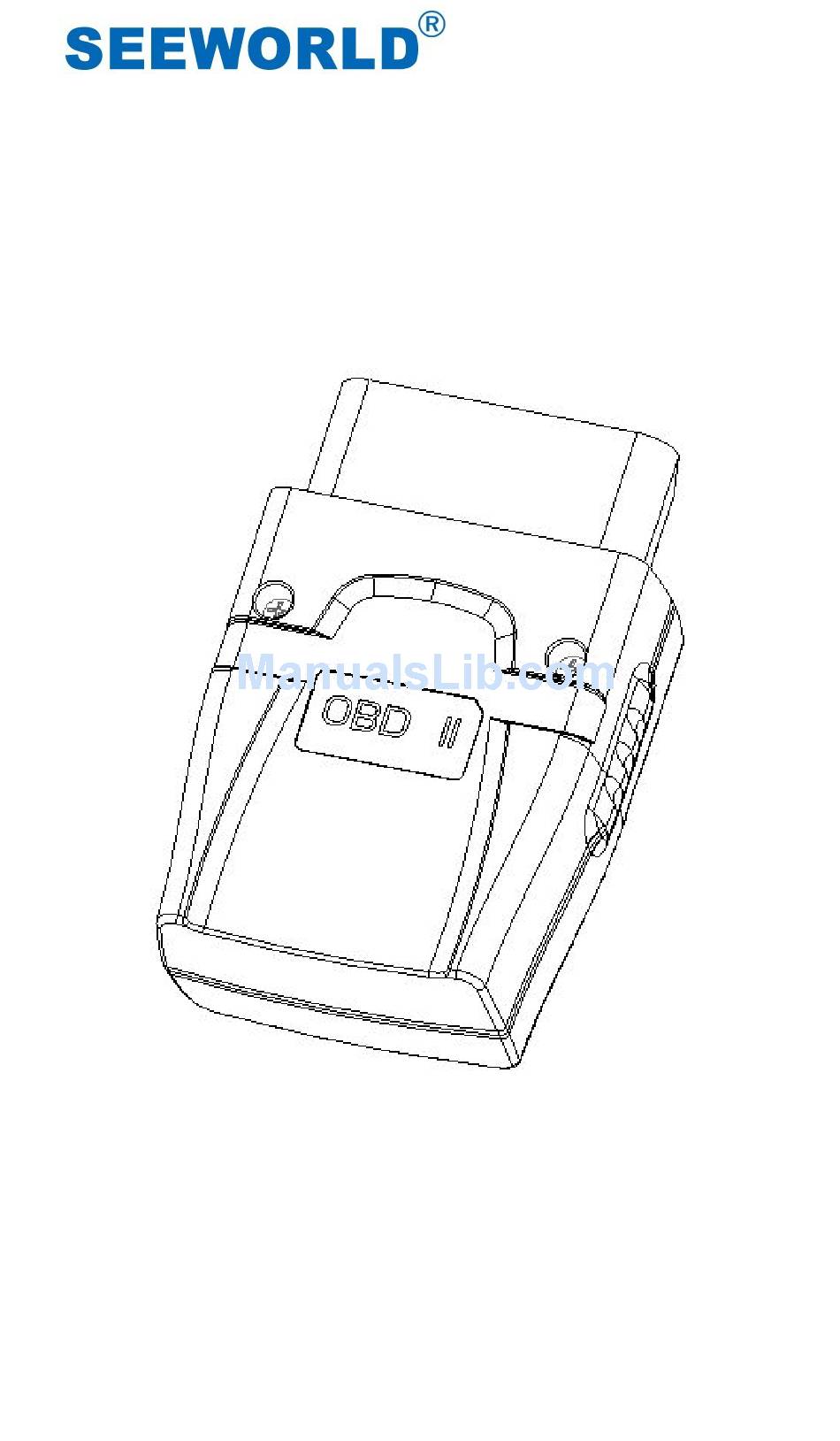

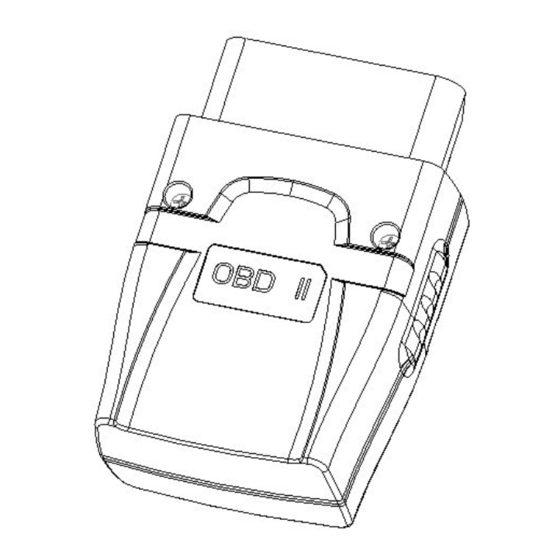

- Page 1 GPS+GSM+SMS/GPRS+OBD II S702 User Manual V1.0...
-
Page 2: User Manual
User Manual Welcome to use SEEWORLD GPS Tracking terminal， please read this manual carefully to install and operate the terminal exactly. This user manual is for reference only. If some contents and operation steps are inconsistent with those for the actual product, the latter will prevail. -
Page 3: Product Features
Ⅰ. Product Features Supports quad bands, ■ i.e. 850/900/1800/1900MHz, universal in the world. Easy to install, connect the OBD interface to ■ work. ■ Supports single positioning and feedbacks position via GPRS at setting times. ■ Supports vehicle positioning and tracking. Vehicle status and speed from OBD data is ■... - Page 4 -Top Front(Up side)- -Top Back- 2.2 Accessories（reference pictures）...
-
Page 5: Environment For Use
OBD II Extension Cable Optional accessory for the device, when the OBD interface is not very good and the GPS signal is poor, we can use an extension cable to strength GPS signal. Ⅲ. Environment for use 1. Limited working temperature：-20℃~80℃ 2. -
Page 6: Install The Sim Card
Standby Current <3mA Work current <120mA GPS positioning accuracy GSM positioning 100m accuracy GPS Frequency 1575MHz GSM Frequency 850/900/1800/1900MHz Hot/warm/cold start <3s，<15s，<60s time L*W*H ： 56.5 X 47 X 24.6 Dimensions (mm) Net Weight 45 g Ⅴ. Installation 5.1 Before Installation 5.1.1 Open the packing case, then check if the terminal is Ok and the accessories are intact, or please contact your dealer;... - Page 7 Pinch the sides of the front cover with one hand, the other hand gently open the back cover.
- Page 8 First use your thumb to press the SIM card cover, then push it outside to pull down the SIM card cover. ow you can insert your SIM card.
-
Page 9: Set Up The Terminal
Turn the installed SIM card holder door to its original position, gently push the lid with your fingers so it is locked. Close the back cover, use a screwdriver to packaging the two screws into the the back cover. Ⅵ. Set up the terminal Please refer to the Operation Commands Ⅶ. -
Page 10: Led Indicators
7.2 LED indicators The red LED flickers fast when the terminal is searching for GSM network, it flickers intermittently when the terminal has registered the GSM network successfully. The blue LED flickers fast when the terminal is searching for the GPS satellite signal, it flickers intermittently when the terminal when the terminal has searched the satellites and can be positioned. -
Page 11: Inquiry Position
7.22 Blue LED(indicates GPS signal state) Searching GPS Fast flicker Satellites Intermittently flicker GPS works normally 7.3 Inquiry position 7.3.1 Inquiry by SMS You can write a positioning SMS sending to the terminal when inquiring position, the terminal will reply position SMS or map link. The SMS commands please refer to the Operation Commands 7.3.2 Inquiry by position server... -
Page 12: Login The Position Server
Note: SMS alarm center number must be setted,Please refer to the Operation Commands Ⅷ. Login the position server If you have a legal ID on the position server, you can login the position server using browser. If not, please contact your dealer. Ask your dealer to provide an ID and the password. -
Page 13: Show Offline Status On The Position Server
3）Check the status of the LED indicators. If the terminal is OK, the red LED and the blue LED will intermittently flick. 4） Inquiry the parameters of terminal via commands and check the accuracy of the parameters. 9.2 Show offline status on the position server First check if the LED indicators are OK, if cannot check them, you can check the SIM card following... -
Page 14: Position Drift
9.3 Cannot position for a long time If the GPS is active, but the terminal cannot be positioned for long time, please check the terminal: 1）If the vehicle is in the place where there is no GPS signal. 2）The GSM and GPS signal may be weakened if the terminal is installed in the place with electromagnetic wave absorption material(such as metal blocks), special attention should be paid if... -
Page 15: Warranty Period
Ⅹ. Warranty rules 10.1 Special statement 1）Technology change, without notice. 2) If the color and appearance are inconsistent with those for the actual product, the latter will prevail. 3）Warranty card is only valid for the terminals with the following IMEI. 4）Please take care of the warranty card and show it with the original purchase receipts when enjoying the warranty service. -
Page 16: Customer's Information
5）Warranty certificate and product models do not match or warranty certificate be altered. 6）Damage caused by force majeure. Ⅻ. Operation Commands Function Format Note Center number is used for SMS Center alarm. CENTER,A,cen number If the setup is successful, the ter-number# setting terminal will reply:... - Page 17 保修卡资料 Name: 用户名 Tel: 电话 Add: 地址 Product Model: 机 型 IMEI Number ( IMEI 号 ) Selling Unit: 经销商 YY 年 MM 月 DD 日 Purchase Date: 购买日期...
