Visonic MR-4000 Installation Instructions

05
Flush Mount PIR Detector
,1752'8&7,21
The MR-4000 is the best flush mounted PIR for wired
installations, specially designed to fit into virtually any standard
single-gang electrical box. For existing construction, MR-4000
may be installed directly into the wall without requiring an
electrical box or special installation kit.
Superior Engineering Gives you These Added Features:
• Flush Mounting in a
Standard Electrical Box
• Ideal for Pre-Wired
Installations
• 145
S Ultra-Wide Angle
Coverage (Standard)
• Super RFI Protection
• Virtually Zero False Alarms
Maximum coverage: Maximum coverage:
10 m ( 30 ft) radius/145°
13.5 m (45 ft) radius/90
Application: provides
Application: general use -
the largest and widest
high density coverage.
room coverage for
general purpose
applications.
(Standard Lens)
Figure 2
Lens No.4 Ultra-Wide Lens No.1 Wide-Angle
63(&,),&$7,216

OPTICAL

Standard Lens: Lens No. 4 is the standard pattern supplied with
each MR-4000. It provides 34 beams in 3 detection layers, 145°
ultra-wide angle, maximum coverage area of 9 m (30 ft) radius.
Interchangeable Lenses (same as used with MR-3000 series):
Lens No. 1 - Wide-Angle 90
Lens No. 2 - Long-Range, 27 m x 3 m (90 ft x 10 ft.)
Lens No. 3 - Triple curtain, 9 m (30 ft.)
Lens No. 5 - Pet Alley, 90 S , 15 m (50 ft) radius.
Adjustment: Vert. calibration 0° to -12°. Hor. calibration ±7.5°

ELECTRICAL

Voltage: 9 to 16 VDC. Current: 25 mA.
Relay Output: Normally Closed (fail safe) contacts. 18-ohm
resistor in series with contacts. Rating - 0.1 A resistive /24 VDC.
Alarm-Period: 2-3 seconds.
DE1141
• Interchangeable Lenses
• 12
S Vertical and Horizontal
Adjustment
• Programmable Pulse
Counter
• Plug-In Wiring Connector
• Completely Sealed
Construction
Maximum coverage:
S 9 m (30 ft) at 90
Application: this lens provides 3
vertical "finger curtains" which
may be used as 3 individual traps
within the protected area. The
coverage of each curtain should
be walk-tested-separately.
NOTE! A wide dead zone exists
between the curtains.
Figure 3
S , 13.5 m (45 ft) radius.
MR-4000 provides a variety of
outstanding features including
adjustable pulse counter and
RFl protection up to 1000 MHz
to ensure the highest level of
reliability and
immunity along with added
flexibility.
User-friendly design includes
installation aids for precise
positioning
height.
S .
Figure 4
Lens No.3 Triple Curtain
Pulse Counter: Selectable 1 or 3 pulse operation.
Tamper Contacts (optional): Normally Closed. Rating - 0.5 A
resistive / 24 VDC.
LED: Switchable ON or OFF.
Detector: Dual-element low-noise pyroelectric sensor.
Mounting
Flush mounted into virtually any standard single-gang electrical
box or installed directly into the wall (without box).

ENVIRONMENTAL

Operating Temperature: -10
Storage Temperature: -20
RFl Protection: No alarm when tested on 21 different
frequencies from 20 to 1000 MHz with 124 Watt radio transmitter
at 3 m (10 ft) distance (equivalent to field strength of 20 V/m).
Installation Instructions
false alarm
at the desired

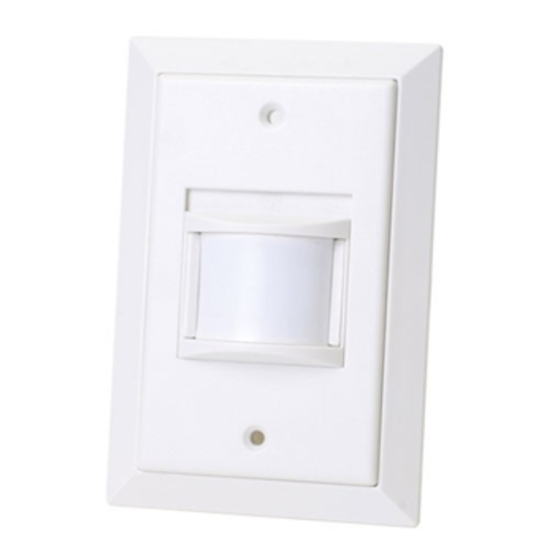

Figure 1. Model MR-4000
for Vertical Installation
Maximum coverage:
15 m (50 ft) radius 90 S .
Application: allows pets
to move freely, under
coverage pattern,
undetected.
Mounting Height:
0.8 to 1.5 m (2.5 to 5 ft.)
Figure 5
Lens No.5 Pet Alley
S C to 50
S C to 60 S C (-4
Maximum coverage:
27 x 3 m (90 x 10 ft)
Application: corridors and
long walls.
Mounting Height:
0.8 to 1.2 m (2.5 to 4 ft.)
Beam Splitting: By
dual-element detector that
creates two detection zones
for each segment in the lens
array, doubling the number
of detecting beams in the
coverage pattern.
Figure 6
Lens No. 2 Long-Range
S C (14 S F to 122 S F).
S F to 140 S F).
