XHS1-TY / MP-841
ZigBee Home Automation 1.2
Wireless Digital Pet Immune PIR Detector
1. INTRODUCTION
The XHS1-TY or MP-841 (pet immune) is a microprocessor-controlled wireless digital PIR detector supported by ZigBee HA 1.2.
The detector's features are as follows :
Up to 15 meters (49.2 ft)
•
Uniform Detection
•
White light immunity (Black mirror technology)
•
Enhanced Pet immunity up to 85Ibs (Target Specific Imaging™ (TSI) technology (patented)
•
Enhanced false alarm rejection (The advanced True Motion Recognition™ algorithm (patented)
•
No vertical adjustment is needed.
•
In normal mode, after detection, the detector goes to sleep to save battery power. It wakes again (reverts to the ready state) if there is no
•
subsequent detection throughout the following 2-minute period.
Temperature compensation.
•
Front and back tamper protection.
•
Black mirror technology provides excellent white light protection.
•
Elegantly styled, sturdy case.
•
D-306094 XHS1-TY / MP-841 FLAT PIR COMCAST

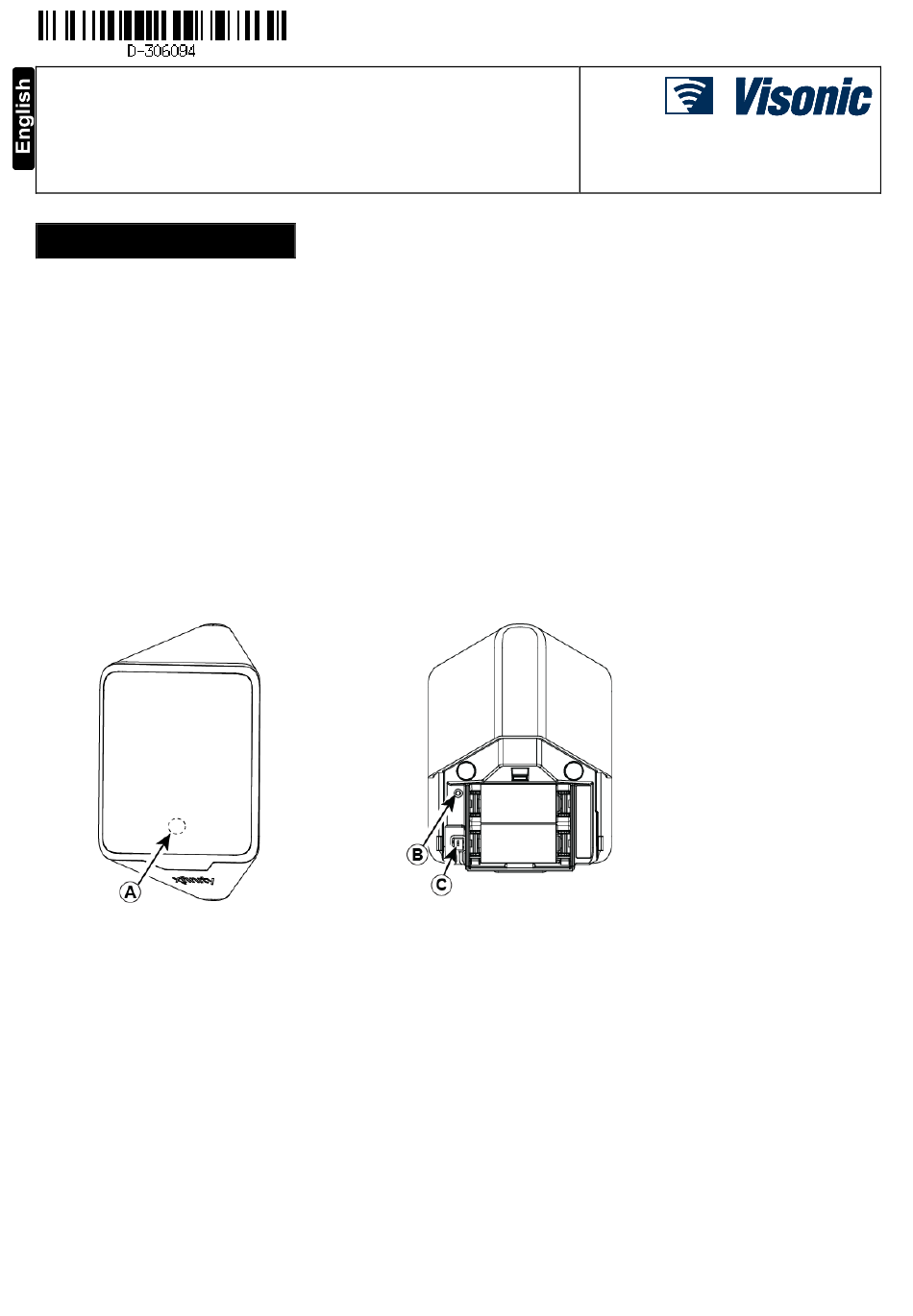

Figure 1 - MP-841
Installation Instructions
A. Red LED
B. Green LED
C. Tamper Switch
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XHS1-TY and is the answer not in the manual?

Questions and answers

Related Manuals for Visonic XHS1-TY

Summary of Contents for Visonic XHS1-TY

  • Page 1 ZigBee Home Automation 1.2 Wireless Digital Pet Immune PIR Detector 1. INTRODUCTION The XHS1-TY or MP-841 (pet immune) is a microprocessor-controlled wireless digital PIR detector supported by ZigBee HA 1.2. The detector’s features are as follows : Up to 15 meters (49.2 ft) •...

  • Page 2: Specifications

    Canada: RSS 210 PHYSICAL 83 x 61 x 42 mm (3.27 x 2.4 x 1.66”) Size (H x W x D) 90 g (3.17 oz) Weight (with battery) White Color U.S. Patents 5,693,943 6,211,522 PATENTS D-306094 XHS1-TY / MP-841 FLAT PIR COMCAST...

  • Page 3: General Guidance

    7. Mount on solid stable surface. Figure 2. General Guidelines 3.2 Installation Procedure Figure 4 – Bracket Mounting Figure 3 – Opening the Unit Figure 5 – Removing activation strip Figure 6 – Mounting Detector on Bracket D-306094 XHS1-TY / MP-841 FLAT PIR COMCAST...

  • Page 4: Replacing The Batteries

    3.5 Rebooting the Detector You can reboot the detector, as follows. 1. Remove the battery cover. 2. Press and release the tamper switch for 1 to 2 sec. (see Figure 1). 3. Close the battery cover. D-306094 XHS1-TY / MP-841 FLAT PIR COMCAST...

  • Page 5: Walk Testing

    Consult with your installer or system provider before you disable a zone. Disable the sensor zone (see the control panel user manual). Note that disabling a sensor zone lowers the overall security level of your system. D-306094 XHS1-TY / MP-841 FLAT PIR COMCAST...

  • Page 6: Special Comments

    The MP-840 is compatible with the RTTE requirements - Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 USA: CFR 47 Part 15 Canada: RSS 210 EMAIL: info@visonic.com INTERNET: www.visonic.com ©VISONIC LTD. 2016 XHS1-TY / MP-841 FLAT PIR COMCAST D-306094 ( Rev. 0, 04/16) D-306094 XHS1-TY / MP-841 FLAT PIR COMCAST...
