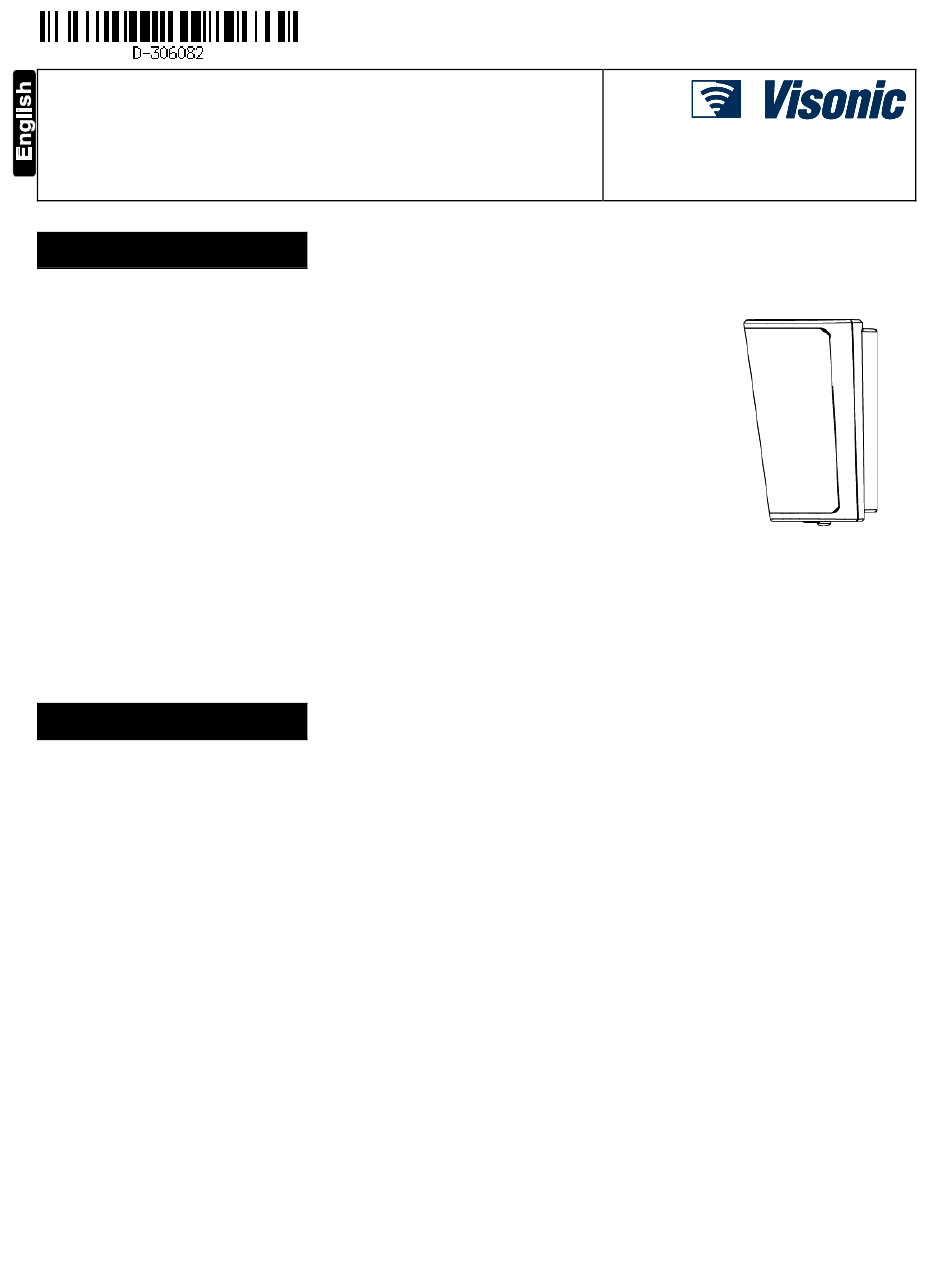

Visonic MP-840 K9-85 Installation Instructions Manual

MP-840 K9-85
ZigBee Home Automation 1.2
Wireless Digital Pet Immune PIR Detector
1. INTRODUCTION
The MP-840 K9-85 (pet immune) is a microprocessor-controlled wireless digital PIR detector supported by
H.A 1.2 panels using ZigBee Home Automation.
The detector's features are as follows:
• Fresnel and cylindrical lenses with uniform detection sensitivity throughout its operating range, up to 12
meters (39 ft).
• Target Specific Imaging™ (TSI) technology is used for distinction between humans and pets weighing
up to 38 kg (85lb).
• The advanced True Motion Recognition™ algorithm (patented) allows distinguishing between the true
motion of an intruder and any other disturbances which may cause false alarms.
• No vertical adjustment is needed.
• An on-board motion event jumper determines whether 1 or 2 consecutive motion events trigger an
alarm.
• After detection, the detector disarms itself to save battery power. It rearms (reverts to the ready state) if
there is no subsequent detection throughout the following 2-minute period.
• Very low current consumption.
• Microprocessor-controlled temperature compensation.
• White light protection.
• Front and back tamper protection.
Elegantly styled, sturdy case.
•
• This device supports temperature reporting according to the HA1.2's panel.
For UL installations: The detector is for use with UL listed control unit only. Pet immunity has not been
evaluated by UL.
2. SPECIFICATIONS
Detector Type
OPTICAL
Lens Data
Max. Coverage
Pet Immunity (pet version)
ELECTRICAL
Internal Battery
Nominal Battery Capacity
Battery Life (with LED on)
Low Voltage Signal
Battery Power Test
FUNCTIONAL
True Motion Event
Verification
Alarm Period
LED Switch
Rearm Timer
D-306082 MP-840 K9-85 PIR ZB
Dual element low-noise pyroelectric sensor
27 Fresnel "far" lenses (54 sensitivity "beams")
18 cylinder "mid" curtain lenses (36 sensitivity "curtains")
10 cylinder "close" curtain lenses (20 sensitivity "creep curtains")
12 x 12 m, (39 x 39 ft) / 90°
Up to 38 kg (85 lb)
3V Lithium battery, type CR-123A. For UL installations, use Panasonic and GP only
1450 mAh
5 years of typical use
Notes:
Inability to connect with wireless network, or wireless link quality no higher than 20% may
significantly reduce the expected battery life.
A fast low voltage signal is generated at or below 2.9V
Performed immediately upon battery insertion and periodically after every several hours.
The power supply is type C in accordance with EN 50131-6 Documentation – Clause 6.
2 position selector - 1 (OFF) or 2 (ON) motion events
2 seconds
LED Enable (red LED lights for 2 sec. upon Alarm detection)
LED Disable: No indication. (LED is always enabled during Walk-Test mode)
Rearms the detector 2 minutes after the last alarm. Timer disabled in the walk test mode
Installation Instructions

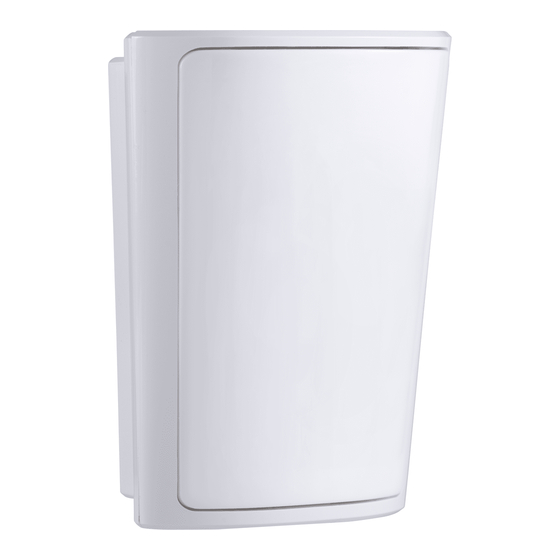

Figure 1: MP-840 K9-85
1
