Visonic MP-862 Installation Instructions Manual

D-307080
MP-862
Wireless ceiling PIR presence/security detector
1. Introduction
The MP-862 is a smart wireless ceiling PIR presence/security detector (selected mode) that creates a 360° coverage area to detect the move-
ment of intruders in indoor areas.
The detector has the following features.
Presence detection mode - active 15 minutes after installation (power-up).
l
Built-in link quality indicators eliminate the need for the installer to physically approach the control panel and reduce installation time.
l
Temperature and light measurement and reporting.
l
Tamper protection.
l
PowerG two-way Frequency Hopping Spread Spectrum FHSS-TDMA technology.
l
The Advanced True Motion Recognition™ algorithm (patented)distinguishes between the true motion of an intruder and any other disturbances
l
which may cause false alarms.
NOTE: For UL installations, the detector is for use with UL listed control units only.
E

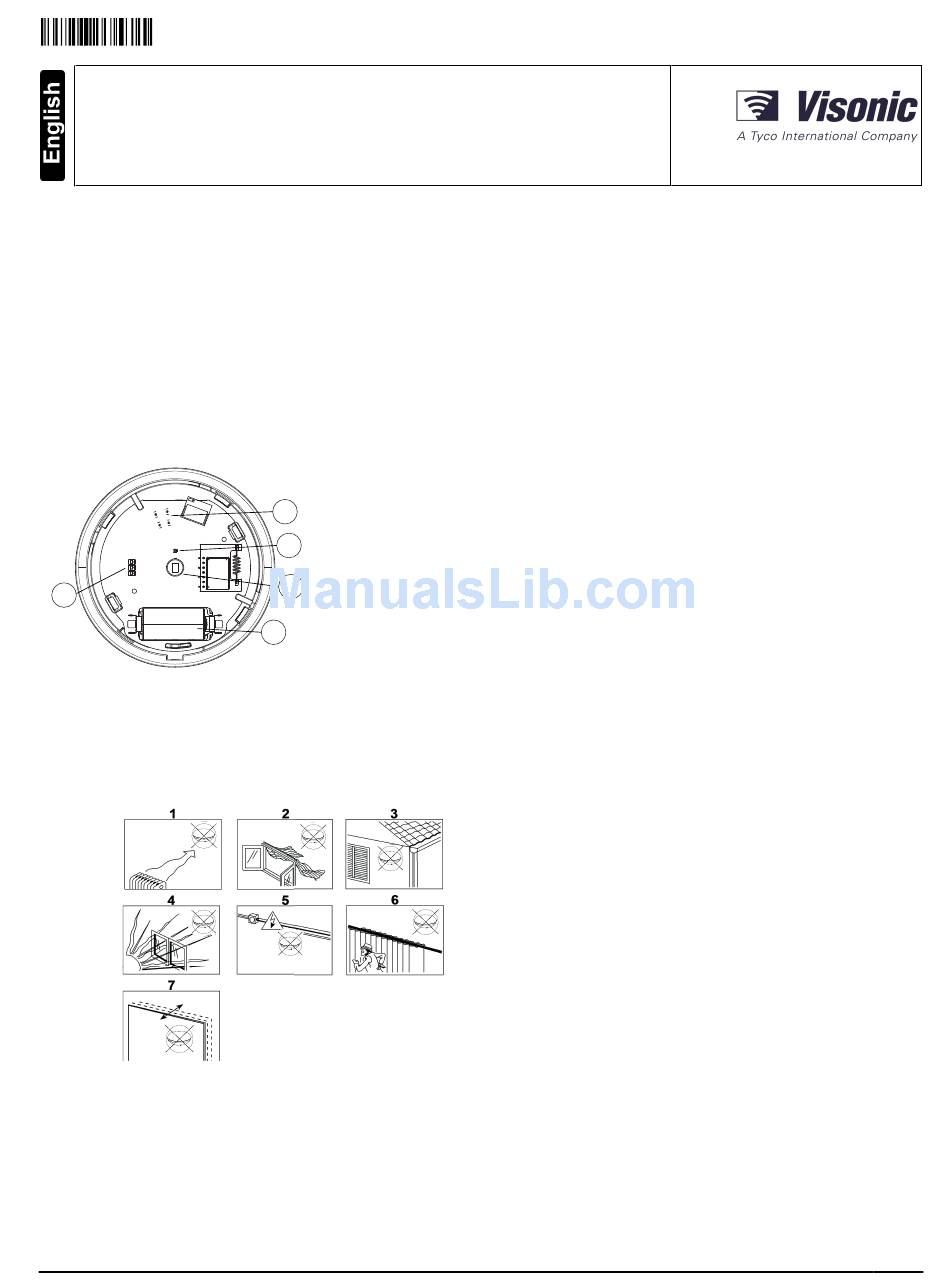

Figure 1. Internal view
2. Installation
2.1. Installation tips
Use the following as a guide for locating a suitable mounting location.
Figure 2. General Guidelines
WARNING! Do not partially or completely obscure the detector's field of view.
WARNING! To comply with FCC and ISED Canada RF exposure compliance requirements, the PIR detector should be located at a distance of
at least 20 cm from all persons during normal operation. The antennas used for this product must not be co-located or operated in conjunction
with any other antenna or transmitter.
NOTE: The MP-862 Wireless ceiling PIR presence/securitydetector shall be installed and used within an environment that provides the pollution
degree max 2 and overvoltages category II in NON HAZARDOUS LOCATIONS. The equipment is designed to be installed only by qualified ser-
vice persons.
D-307080 MP- 862 Installation Instructions
A Tamper protection
B Light sensor
A
C Pyro sensor
D Battery
B
E LEDs
C
D
1. Keep away from heat sources.
2. Do not expose to air drafts.
3. Do not install outdoors.
4. Avoid direct sunshine.
5. Do not install near high voltage electrical lines.
6. Do not install behind partitions.
7. Mount on a solid stable surface.
Installation Instructions
1
