Wireless Digital Pet Immune PIR Detector
1. INTRODUCTION
The MP-802 K9-85 PG2 (pet immune) is a microprocessor-controlled wireless digital PIR detector
supported by the PowerMaster alarm system using PowerG two-way communication protocol.
The detector's features are as follows:
Fresnel and cylindrical lenses with uniform detection sensitivity throughout its operating range, up to 12
l
meters (39 ft).
Target Specific Imaging™ (TSI) technology is used for distinction between humans and pets weighing up
l
to 38 kg (85lb).
The advanced True Motion Recognition™ algorithm (patented) allows distinguishing between the true
l
motion of an intruder and any other disturbances which may cause false alarms.
No vertical adjustment is needed.
l
Motion event counter determines whether 1 (high sensitivity) or 2 (low sensitivity) consecutive motion
l
events trigger an alarm.
Very low current consumption.
l
Microprocessor-controlled temperature compensation.
l
Front and back tamper protection.
l
The device supports temperature and light level reports according to the PowerG panel.
l
For UL installations: The detector is for use with UL listed control unit only. Pet immunity has not been
evaluated by UL.
.............

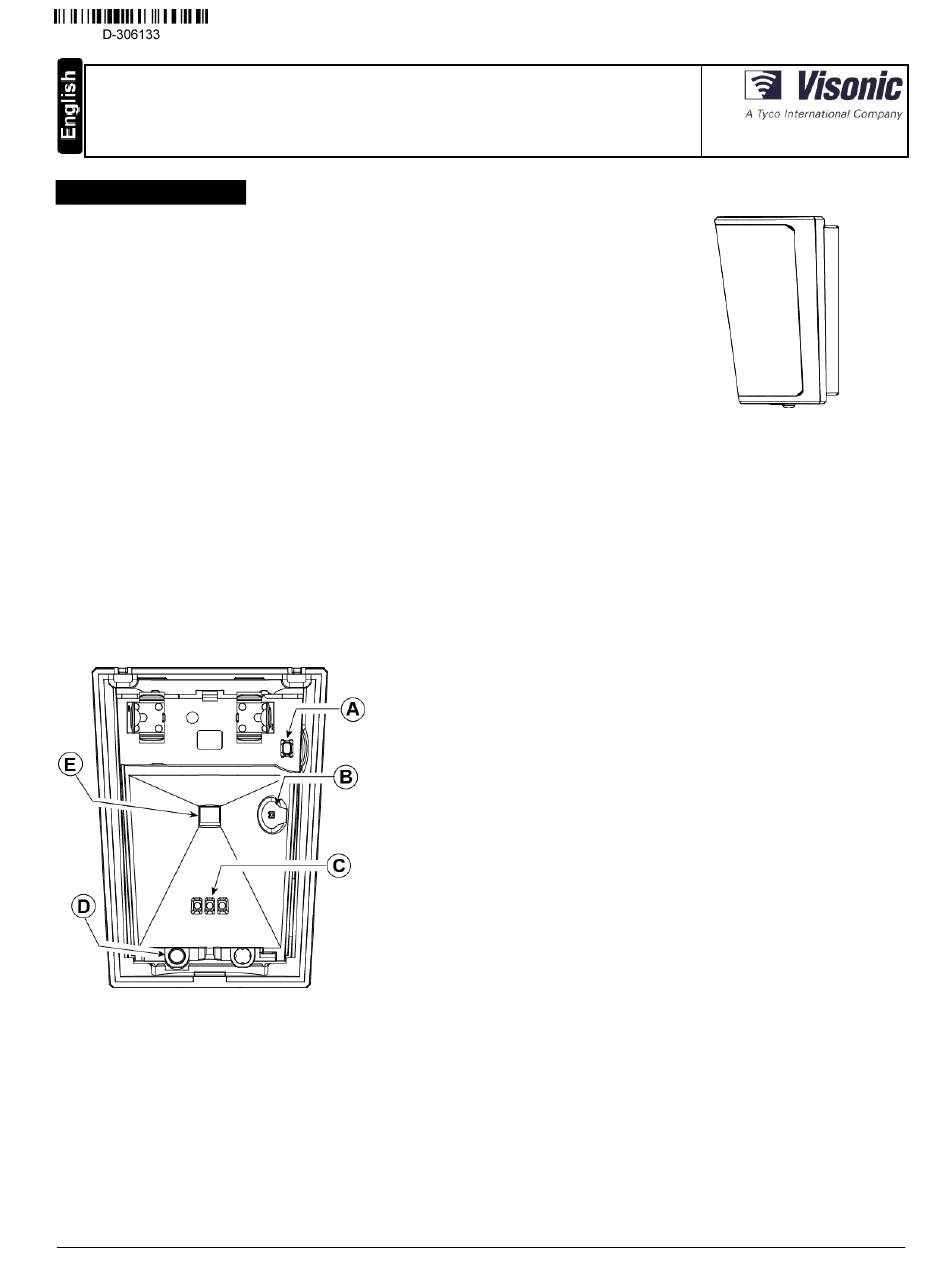

........Figure 2 - Internal View
D-306133 MP-802 K9-85 PG2 Installation Instructions
Installation Instructions

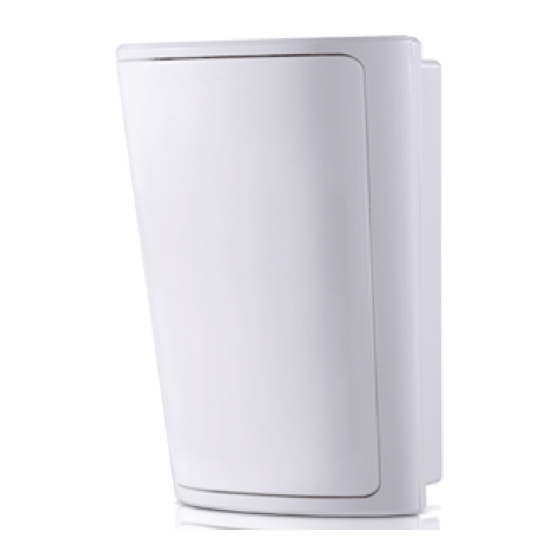

Figure 1: MP-802 K9-85 PG2
A. Enroll button
B. Light sensor
C. LEDs
D. Tamper switch
E. PIR sensor
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Visonic MP-802 K9-85 PG2
Summary of Contents for Visonic MP-802 K9-85 PG2
- Page 1 Wireless Digital Pet Immune PIR Detector Installation Instructions 1. INTRODUCTION The MP-802 K9-85 PG2 (pet immune) is a microprocessor-controlled wireless digital PIR detector supported by the PowerMaster alarm system using PowerG two-way communication protocol. The detector's features are as follows: Fresnel and cylindrical lenses with uniform detection sensitivity throughout its operating range, up to 12 meters (39 ft).
-
Page 2: General Guidance
MP-802 K9-85 shall be installed in accordance with the Standard for Installation and Classification of Burglar and Holdup Alarm Systems, UL 681. Caution! Risk of explosion if battery is replaced by an incorrect type. Dispose of used battery according to the manufacturer's instructions. D-306133 MP-802 K9-85 PG2 Installation Instructions... - Page 3 Select “ADD NEW DEVICES” Option – See Note [1] ↓ MODIFY DEVICES Select “ADD NEW DEVICES” Option – See Note [1] Enroll the device or enter the ENROLL NOW or ENTR ID:XXX-XXXX device ID D-306133 MP-802 K9-85 PG2 Installation Instructions...
-
Page 4: Temperature Display
2. Replace the cover to return the tamper switch to its normal (undisturbed) position, and then secure the front cover to the base with the case closure screw. 3. The MP-802 K9-85 PG2 detector will enter a 2 min. stability period. During this time the red LED blinks. D-306133 MP-802 K9-85 PG2 Installation Instructions... -
Page 5: Compliance With Standards
EN 300220, EN 301489, EN 60950-1, EN 50130-4, EN 50131-1, EN 50131-2-2 Grade 2 Class II, EN 50130-5, EN 50131-6 Type C The MP-802 K9-85 PG2 is suitable for use in systems installed to conform to PD6662:2010 at Grade 2 and environmental CLASS II. DD243 and BS8243. -
Page 6: Special Comments
For information regarding the recycling of this product you must contact the company from which you originally purchased it. If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste. Directive 2002/96/EC Waste Electrical and Electronic Equipment. D-306133 MP-802 K9-85 PG2 Installation Instructions... -
Page 7: Specifications
Surface or corner ENVIRONMENTAL RF Immunity 20 V/m up to 1000 MHz, 10 V/m up to 2700 MHz Operating Temperatures -10°C to 50°C (14°F to 122°F). Note: UL verified operation range 0°C to 49°C only. D-306133 MP-802 K9-85 PG2 Installation Instructions... -
Page 8: Warranty
U.S. Patents 5,693,943 ● 6,211,522 WARRANTY Visonic Limited (the “Manufacturer") warrants this product only (the "Product") to the original purchaser only (the However, if the Manufacturer is held liable, whether directlyor indirectly, for anylossor damage arising under this limited “Purchaser”) against defective workmanship and materialsunder normaluse of the Product for a period of twelve (12) warranty, THE MANUFACTURER’S MAXIMUM LIABILITY (IF ANY) SHALL NOT IN ANY CASE EXCEED THE...
