Tools and Parts

Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools Needed
Phillips screwdriver
Flat-blade screwdriver
Measuring tape
Level
Parts Needed
A UL listed or CSA approved conduit connector
UL listed wire connectors
Parts Needed - Flush Installation
W10752697A Stainless steel flush installation kit for 30"
(76.2 cm) models
W10752698A Stainless steel flush installation kit for 27"
(68.6 cm) models
To order, see the "Assistance or Service" section of the Use and
Care Guide.
Parts Supplied
A
A. Spacer bars (2)
B. Bottom vent (1)
³⁄₈
C.
" hex-head washer screws (4)
D.¾" pan-head screws (4)
Check local codes. Check existing electrical supply. See
"Electrical Requirements."
It is recommended that all electrical connections be made by a
licensed, qualified electrical installer.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.
Cabinet opening dimensions that are shown must be used.
Given dimensions provide minimum clearance with
microwave oven.
Recessed installation area must provide complete enclosure
around the recessed portion of the microwave oven.
Grounded electrical supply is required. See "Electrical
Requirements" section.
Electrical supply junction box should be located 3" (7.6 cm)
maximum below the support surface when the microwave
oven is installed in a wall cabinet. A 1" (2.5 cm) minimum
diameter hole should have been drilled in the left rear corner
of the support surface to pass the appliance cable through to
the junction box.
2

INSTALLATION REQUIREMENTS

Drill (for wall cabinet installations)
¹⁄₈" (3 mm) drill bit (for wall
cabinet installations)
1" (2.5 cm) drill bit (for wall
cabinet installations)
C
D
B
For installation above single built-in oven, the junction box
must located inside upper cabinet.
If you are installing the junction box on rear wall behind the
microwave oven, the junction box must be recessed and
located in the upper or lower right or left corner of the
cabinet; otherwise, the microwave oven will not fit into the
cabinet opening.
Microwave oven support surface must be solid, level and
flush with bottom of cabinet cutout. Floor must be able to
support a weight of 90 lbs (41.0 kg).
IMPORTANT: To avoid damage to your cabinets, check with your
builder or cabinet supplier to make sure that the materials used
will not discolor, delaminate or sustain other damage. This oven
has been designed in accordance with the requirements of UL
and CSA International and complies with the maximum allowable
wood cabinet temperatures of 194°F (90°C).

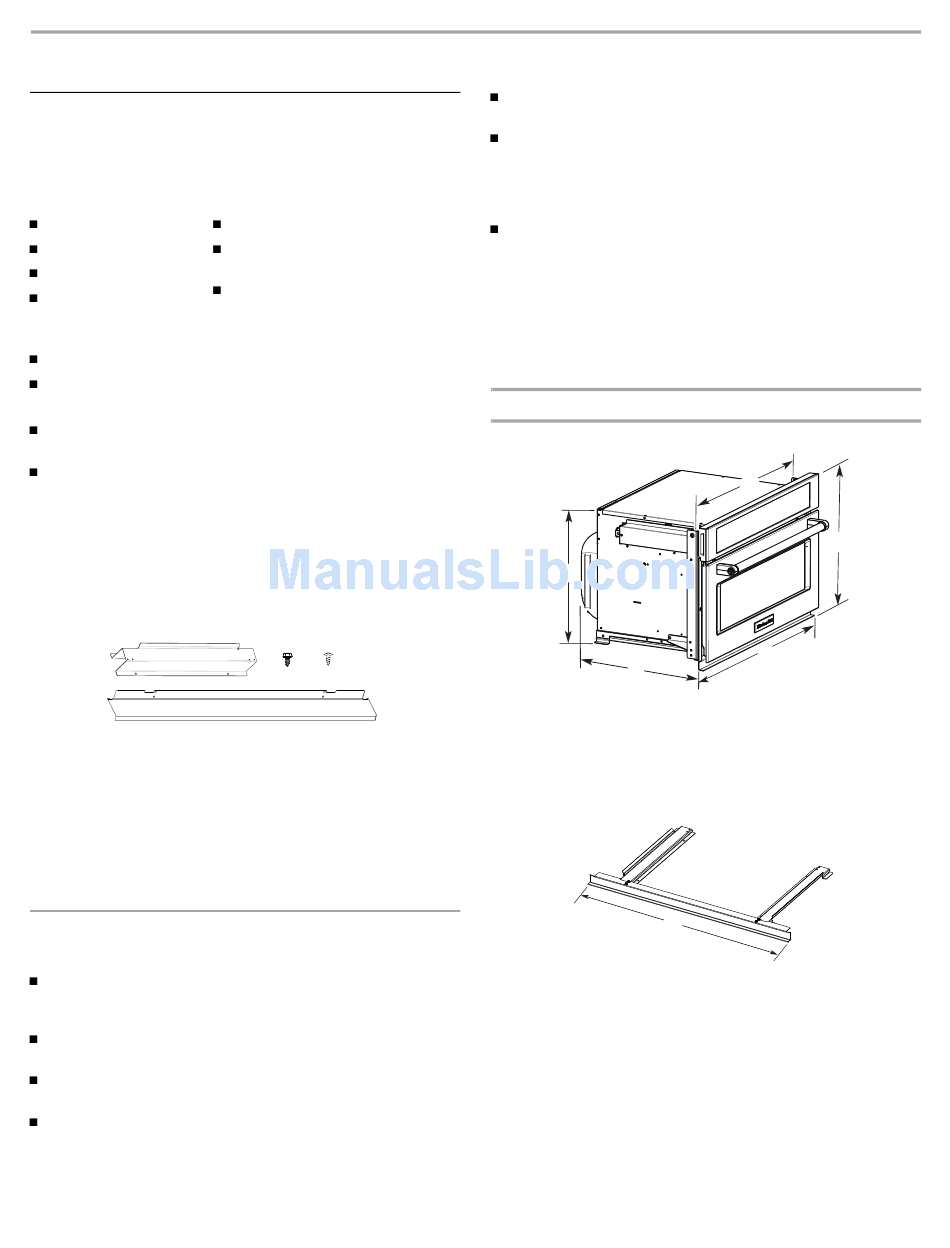

Product Dimensions
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
E
D
27" (68.6 cm) Models
³⁄₈
A. 25
" (64.5 cm)
8⁵⁄₈
B. 1
" (47.3 cm) overall height
³⁄₄
C. 26
" (68.0 cm) overall width
¹⁄₂
D. 21
" (54.6 cm)
³⁄₈
E. 17
" (44.1 cm)
27" (68.6 cm) and 30" (76.2 cm) Microwave Oven Spacer Kit
A
27" (68.6 cm) Models
³⁄₄
A. 26
" (67.9 cm) overall width
NOTE: The microwave oven spacer kit will allow the microwave
oven to be installed in a 17³⁄₈" to 17³⁄₄" (44.1 to 45.1 cm)
maximum cutout height.
A microwave oven spacer kit is available from your dealer that will
allow the microwave oven to be installed in a 19" to 19¹³⁄₁₆"
(48.3 to 50.2 cm) maximum cutout height. Match the oven size to
the following kits:
27" (68.6 cm) Stainless Steel - Model W10469901
30" (76.2 cm) Stainless Steel - Model W10469903
To order, see the "Assistance or Service" section of the Use and
Care Guide.
A
B
C
30" (76.2 cm) Models
³⁄₈
A. 28
" (72.1 cm)
8⁵⁄₈
B. 1
" (47.3 cm) overall height
³⁄₄
C. 29
" (75.6 cm) overall width
¹⁄₂
D. 21
" (54.6 cm)
³⁄₈
E. 17
" (44.1 cm)
30" (76.2 cm) Models
³⁄₄
A. 29
" (75.6 cm) overall width
